Main Menu 2; Menu Tree - Swegon COMPACT Air Installation And Maintenance Instructions Manual

7 MAIN
MENU 2

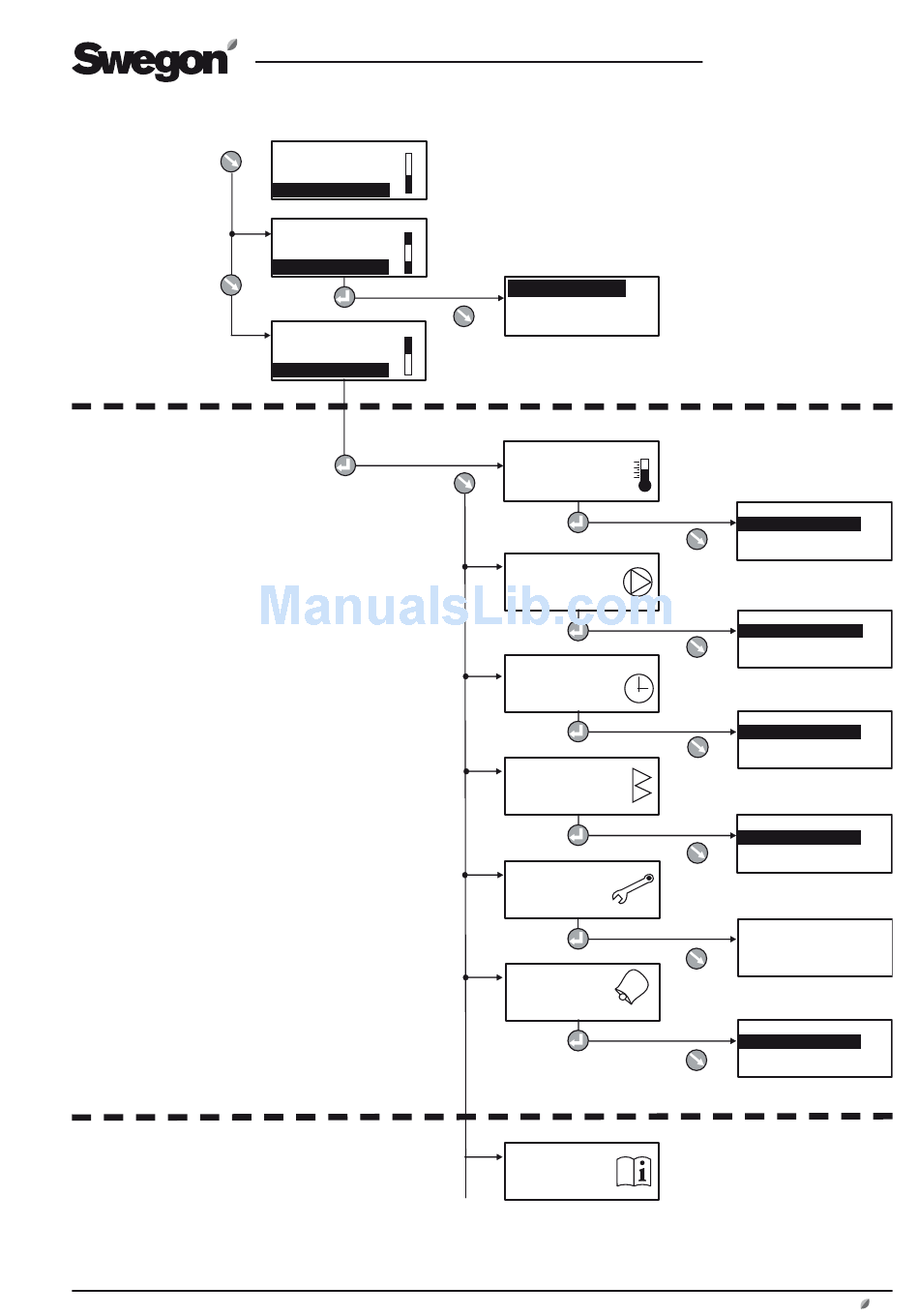

7.1 Menu tree

USER LEVEL
(Section 8)
INSTALLATION LEVEL
(Section 9-17)
Registered design. The company reserves the right to make design changes without prior notice.
COMPACT-A TUE 14:40
STOP
MANUAL OPERATION
STOP?
COMPACT-A TUE 14:40
MANUAL OPERATION
STOP?
MAN/AUTO.OP
COMPACT-A TUE 14:40
STOP?
MAN/AUTO.OP
SETTINGS
Important! The appearance of
the menus varies depending
on the type of air handling
unit and functions selected.
AUTO OPERATION
MANUAL LOW SPEED
MANUAL HIGH SPEED
TEMPERATURE
FLOW/PRESSURE
SWITCH CLOCK
FILTERS
AIR ADJUSTMENT
ALARMS
INSTALLATION
GB.COMPACTAH.101110
*TEMPERATURE*
READINGS
SETTINGS
*FLOW/PRESSURE*
READINGS
SETTINGS
*SWITCH CLOCK*
TIME/DATE
TIME CHANNEL
YEAR CHANNEL
*FILTERS*
READINGS
CALIBRATION
*AIR ADJUSTMENT*
LOCKS FAN SPEED
TIME SETTING: 0 h
*ALARMS*
ACTIVE ALARMS
ALARM HISTORY
