3.12 To Adjust the Supply Air Discs

The positions of the supply air discs can be adjusted after
dismantling the front grille of the lower section of the
unit. Use a 6 mm Allen key. The screws are located within
the outer holes in the corners.
When the front grille has been removed, the air discharge
direction of the front discs can be adjusted from the
backside of the front grille. Turn the discs by hand to the
appropriate setting.
The side discs can now also be adjusted without any fur-
ther dismantling. The discs are accessible by putting your
hand inside the air handling unit.

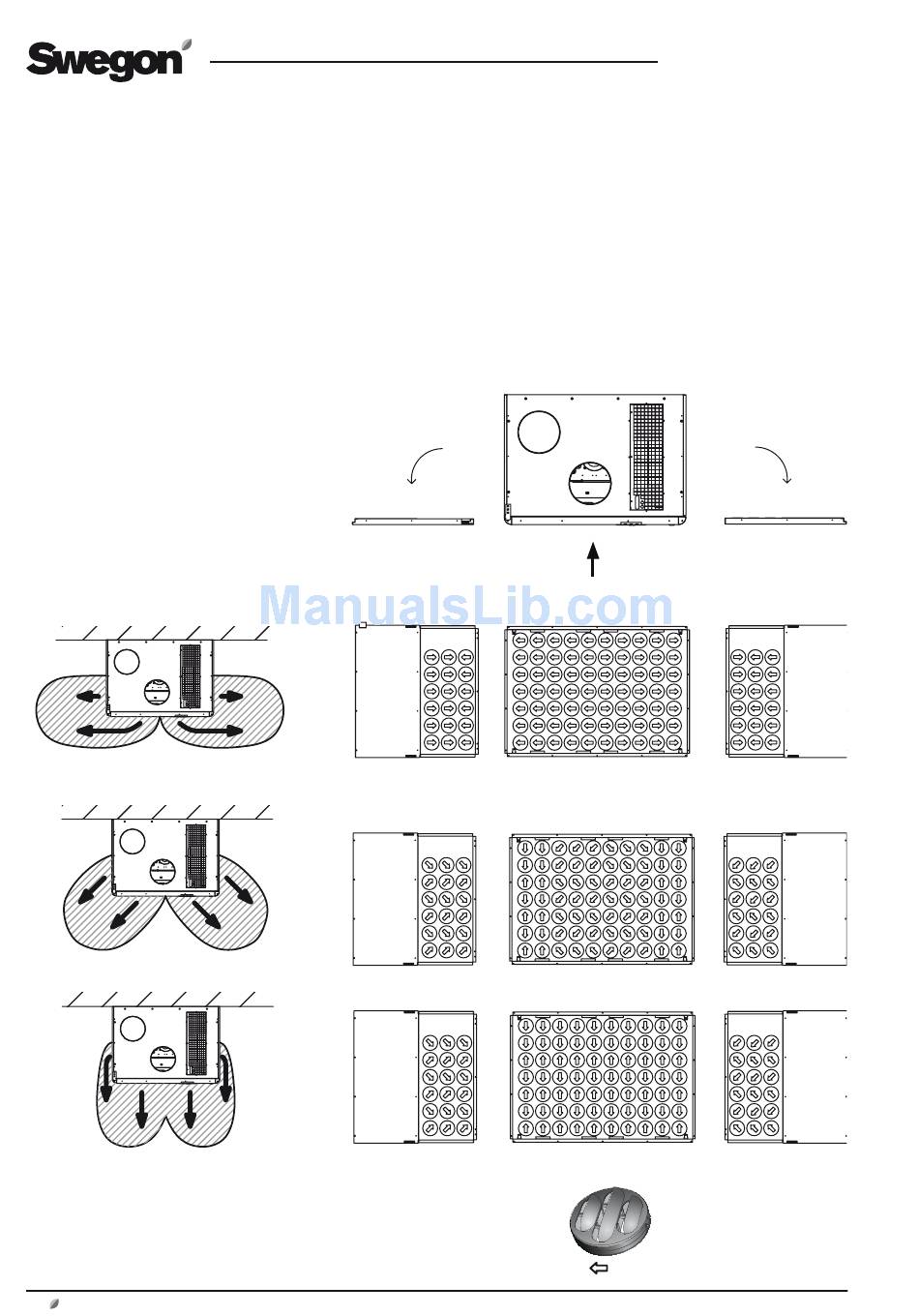

Distribution pattern
Discs in factory-preset position
Example 1
Example 2
10 www.swegon.com
The factory-preset supply air distribution pattern and two
examples of possible modifi ed distribution patterns are
shown below.
Since each disc is individually adjustable, the possibilities
for modifying the air distribution pattern are practically
endless.
Registered design. The company reserves the right to make design changes without prior notice.
GB.COMPACTAH.101110
Air handling unit viewed from above.
The front discs and side discs are
shown from this view below.
Front discs and side discs
The arrows shown above
indicate the position of
each disc.
