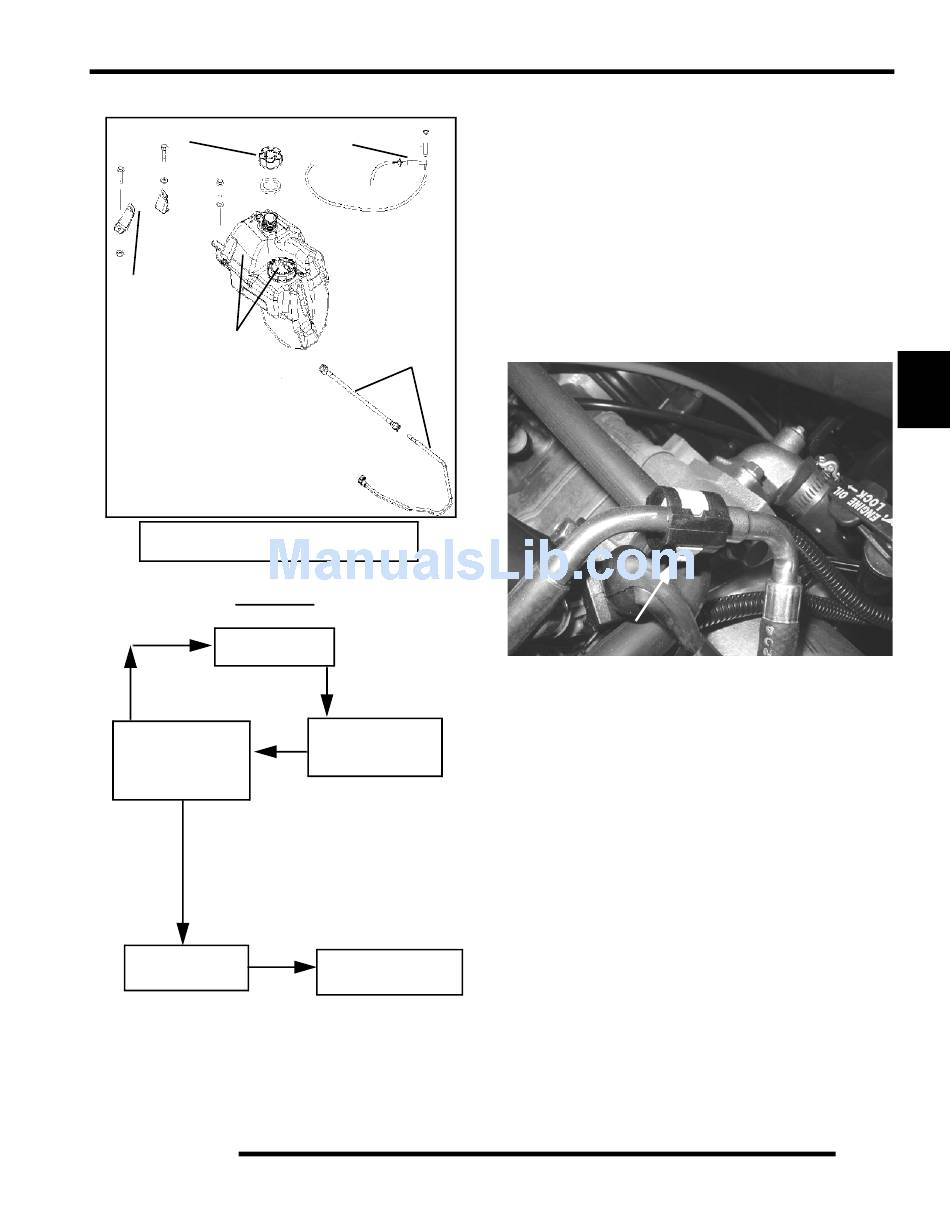

Fuel Tank Assembly

1
3
4
1. Cap 2. Tank Vent 3. Tank Mount
4. Fuel Pump/Tank Assembly 5. Fuel Lines
Fuel Flow
Fuel Tank
* Fuel Pump /
Pressure Regulator
Unit
Fuel Supply Rail
* component located in fuel tank and is non-serviceable

Fuel Lines - Quick Connect

Sportsman 700/800 EFI models use quick connect fuel lines.
2
Refer to the steps below for fuel line removal.
1.
2.
3.
4.
5
* Fuel Filter
(30 micron)
Injectors
FUEL INJECTION
Place a shop towel around the fuel line to catch any
dripping fuel. Squeeze the connector tabs together and
push the locking slide back.
Pull on the fuel line for removal.
To install the line, verify the connector and fuel tank nipple
are clean and free of debris.
Snap the fuel line back over the nipple and slide the locking
mechanism back into place. Verify the connector tabs snap
back into place.
Squeeze Connector Tabs
4
4.7
