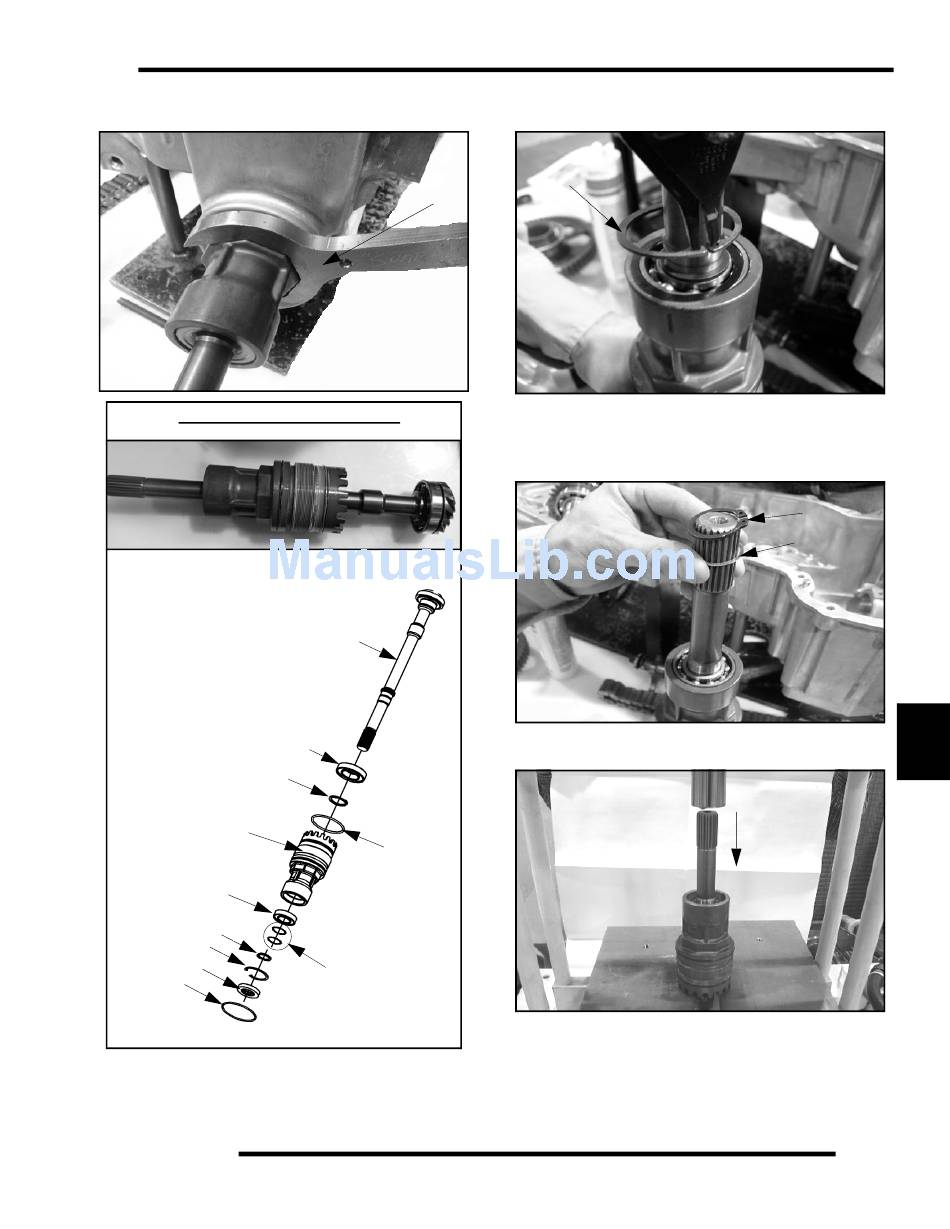

29. Use a 2 3/8" wrench to loosen and remove the front drive
shaft snorkel tube (11).
Front Drive Snorkel Assembly
A. O-ring
B. Seal
C. Retaining Ring
D. Retaining Ring
E. Spacer
F. Ball Bearing
G. Snorkel tube
H. Retaining Ring
I. Ball Bearing
J. Snorkel Shaft
G
F
D
C
B
A
11
J
I
H
A
E
X2 / Touring Transmission
30. If needed, remove the seal from the front of the snorkel
tube. Remove the snap ring (12).
12
31. Remove the second snap ring (13) and spacer (14) from the
snorkel shaft.
NOTE: Shim may or may not be present. Depending on
input shaft tolerance.
32. To remove the snorkel shaft from the snorkel tube, use a
press to press the snorkel shaft out.
13
14
8
8.31
