Outdoor ptz camera dvr / camera communication system series
Table of Contents

Advertisement

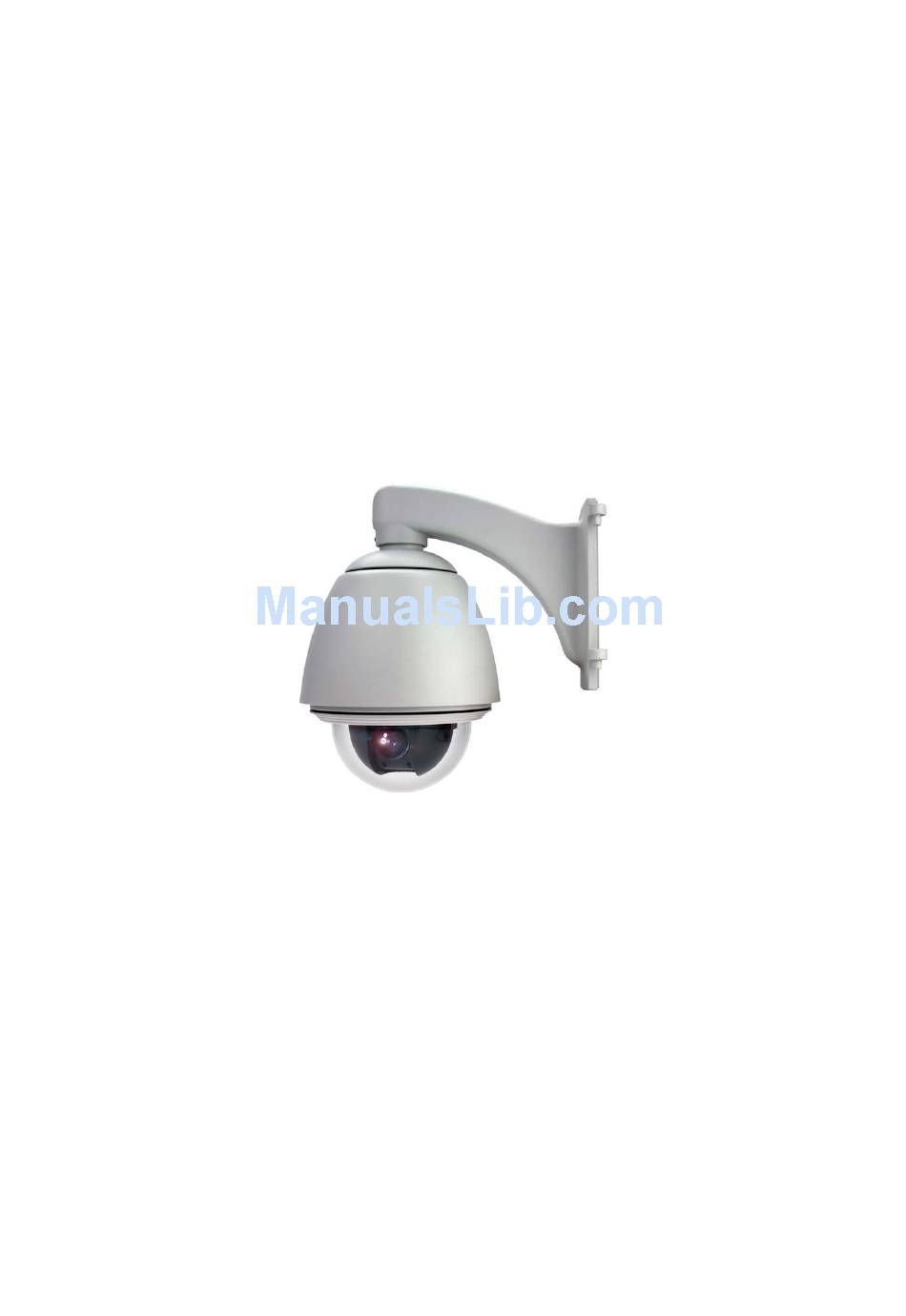

351Z

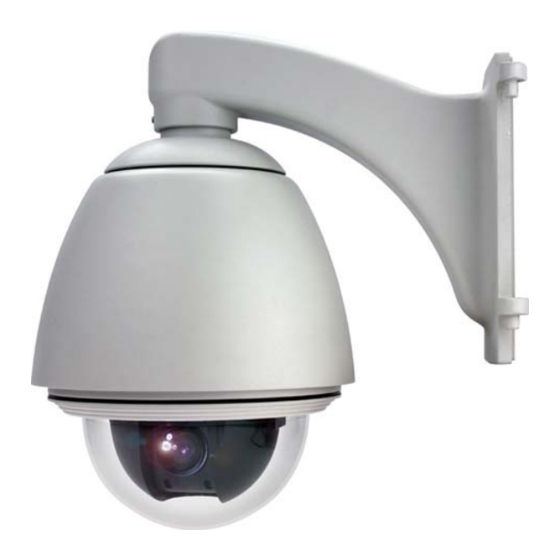

Outdoor PTZ Camera
D
C
C
S
VR /
amera
ommunication
ystem Series
Please read instructions thoroughly before operation and retain it for future reference.
The image shown above may differ from the actual product appearance.
K584_585_Manual_V0.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVK584ZN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Avtech AVK584ZN

  • Page 1 351Z Outdoor PTZ Camera VR / amera ommunication ystem Series Please read instructions thoroughly before operation and retain it for future reference. The image shown above may differ from the actual product appearance. K584_585_Manual_V0.9...
  • Page 2: About This Document

    IMPORTANT SAFEGUARD All lead-free products offered by the company comply with the requirements of the European law on the Restriction of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly “lead-free” and without the hazardous substances cited in the directive. The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected separately at the product end-of-life.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. INTRODUCTION ........................1 1.1 Features................................1 1.2 Package Contents ............................1 2. INSTALLATION AND SETUP ....................2 2.1 Installation................................2 2.2 Connection...............................4 2.2.1 Connecting to Keyboard Controller (Optional) ..................4 2.2.2 Connecting to DVR ..........................5 3. AUTO TRACKING ........................8 3.1 Overview................................8 3.2 Setup ................................8 3.3 Activation .................................8...
  • Page 4 6.8 ID Code Display.............................16 6.8.1 On / Off ..............................16 6.9 Tilt Limit................................16 6.9.1 On / Off ..............................17 7. MAIN MENU – MODE ......................18 7.1 Reset Default ..............................19 7.2 Pan / Tilt Speed..............................19 7.3 Preset Setup ..............................19 7.3.1 Set the Preset Points ...........................19 7.3.2 Factory Default Preset Points ......................19 7.3.3 Add New Preset Points ........................20 7.3.4 Set Duration Time of the Preset Points....................20...
  • Page 5: Introduction

    INTRODUCTION 1. INTRODUCTION 1.1 Features Supports DVR / Camera Communication System (DCCS) Technology ‧ There’s no need to additionally connect RS485 control wires for camera control because the control signals can be transferred by coaxial cables directly when your DVR supports DCCS technology. ‧...
  • Page 6: Installation And Setup

    INSTALLATION AND SETUP 2. INSTALLATION AND SETUP For the installation and connection of this speed dome camera, please check with qualified service personnel or installer. 2.1 Installation...
  • Page 7 INSTALLATION AND SETUP...
  • Page 8: Connection

    INSTALLATION AND SETUP 2.2 Connection 2.2.1 Connecting to Keyboard Controller (Optional) The optional peripheral (keyboard controller) allows you to accurately control the pan / tilt / zoom movement for a speed dome camera with the convenient 3D joystick and functional keypad design. Note: It’s highly recommended to purchase this device to work with your speed dome camera for accurate control.
  • Page 9: Connecting To Dvr

    INSTALLATION AND SETUP STEP 5: On the touch panel of the keyboard controller, click “Conf” to enter the configuration page, and click (P.T.Z) to make related settings as follows. ● RATE : Check and set the baud rate as 9600. MODE : Choose the proper camera protocol depending on the camera type.
  • Page 10 INSTALLATION AND SETUP c) In “CONNECTION”, it shows the examining result for DCCS signal transmission between the DVR and camera. The message is as follows: MESSAGE SHOWN MEANING CHECKING The DVR is checking the DCCS signal transmission between the DVR and camera. The signal transmission is fine and the DCCS function works properly.
  • Page 11 INSTALLATION AND SETUP Note: For details about PIN configurations, please refer to the DVR user manual. STEP 5: Set the speed dome camera at the DVR side. Go to the “REMOTE” menu to set the speed dome camera. a) Select the device to “PTZ”. b) Set the ID of the camera to 001.
  • Page 12: Auto Tracking

    AUTO TRACKING 3. AUTO TRACKING 3.1 Overview The camera will automatically aim and follow the largest movement in the monitoring view, making the camera pan (max. 360 ) & tilt (max. 90 ) within: (1) the camera's pre-defined surveillance area; (2) the pre-defined tracking timeout.
  • Page 13: Quick Menu Guide

    QUICK MENU GUIDE 4. QUICK MENU GUIDE 4.1 Menu Configuration Setup menu is shown as below. You can customize the speed dome camera to your own requirements by setting up the respective items in these menus. For details, please refer to the corresponding pages. White Balance Auto, Indoor 1, Indoor 2, Sun, Cloudy 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000,...
  • Page 14: Quick Programming Guide

    QUICK MENU GUIDE 4.2 Quick Programming Guide The optional keyboard controller can be used to control this speed dome camera. Note: Please enter the camera control mode of the keyboard controller first. Press “ ” to enter the camera control mode. Or use the stylus to click the speed dome camera icon on the touch panel to enter the camera control mode.
  • Page 15: Main Menu - Camera

    MAIN MENU – CAMERA 5. MAIN MENU – CAMERA Note: The following description assumes that users are using our brand’s keyboard controller to control the speed dome camera. For details about using the DVR or other brand’s keyboard controller to control the speed dome camera, please refer to “APPENDIX 3 CAMERA CONTROL VIA OUR DVR”...
  • Page 16: White Balance

    MAIN MENU – CAMERA 5.1 White Balance 5.2.1 Shutter Speed Options The white balance function processes the current NTSC: 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 image to retain color balance over a color temperature PAL: 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 range.
  • Page 17: Iris

    MAIN MENU – CAMERA 5.4 IRIS 5.6 Sharpness Auto sharpness enhances the clarity of image Auto iris is the lens function that automatically detail by adjusting the aperture and sharpening the opens and closes the iris in response to the changing edges in the pictures.
  • Page 18: Main Menu - Tools

    MAIN MENU – TOOLS 6. MAIN MENU – TOOLS Note: The following description assumes that users are using our brand’s keyboard controller to control the speed dome camera. For details about using the DVR or other brand’s keyboard controller to control the speed dome camera, please refer to “APPENDIX 3 CAMERA CONTROL VIA OUR DVR”...
  • Page 19: Title Name

    MAIN MENU – TOOLS 6.1 Title Name 6.3 Pan / Tilt Angle The title name is the label used to identify the The numeric value of the pan and tilt angle can be camera viewed on the monitor. Up to 10 characters can displayed on the monitor.
  • Page 20: Zoom Ratio

    MAIN MENU – TOOLS 6.5 Zoom Ratio 6.7 ID Code No. The zoom ratio can be easily checked on this The camera ID code number is always 1. zoom ratio graph. Title Setting Title Setting Title Position Title Position Pan / Tilt Angle Pan / Tilt Angle Pan / Tilt Graph Pan / Tilt Graph...
  • Page 21: On / Off

    MAIN MENU – TOOLS camera to prevent the camera view being slightly covered. Title Setting Title Position Pan / Tilt Angle Pan / Tilt Graph Zoom Ratio Focus Window ID Code No. ID Code Display Tilt Limit 6.9.1 On / Off Select “On”...
  • Page 22: Main Menu - Mode

    MAIN MENU – MODE 7. MAIN MENU – MODE Note: The following description assumes that users are using our brand’s keyboard controller to control the speed dome camera. For details about using the DVR or other brand’s keyboard controller to control the speed dome camera, please refer to “APPENDIX 3 CAMERA CONTROL VIA OUR DVR”...
  • Page 23: Reset Default

    MAIN MENU – MODE 7.1 Reset Default 7.3 Preset Setup To restore all camera settings to the factory default The preset point setting is used to specify the camera position (pan and tilt) and the lens zoom setting. settings, move to “Set”, and press to confirm.
  • Page 24: Add New Preset Points

    MAIN MENU – MODE Factory-default preset point 2: 7.3.4 Set Duration Time of the Preset Points Move to “ ”, and use the up / down key to select the duration second. For example, set the duration second as 7, and you will see the similar window as follows.
  • Page 25: Tracking Setup

    MAIN MENU – MODE 3) Move to “EXIT” and press to leave the setting 7.4 Tracking Setup page. The speed dome camera will automatically aim and follow the largest movement in the monitoring view, making the camera pan (max. 360º) & tilt (max. 90º) within: (1) the camera's pre-defined surveillance area / (2) the pre-defined tracking timeout.
  • Page 26: Home Position

    MAIN MENU – MODE 7.5 Home Position 7.6 Auto Focus An auto mode is a memorized, repeating series of pan, There two types of the auto focus mode. You can tilt and zoom. In the home position setting mode, you select the mode depending on your need.
  • Page 27: Select The Calibrating Result

    MAIN MENU – MODE 7.9 Auto Mode Reset Default Start Select to set the mode when the “Auto” function of Pan / Tilt Speed this camera is activated. Preset Setup Tracking Setup Home Position Reset Default Track Auto Focus Pan / Tilt Speed Calibration Preset Setup Seq.
  • Page 28: Main Menu - Exit

    MAIN MENU – EXIT 8. MAIN MENU – EXIT Note: The following description assumes that users are using our brand’s keyboard controller to control the speed dome camera. For details about using the DVR or other brand’s keyboard controller to control the speed dome camera, please refer to “APPENDIX 3 CAMERA CONTROL VIA OUR DVR”...
  • Page 29: Appendix 1 Specifications

    SPECIFICATIONS APPENDIX 1 SPECIFICATIONS 22X Model 35X Model ▓ GENERAL Signal System NTSC or PAL Pick-up Element 1/4" Sony Color Super HAD CCD image sensor Number of Pixels 768(H)*494(V)<NTSC> / 752(H)*582(V)<PAL> Resolution High Resolution Min. Illumination 0.6 Lux / F1.6 S/N Ratio More than 48dB (AGC off) Video Output...
  • Page 30: Appendix 2 Default Value

    DEFAULT VALUE APPENDIX 2 DEFAULT VALUE Items Default Value White Balance Auto Shutter Speed 1/60 Gain Medium IRIS Level Sharpness Auto Title Display Position Pan / Tilt Angle Pan / Tilt Graph Zoom Ratio Focus Window ID Code No. ID Code Display Baud Rate 9600 Tilt Limit...
  • Page 31: Appendix 3 Camera Control Via Our Dvr

    CAMERA CONTROL VIA OUR DVR APPENDIX 3 CAMERA CONTROL VIA OUR DVR Rather than controlling via our keyboard controller, it’s also available to control via our brand’s DVR and IR remote controller (if the IR remote controller is supported). ‧ From DVR’s Mouse Control Panel Note: This function is available when your DVR supports mouse control.
  • Page 32 CAMERA CONTROL VIA OUR DVR ‧ From IR Remote Controller If You Want To … Press …. Enter the speed dome camera mode PTZ or CAMERA Enter camera’s menu or Camera Menu Confirm your selection / enter the submenu or ENTER Zoom in Zoom + Zoom out...
  • Page 33: Appendix 4 Camera Control Via Other Keyboard Controller

    CAMERA CONTROL VIA OTHER KEYBOARD CONTROLLER APPENDIX 4 CAMERA CONTROL VIA OTHER KEYBOARD CONTROLLER When this camera is connected to the keyboard controller other than our brand, you can control the camera via the protocol of Pelco-P or Pelco-D. If You Want To … Press ….
  • Page 34: Appendix 5 Firmware Upgrade

    FIRMWARE UPGRADE APPENDIX 5 FIRMWARE UPGRADE Note: 1). Before upgrading the camera firmware, please get the upgrade file from your distributor. 2). The upgrade must be implemented with a PC / laptop and our brand’s keyboard controller. STEP 1: Connect the keyboard controller to your PTZ camera, and make sure the controller can control the camera correctly.
