PCI Express to 6Gb/s Serial Attach SCSI (SAS) Host Bus Adapters User Guide
June 2012
3.1.15.4 Physical Characteristics
The LSISAS9217-4i4e HBA is a 6.6-in × 2.7-in., low-profile board. The component height on the top and bottom of the
LSISAS9217-4i4e HBA is in accordance with the PCIe specification. The following figure shows the board layout.

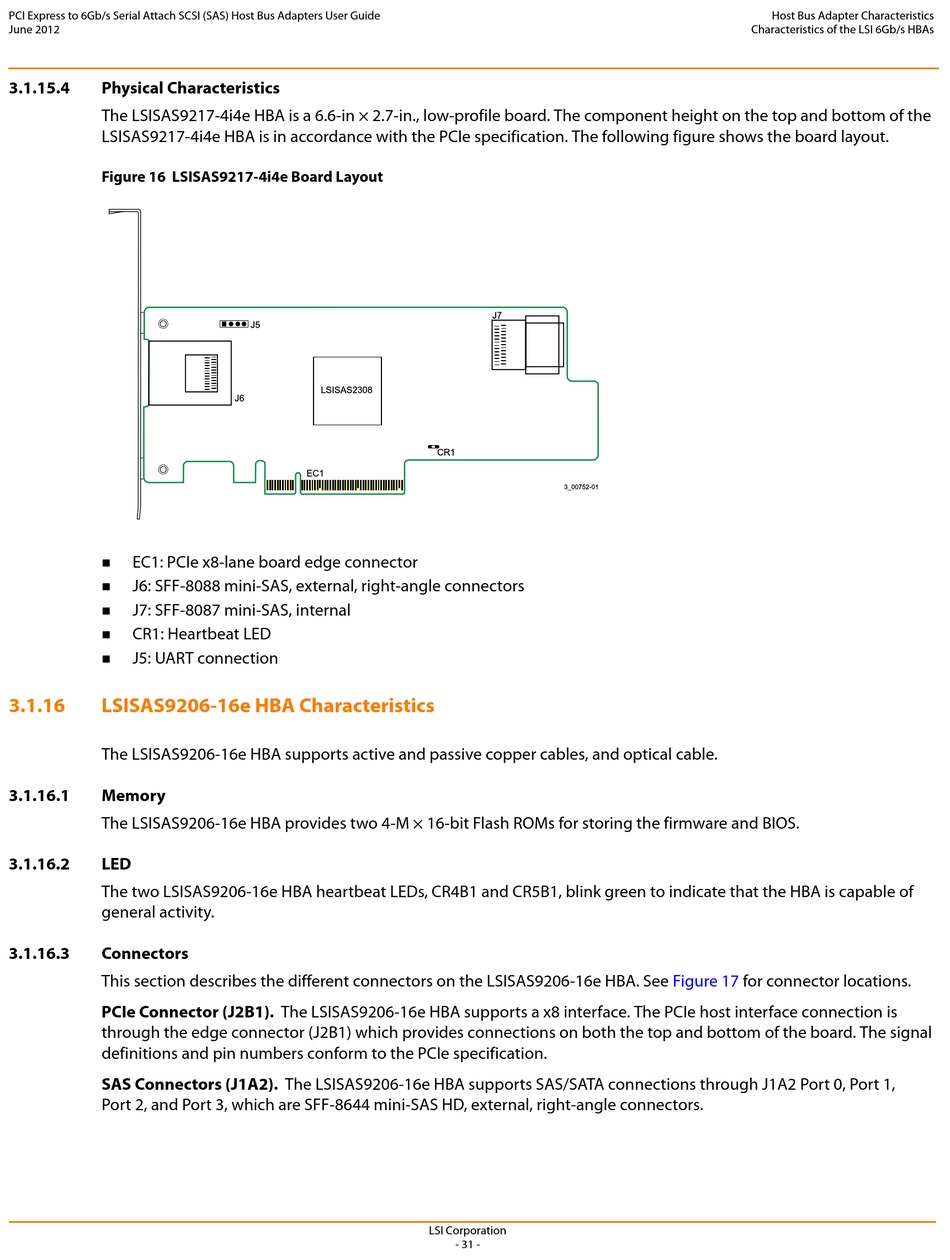

Figure 16 LSISAS9217-4i4e Board Layout
EC1: PCIe x8-lane board edge connector

J6: SFF-8088 mini-SAS, external, right-angle connectors

J7: SFF-8087 mini-SAS, internal

CR1: Heartbeat LED

J5: UART connection

3.1.16

LSISAS9206-16e HBA Characteristics

The LSISAS9206-16e HBA supports active and passive copper cables, and optical cable.
3.1.16.1 Memory
The LSISAS9206-16e HBA provides two 4-M × 16-bit Flash ROMs for storing the firmware and BIOS.
3.1.16.2 LED
The two LSISAS9206-16e HBA heartbeat LEDs, CR4B1 and CR5B1, blink green to indicate that the HBA is capable of
general activity.
3.1.16.3 Connectors
This section describes the different connectors on the LSISAS9206-16e HBA. See
PCIe Connector (J2B1). The LSISAS9206-16e HBA supports a x8 interface. The PCIe host interface connection is
through the edge connector (J2B1) which provides connections on both the top and bottom of the board. The signal
definitions and pin numbers conform to the PCIe specification.
SAS Connectors (J1A2). The LSISAS9206-16e HBA supports SAS/SATA connections through J1A2 Port 0, Port 1,
Port 2, and Port 3, which are SFF-8644 mini-SAS HD, external, right-angle connectors.
LSI Corporation
- 31 -
Host Bus Adapter Characteristics
Characteristics of the LSI 6Gb/s HBAs
Figure 17 for connector locations.
