Operating Controls and Functions

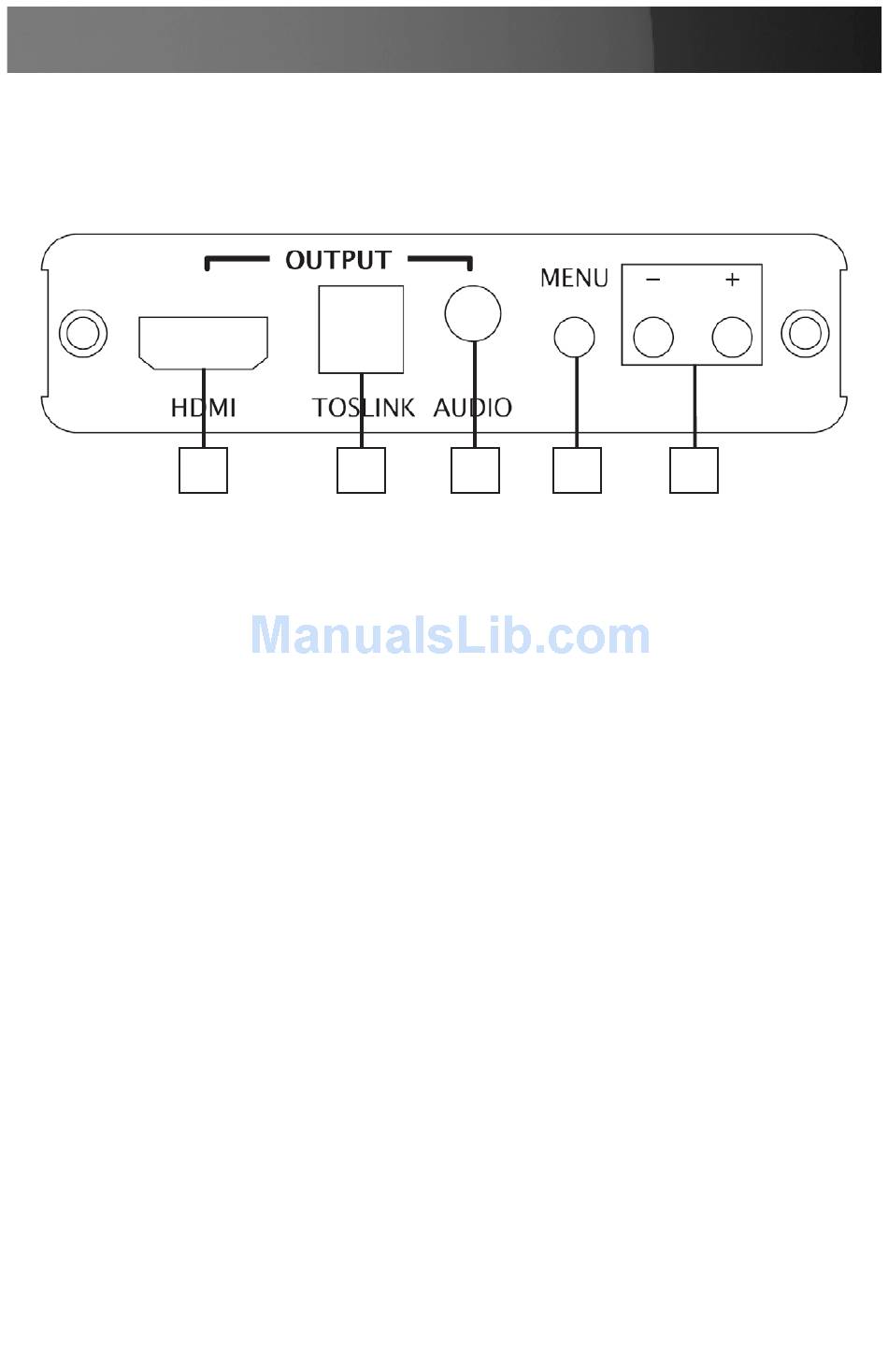

Front Panel

1. HDMI OUTPUT:
2. TOSLINK OUTPUT:
3. AUDIO OUTPUT:
4. MENU Button
a. Press the MENU button to bring up OSD operation menu
b. When in the OSD menu mode, use MENU button as an OK key to
confirm the selection.
5. +/- Buttons:
a. On the first tier of OSD menu, use + and - buttons to scroll up/down
the highlight bar for selection.
b. Once the desired option is selected, use + and - buttons to toggle
between setting values.
Instruction Manual
1 2
Connect the HDMI output port to the HDMI input port
of your display.
Connect the digital audio output port to the input
port of your digital audio equipment (i.e.
amplifier or receiver, using Optical Fiber cable.
Connect the analog audio output port to the input
port of your analog audio equipment (speakers etc.)
3 4
