StarTech.com HDMI2VGA Instruction Manual

Instruction Manual
HDMI® to VGA Video Converter with Audio
HDMI2VGA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging Contents

• 1 x HDMI to VGA converter
• 1 x DE-15 VGA to Component RCA cable adapter
• 1 x Universal Power Adapter
• 1 x Installation Guide

System Requirements

• HDMI enabled video/source
• VGA or YPbPr component enabled display device
• Stereo audio speakers with 3.5mm mini-jack (optional)
• Available electrical outlet

Installation

1. Make sure all devices are powered off before installing the
HDMI2VGA converter.
2. Connect the HDMI video/audio source to the HDMI2VGA
converter using a standard male/male HDMI cable.
3. If connecting the HDMI2VGA to a VGA display device, use a
standard male/male VGA cable. Set the "Output" selector switch
to RGB mode.
4. If connecting the HDMI2VGA to a component video (YPbPr)
display device, use the included VGA to RCA component cable
adapter. Set the "Output" selector switch to YPbPr mode.
For the most up-to-date information, please visit: www.startech.com

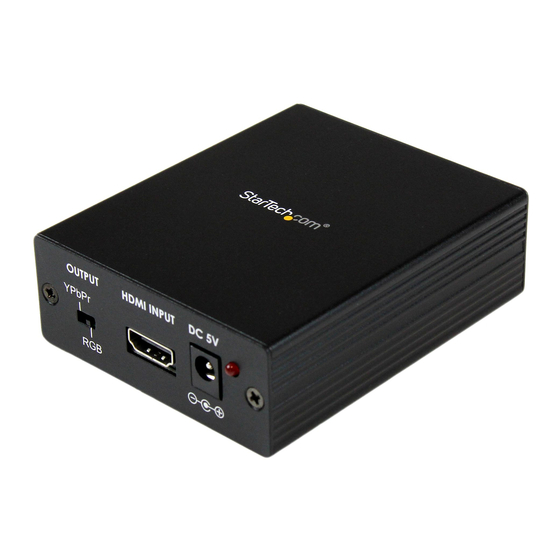

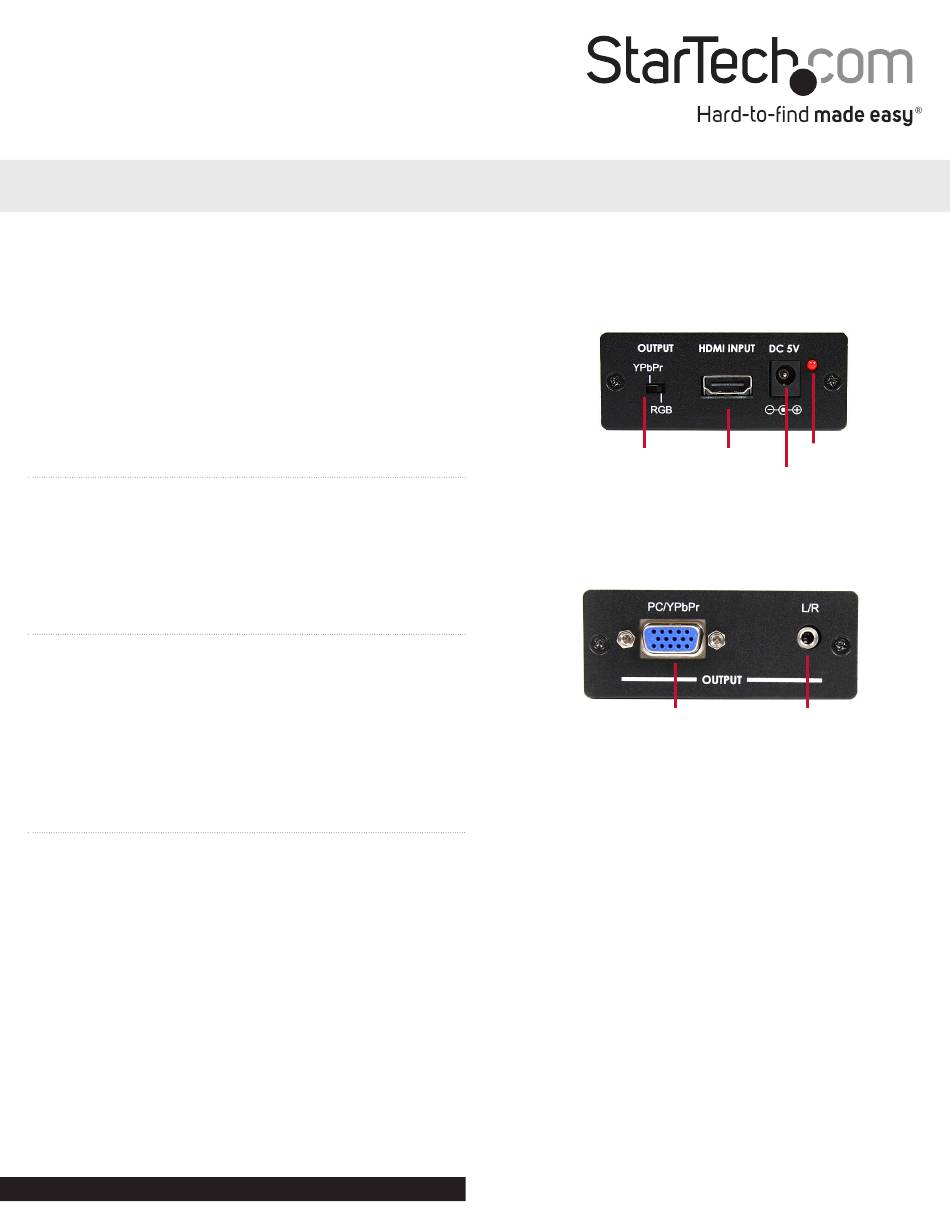

Front View
Output selector
switch
Rear View
DE-15 VGA
connector (output)
OPTIONAL: If the HDMI source is also transmitting audio, stereo
speakers/headphones may be connected to the 3.5mm mini-jack
connector.
5. Connect the power adapter from a power outlet to the
HDMI2VGA converter. The LED next to the power connector
should light up solid.
6. Power on the display device.
7. Power on the HDMI video/audio source.
8. The HDMI2VGA converter will automatically convert the
incoming video signal to the configured output signal. The video
resolution, refresh/scan rate, etc. will remain the same as the
original.
Power LED
HDMI conector
(input)
Power Connector
*actual product may vary from photos
3.5mm mini-jack
Audio (output)
Manual Revision: 01/26/2012
