StarTech.com HD2SDI Instruction Manual

Instruction Manual
HDMI® to SDI Converter with 3G-SDI Support
HD2SDI
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x HDMI to SDI Adapter
• 1x Mounting bracket assembly (attached)
• 1x Universal Power Adapter (NA/UK/EU)
• 1x Instruction manual
System Requirements
• HDMI® Video source (Computer, Blu-ray player Etc.)
• Up to 2 SDI Display Devices (e.g. Projector/Monitor Etc.)
• M/M HDMI® Video Cable
• Up to 2 SDI M/M Video Cables
Installation
1. Ensure your HDMI source device and SDI display device(s) are
powered off.
2. Connect the HDMI input on the HD2SDI to the HDMI output port
on your HDMI source device using an HDMI video cable
(not included).
3. Connect each of the video outputs on the HD2SDI to the SDI
input on the SDI Display device(s).
4. Power on the SDI Display device followed by your
computer system.
Note: The SDI adapter will not work on devices with resolution
outputs 480p or lower, such as DVD players.
For the most up-to-date information, please visit: www.startech.com
*actual product may vary from photos

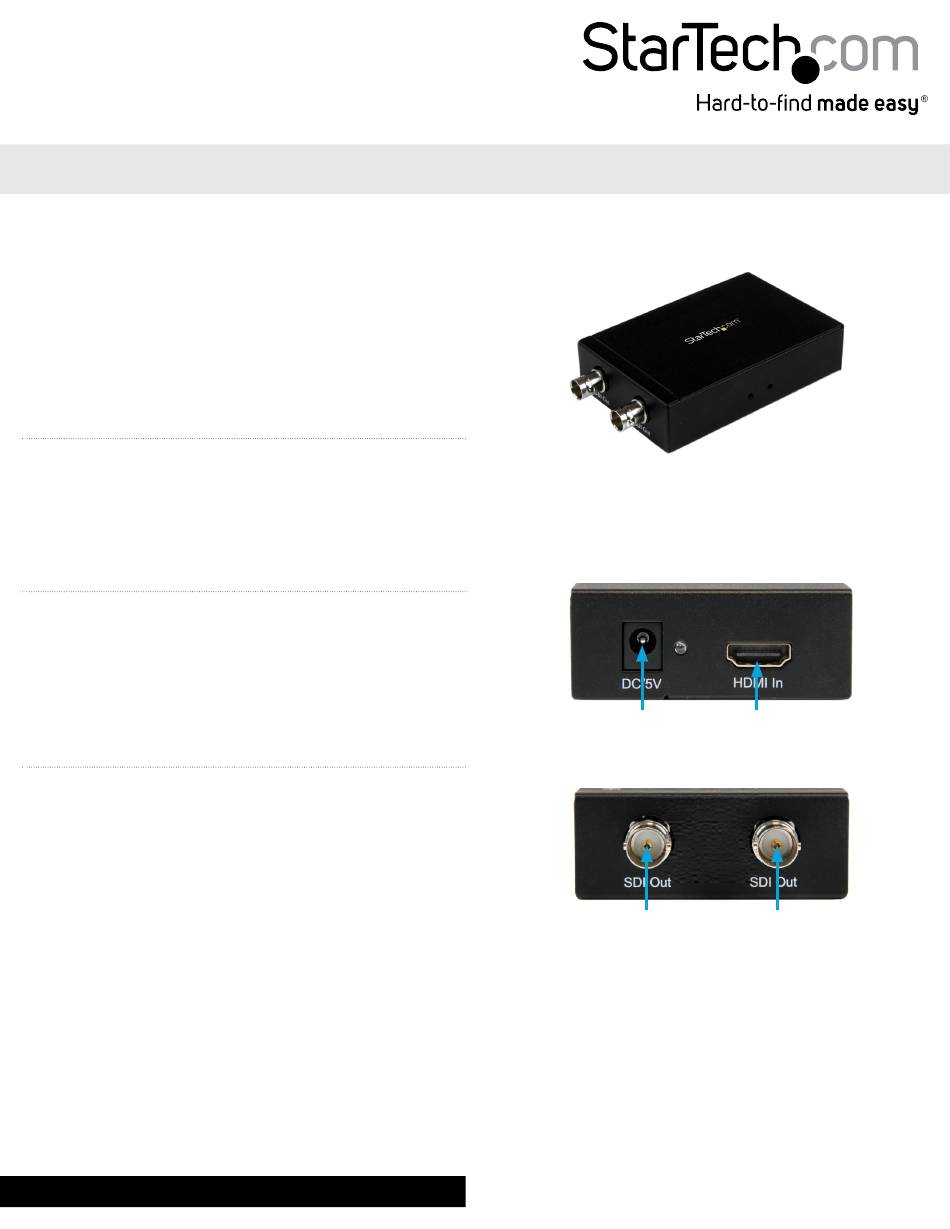

Power HDMI®
Adapter Input
Port
SDI SDI
Output
Output
#2
#1
Manual Revision: 03/12/2014
