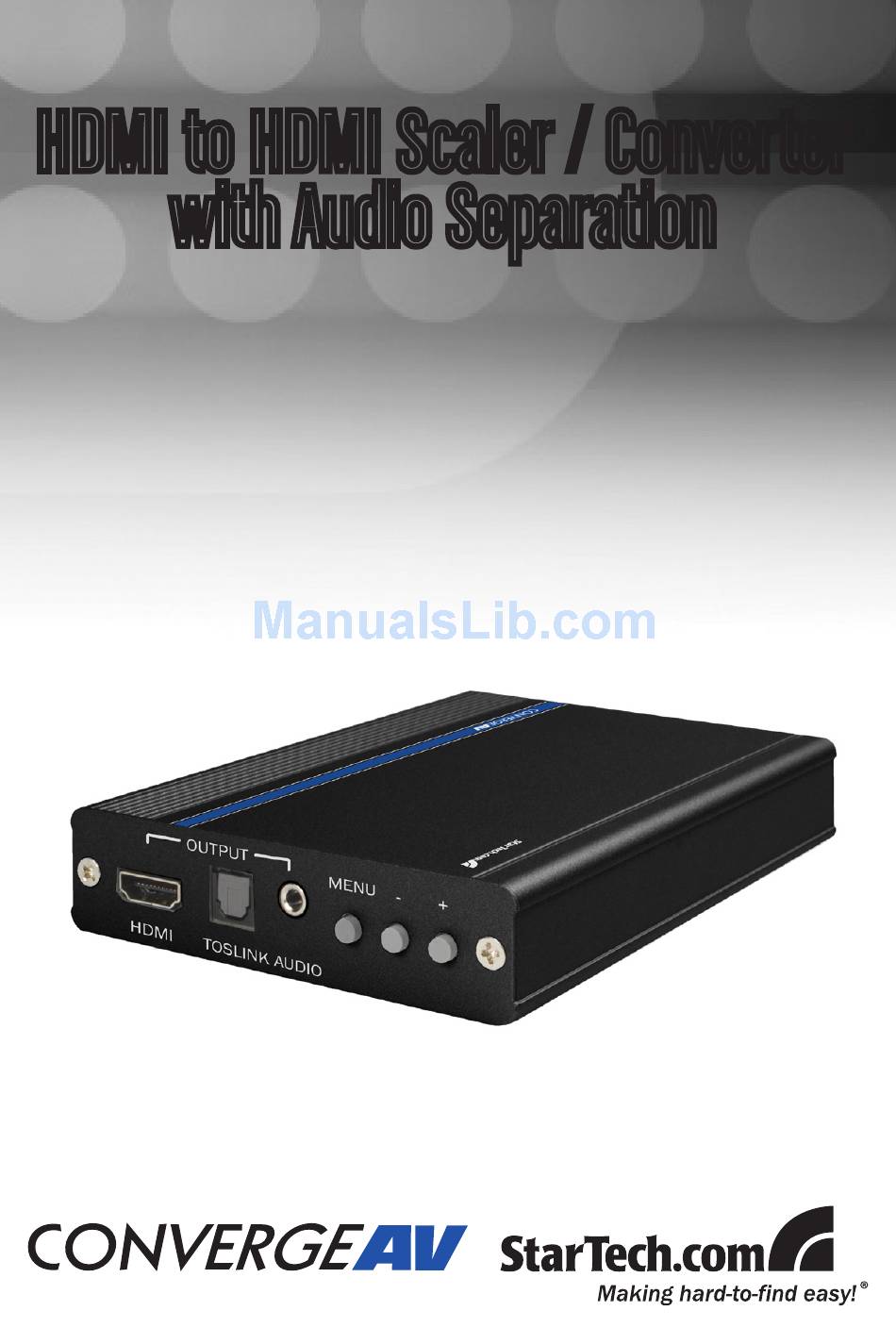

- Page 1 HDMI to HDMI Scaler / Converter with Audio Separation HDMI2HDMI...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Package contents ................1 Operating Controls and Functions ..........2 Front Panel ..................2 Rear Panel ...................3 OSD Operation ................4 Connection and Installation ............5 Supported Resolutions ..............5 Specifications ................6 Technical Support ................. -
Page 4: Introduction
Instruction Manual Introduction Thank you for purchasing a StarTech.com HDMI to HDMI Scaler/ Converter with Audio Separation. This compact device accepts HDMI input with a separate Toslink or analog audio signal, and scales it to HDMI output - adjusting the resolution to match the display’s native resolution,... -
Page 5: Operating Controls And Functions
Instruction Manual Operating Controls and Functions Front Panel HDMI OUTPUT: Connect the HDMI output port to the HDMI input port of your display. TOSLINK OUTPUT: Connect the digital audio output port to the input port of your digital audio equipment (i.e. amplifier or receiver, using Optical Fiber cable. -
Page 6: Rear Panel
Instruction Manual Operating Controls and Functions - Cont’d Rear Panel HDMI INPUT: Connect the HDMI input port to the HDMI output port of your source equipment (i.e. DVD player or Set-Top-Box) AUDIO INPUT: Connect the analog audio input port to the output port of your source equipment TOSLINK INPUT: Connect the digital audio input port to the Toslink... -
Page 7: Osd Operation
Instruction Manual OSD Operation 2nd Tier 1st Tier Option Adjustment/Function Option CONTRAST 0 ~ 100% of Contrast Level BRIGHTNESS 0 ~ 100% of Brightness Level 0 ~ 100% of Hue Level SATURATION 0 ~ 100% of Saturation Level FINETUNE SHARPNESS 0 ~ 100% of Sharpness Level EXIT Back to 1st Tier... -
Page 8: Connection And Installation
Instruction Manual Connection and Installation HDMI Cable HDMI Cable HDMI to HDMI Input Device Scaler Box Supported Resolutions Input VGA@60Hz, 72Hz, 75Hz, 85Hz; SVGA@52Hz, 60Hz, 72Hz, 75Hz, 85Hz XGA@60Hz, 70Hz, 75Hz, 85Hz; SXGA@60Hz, 75Hz, 85Hz, UXGA@60Hz; WXGA@60Hz; WSXGA@60Hz; WUXGA@60Hz; 480i, 480p, 576i, 576p, 720p @50/60Hz 1080i@25/30Hz;... -
Page 9: Specifications
Instruction Manual Specifications Frequency Bandwidth 1.65Gbps (single link) Input Ports 1 x HDMI; 1 x Toslink; 1 x 3.5mm Audio jack Output Ports 1 x HDMI; 1 x Toslink;1 x 3.5mm Audio jack Power 5V/2.6A DC Power Supply Dimensions 102(w) x 145(d) x 25(h)mm Weight 3.2Kgs... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 Cable Finder, Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT or A/V solution. Find out for yourself why our products lead the industry...
