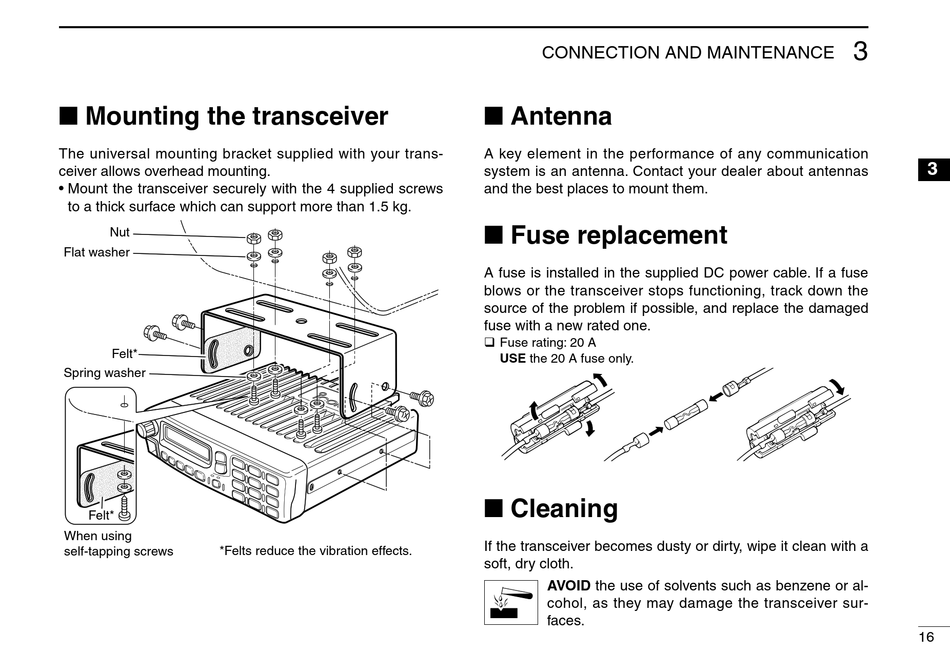

n Mounting the transceiver
The universal mounting bracket supplied with your trans-
ceiver allows overhead mounting.
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg.
Nut
Flat washer
Felt*
Spring washer
Felt*
When using
*Felts reduce the vibration effects.
self-tapping screws
CONNECTION AND MAINTENANCE
n Antenna
A key element in the performance of any communication
system is an antenna. Contact your dealer about antennas
and the best places to mount them.
n Fuse replacement
A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem if possible, and replace the damaged
fuse with a new rated one.
q Fuse rating: 20 A
USE the 20 A fuse only.
n Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage the transceiver sur-
faces.
