Service Manual
Installation and Operation Instructions
If you have questions, call 800-922-2178 or visit our website at: www.AmericanDish.com
BEFORE YOU BEGIN:
American Dish Service provides this information as a service to our customers. Keep all instructions
for future reference. ADS reserves the right to alter or update this information at any time. Should you
desire to make sure that you have the most up-to-date information, we would direct you to the appro-
priate document on our web site: www.AmericanDish.com.
Set out below are the specifications and requirements that you must use and follow to properly install
the type or types of equipment listed above.
machine is installed safely and properly, and when completed, the machine is left in proper and safe
working order.
Electrical, Plumbing, and Chemical hookups must be performed by qualified personnel
who will ensure that the equipment is installed in accordance with all applicable Codes, Ordinances,
and Safety Requirements.
ranty. ADS assumes no liability or control over the installation of the equip-
ment. Product failure due to improper installation is not covered under the
ADS Warranty.
WARNING:
When working on the Glasswasher, always disconnect
power to glasswasher and tag out before servicing.
Caution: Refer to chemical suppliers MSDS sheets for
proper handling of chemical issues. Heater will remain
hot immediately after emptying the wash tank. Turn off
machine at master switch (front left switch) before
opening for inspection.
IMPORTANT:
Glasswashers are 120 Volt and require a 15 amp.
clean circuit and a suitable ground. It is
recommended that new glasswashers be installed
using new circuit breakers.
NOTE TO INSTALLER:
ALLOW A TWO (2) INCH CLEARANCE BETWEEN BAR
COUNTER AND TOP OF GLASSWASHER HOOD. KEEP
FRONT OF CAROUSEL OPEN (NOT UNDER COUNTER FOR
LOADING OF GLASSWARE.
arms installed until machine is flushed with water Fill machine
with water and run though one cycle without spray arms in place.
This will flush installation debris from tank and pump and prevent
damage to spray arm bushing.
Water Heaters or boilers must provide 120 degree minumum (130-
140 degree recommended) water with a minimun recovery rate of
57 gallons per hour. Caution: Do not exceed water temperatures
above 150 degree.
All drains are gravity flow. Drain pipes must go downhill.

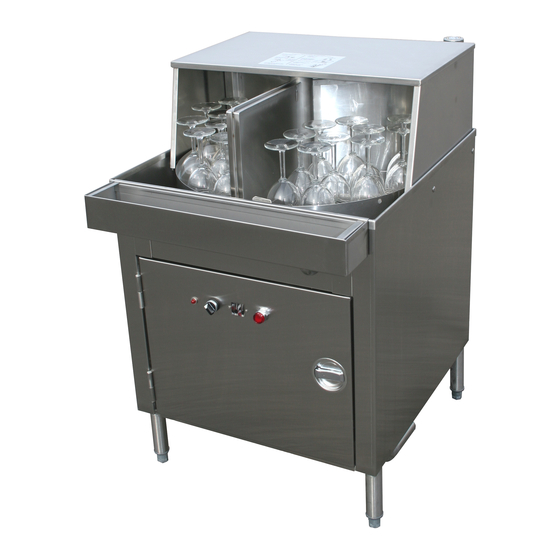

ASQ Glasswasher
Failure to follow these requirements will void the war-
Do not operate machine with spray
It is your obligation as the customer to ensure that the
FOR YOUR SAFETY
Read and observe all
WARNINGS
While performing installations described in this
booklet APPROVED Personal Protective
Equipment, including SAFETY EYE-WEAR must
be worn.
IMPORTANT -
chlorine sanitizers and caustic
detergents will cause damage to metals
and welds. Do not wash glasses
trimmed with gold or silver with chlorine
based sanitizers. Do not exceed 75
ppm free chlorine. Adjust detergents for
light glasswasher soil loads and low
water consumption. Glasswasher
chemical settings are roughly half of
normal dishmachine settings.
Component failure due to excessive
chemical use is not covered under the
ADS warranty.
CAUTIONS
and
shown throughout these instructions.
High concentrations of
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for American Dish Service ASQ
Summary of Contents for American Dish Service ASQ
-
Page 1: Before You Begin
If you have questions, call 800-922-2178 or visit our website at: www.AmericanDish.com BEFORE YOU BEGIN: American Dish Service provides this information as a service to our customers. Keep all instructions for future reference. ADS reserves the right to alter or update this information at any time. Should you desire to make sure that you have the most up-to-date information, we would direct you to the appro- priate document on our web site: www.AmericanDish.com. -
Page 2: Connect To Water Supply
Electrical Important: The glasswasher master switch must be in the OFF position before connecting power. This switch is located on the front of the glasswasher. It is the black switch located on the front left side. The OFF position is to the LEFT. The power supply (120 volt - 15 amps) must consist of two (2) 12-14 AWG copper wires and a suitable ground. -
Page 3: Chemical Dispensers
Plumbing Drain Requirements for Glasswashers Follow local codes and ordinances Do not exceed 5 feet distance to drain. Drain line is 1 1/2” O.D. Glasswasher drain (1 1/2” Plastic Tube) protrudes through the bottom of the cabinet floor on the right front corner (drain is directly in front of the water inlet connection). - Page 4 Cam Timer Adjustment - ASQ Glasswasher Timer 75 second - 7 cam Cycle time is not adjustable Timer cams (wheels) are fixed or adjustable. The first three cams (white) are fixed. Each cam controls a specific function as noted on the timer decal. Adjustable cams are comprised of two wheels. The outer edge of each wheel (half) has a high and low segment.
- Page 5 Operating Instructions The carousel is divided into three positions by stainless steel panels. These panels isolate each compartment, controlling the water and washing action of the rotating spray. With a push of the detent lever, the carousel easily rotates and locks into the next position. While one section of the carousel is being washed, the operator can unload the cleaned glassware from the second section, then load dirty glassware into the last section of the carousel.
-
Page 6: Limited Warranty
In addition, ADS will exchange any part covered under this limited warranty which is found defective, as determined by American Dish Service, under normal use and service up to two hundred and seventy (270) days following the first ninety (90) day limited warranty period as described above, excluding feed line, flexible hose, and squeeze tubes.
