EFFECTIVE: MARCH 2011
American Dish Service
ADS LOW TEMPERATURE DISHWASHER
MODEL: 5-CD LF/RF

PARTS MANUAL

900 Blake Street
Edwardsville, Kansas 66111
(913)422-3700
C 5/08

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5-CD LF/RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for American Dish Service 5-CD LF/RF

Summary of Contents for American Dish Service 5-CD LF/RF

  • Page 1: Parts Manual

    EFFECTIVE: MARCH 2011 American Dish Service ADS LOW TEMPERATURE DISHWASHER MODEL: 5-CD LF/RF PARTS MANUAL 900 Blake Street Edwardsville, Kansas 66111 (913)422-3700 C 5/08...

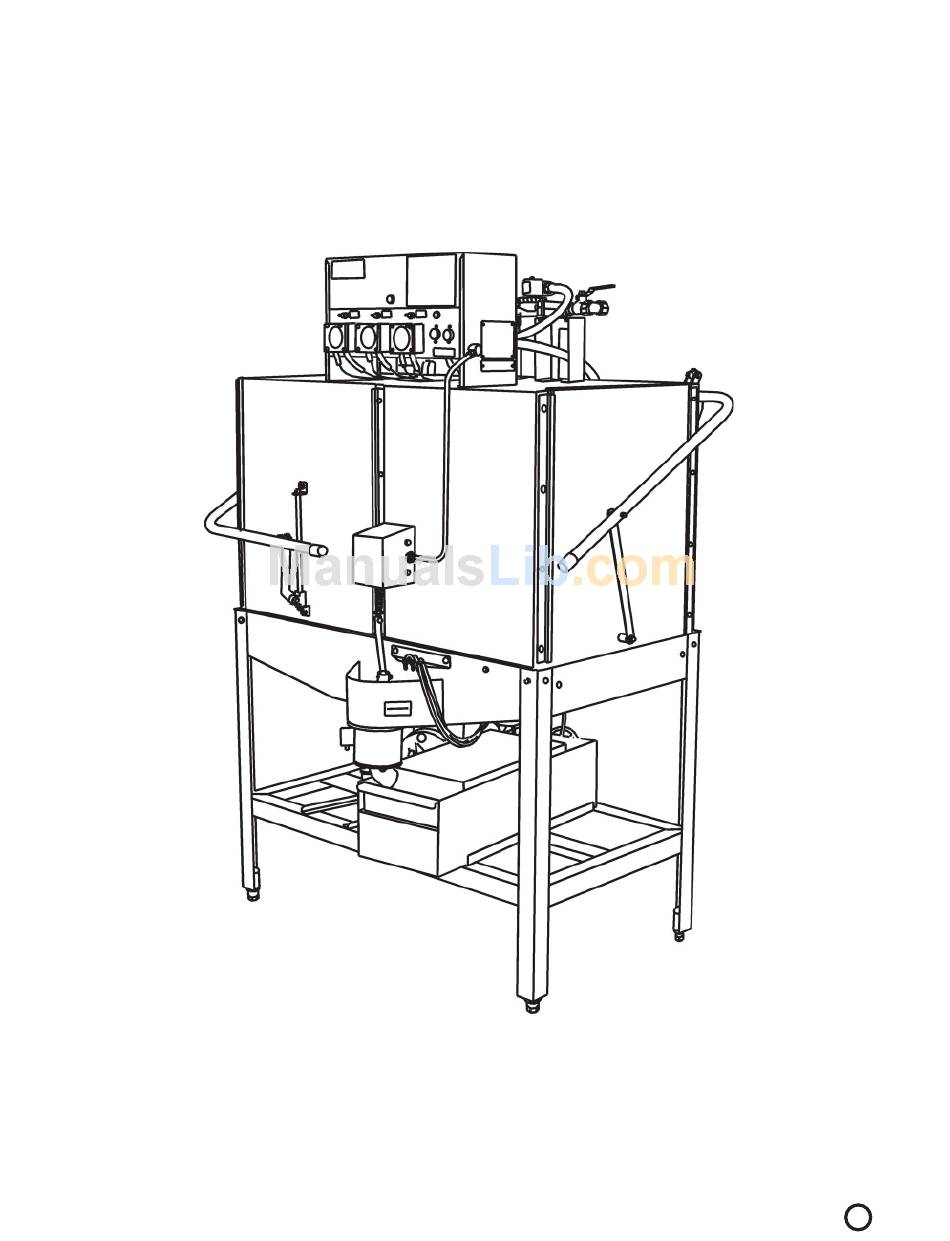

  • Page 2 029-0090/030-0090 Model: 5-CD LF/RF American Dish Service DISHMACHINE...
  • Page 3 Drain System Assembly, 5-CD RF Recirculating Pump Assembly, 5-CD LF Recirculating Pump Assembly, 5-CD RF Scrap Trap Weldment, 5-CD LF/RF Fresh Water Plumbing Assembly, 5-CD LF/RF Spray System Assembly, 5-CD LF Spray System Assembly, 5-CD RF Door Actuator Assembly, 5-CD LF...
  • Page 4 061-2100/061-2200 American Dish Service CABINET ASSEMBLY LF/RF 5-CD...
  • Page 5 087-6118 085-6421 085-6422 098-2507 098-2404 098-1423 099-1003 089-9055 089-9100 086-6419 089-9056 086-6685 087-6389 American Dish Service Description Frame, LF Frame, RF Pan, LF Pan, RF Door Hood, LF Hood, RF Doorstrip, Clear Door, Front Door Guide Door Guide, Front Corner...
  • Page 6 062-1800/062-1900 Spray System Assembly LF/RF American Dish Service 5-CD...
  • Page 7 085-6633 085-6632 085-6631 085-6630 093-1040 089-6201 098-2404 093-1041 098-1445 American Dish Service Req. Description Upper Spray Base, SS, Thumbscrew Type Opt. Upper Spray Base, SS, Bayonet Type Thumb Screws 5/16-18 x 5/8” SS Opt. Bayonet Fitting Bolt, ¼-20 x ¾” HH SS Locknut, ¼-20 SS...
  • Page 8 063-2200/063-2300 Recirculating Pump Assembly LF/RF American Dish Service 5-CD...
  • Page 9 098-1607 085-6321 093-1039 085-6326 085-6327 098-1426 085-6408 098-2404 098-1434 098-2507 Rep. 088-1012 American Dish Service Req. Description Motor Rear Housing Seal Assembly Impeller, 7-vane Gasket, Pump Front Housing (Pump Cover) Discharge Pipe ‘T’ Weldment Pipe Plug, 3/8”, SS Petcock 1/8”...
  • Page 10 063-0800 American Dish Service Control System Assembly 5-CD...
  • Page 11 091-3001 091-3002 091-3083 091-3008 091-3009 091-3049 091-3051 091-4019 091-5028 091-7006 American Dish Service Req. Description Control Box Weldment Control Box Hinge Safety Latch Shelf Handle Screw, 8-32 x ½” RH, Slotted Locknut, 8-32, Hex Washer, ¼”, SS Chemical Pump Assembly, External Chemical Discharge Tube, Red 5’...
  • Page 12 063-0800 American Dish Service Control System Assembly 5-CD...

  • Page 13: Control System Assembly

    089-9227 089-9257 091-4142 091-4017 091-5213 091-5220 091-5223 091-5224 091-5226 American Dish Service ½” Close Nipple ½” x 3/8” Reducer, Brass Fitting, 3/8” Comp x ½” FPT 90° Tube Clamp Toggle Switch Junction Box Cover, Junction Box Conduit, ½”, 240” Conduit, Fitting ½” ST...
  • Page 14 063-0800 American Dish Service Control System Assembly 5-CD 14 14 14...
  • Page 15 292-1006 098-2507 091-3011 091-4002 091-9103 091-5156 American Dish Service Spade Connector, Female Flag Connector and Cover Screw, 6-32 x ¼”, RH, SS Screw, 6-32 x ½”, RH, SS Screw, 8-32 x 5/8”, RH, SS Screw, 4-40 x ¼”, RH, SS Bolt, ¼-20 x 1”, TH, SS...
  • Page 16 064-0010 American Dish Service Chemical Pump Assembly 5-CD...
  • Page 17 098-1606 091-5222 091-5221 098-1305 098-1204 098-1321 091-5224 091-5223 092-1146 American Dish Service Description Gear Motor Pump Housing, 3D Rotor Assembly, 3D Rotor, 3D, Chem. Pump Roller, 3D, Chem. Pump Pin, 3D, Chem. Pump Set Screw, 10-32 x ¼” Squeeze Tube Cover, 3D, Chem.
  • Page 18 065-0100 American Dish Service Fresh Water Plumbing Assembly 5-CD...
  • Page 19 U-Bolt, ¼-20, SS Bracket, Plumbing, 5-AG-S Locknut, ¼-20, SS Washer, ¼”, SS Rep. Screen (Replacement), ¾” Air Gap Flanged Outlet Elbow Weldment, 5-AG-S Solenoid Valve Repair Kit (Replacement), ¾ Solenoid Valve Body (Replacement), ¾ Solenoid Valve Coil (Replacement) American Dish Service...
  • Page 20 066-1700/066-1800 American Dish Service Drain System Assembly LF/RF 5-CD...
  • Page 21 Screw, RH, SS, 10-32 x 1 3/8 Drain Plug Assembly, 1 ½”, Outside Sump Drain Tube (Replacement Part) Drain Ball (Replacement Part), 1 ½” Sump Screen Sump Gasket Bolt, HH, SS, ¼-20 x ½ Sump Assembly With Tail Piece Temperature Gauge American Dish Service...
  • Page 22 066-1700/066-1800 American Dish Service Drain System Assembly LF/RF 5-CD...
  • Page 23 092-1029 091-4144 085-6160 098-9028 098-2404 098-2507 086-6615 092-1091 092-1124 American Dish Service Req. Description Drain Elbow Gasket Drain Seat, 1 ½” Drain Elbow Weldment Bolt, 5/16-18 x 5/8”, HH, SS Reducer Bushing, ½” x 3/8” Conduit Locknut Drain Screen Secondary (To Protect The Pump) Washer, Rubber Reinforced Washer, ¼”, SS...
  • Page 24 067-1400/067-1500 American Dish Service Door Actuator Assembly LF/RF 5-CD...
  • Page 25 086-6732 098-2708 084-6242 098-2501 098-1517 086-6733 098-2511 098-2705 098-1445 American Dish Service Req. Description Spring Extension Bushing, Bronze Bolt, 5/16 x 1 ¼”, HH, SS Nut, 5/16-18, HH, SS Arm Support Bracket, LH Arm Support Bracket, RH Bolt, ¼-20 x ½”, HH, SS Washer, ¼”, SS...
  • Page 26 American Dish Service Manufacturer of low and high temperature Commercial Dishwashers and Glasswashers 900 Blake Street Edwardsville, Kansas 66111 Ph:(913) 422-3700 Fax:(913) 422-6630...
