American Dish Service 5-AG-S Parts Manual

Ads low temperature dishwasher
Hide thumbs
Table of Contents

Advertisement

Quick Links

EFFECTIVE: January 2012
American Dish Service

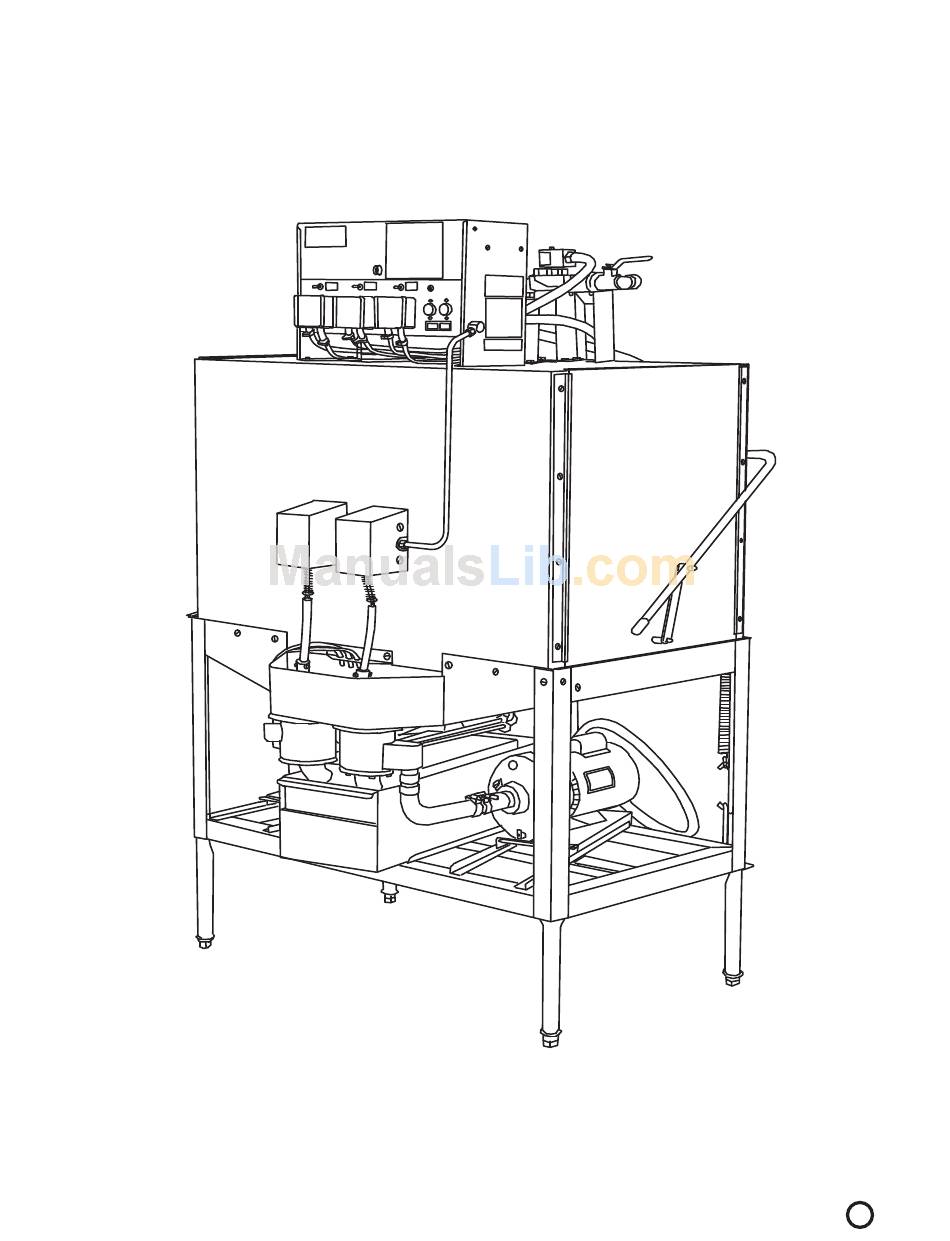

ADS LOW TEMPERATURE DISHWASHER

PARTS MANUAL

900 Blake Street
Edwardsville, Kansas 66111
(913)422-3700
C 4/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5-AG-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for American Dish Service 5-AG-S

Summary of Contents for American Dish Service 5-AG-S

  • Page 1: Parts Manual

    EFFECTIVE: January 2012 American Dish Service ADS LOW TEMPERATURE DISHWASHER MODEL: 5-AG-S PARTS MANUAL 900 Blake Street Edwardsville, Kansas 66111 (913)422-3700 C 4/08...
  • Page 2 028-0090 Model: 5-AG-S American Dish Service DISHMACHINE...
  • Page 3 051-9001 American Dish Service Cabinet Assembly Control System Assembly Drain System Assembly, LH Drain System Assembly, RH Recirculating Pump Assembly, LH Recirculating Pump Assembly, RH Fresh Water Plumbing Assembly Spray System Assembly Door Actuator Assembly Scrap Trap Weldment, 5-AG-S Description...
  • Page 4 028-0090 Model: 5-AG-S American Dish Service DISHMACHINE...
  • Page 5 Tray Track Assembly (Heavy Duty) Locknut, ¼-20, SS Washer, ¼”, SS Bolt, ¼-20 x ½”, HH, SS Bullet Foot Locknut, ¼-20, SS Scrap Trap Weldment, 5-AG-S Tray Weldment, Scrap Trap, 5-AG-S Scrap Trap Lid, 5-AG-S Chemical Bracket Tray Stop/Back Cover, Scrap Trap, 5-AG-S...
  • Page 6 062-0800 Spray System Assembly American Dish Service 5-AG-S...
  • Page 7 Opt. 093-1040 098-9037 089-6201 098-2404 093-1041 098-1426 American Dish Service Description Upper Spray Base, SS, Thumbscrew Type Upper Spray Base, SS, Bayonet Type Thumb Screws 5/16-18 x 5/8” SS Bayonet Fitting Bolt, ¼-20 x ¾” HH SS Locknut, ¼-20 SS...
  • Page 8 063-2100 Recirculating Pump Assembly LH American Dish Service 5-AG-S...
  • Page 9 Motor, 1 ½ HP Rear Housing Seal Assembly Impeller, 5-vane Gasket Front Housing (Pump Cover) Discharge Pipe Weldment, 5-AG-S Pipe Plug, 3/8”, SS Petcock 1/8” Pipe Plug, 1/8” SS Bolt, HH, SS, 5/16-18 x 7/8” Bolt, 5/16-18 x 1 ¼”, HH, SS Washer, Copper 5/16”...
  • Page 10 063-2400 Recirculating Pump Assembly RH American Dish Service 5-AG-S...
  • Page 11 Motor, 1 ½ HP Rear Housing Seal Assembly Impeller, 5-vane Gasket Front Housing (Pump Cover) Discharge Pipe Weldment, 5-AG-S Pipe Plug, 3/8”, SS Petcock 1/8” Pipe Plug, 1/8”, SS Bolt, HH, SS, 5/16-18 x 7/8” Bolt, 5/16-18 x 1 ¼”, HH, SS Washer, Copper 5/16”...
  • Page 12 064-2700 American Dish Service Control System Assembly 5-AG-S...
  • Page 13 091-3083 091-3008 091-3009 091-3049 091-3051 091-4019 091-5028 091-7006 092-1008 092-1029 092-1030 American Dish Service Description Control Box Weldment Control Box Hinge Safety Latch Shelf Handle Screw, 8-32 x ½” Locknut, 8-32 Washer Chemical Pump Assembly Chemical Discharge Tube, Red 5’...
  • Page 14 064-2700 American Dish Service Control System Assembly 5-AG-S...
  • Page 15 089-9210 089-9227 089-9257 091-4142 091-4017 091-5213 091-5220 091-5223 091-5224 091-5226 American Dish Service Req. Description Tube Clamp Toggle Switch Junction Box Cover, Junction Box Conduit, ½”, 240” Conduit, ST. ½”, Fitting Relay, Auto Start Chemical Discharge Bracket Screw, ¼-20 x ½”, TH, SS Chemical Tube Fitting, Grommet Hose Barb 3/16”...
  • Page 16 064-2700 American Dish Service Control System Assembly 5-AG-S...
  • Page 17 098-1418 098-1420 098-2001 098-2101 098-2202 098-2507 098-9020 292-1006 American Dish Service Description Spade Connector, Female Flag Connector and Cover, ¼” Female Screw, 6-32 x ¼”, RH, SS Screw, 6-32 x ½”, RH, SS Screw, 8-32 x 5/8”, RH, SS Screw Bolt, ¼-20 x 1”, TH, SS...
  • Page 18 064-0010 American Dish Service Chemical Pump Assembly 5-AG-S...
  • Page 19 091-5223 Rep. 092-5224 Rep. 098-1310 098-1204 098-1321 091-5221 092-5222 092-1146 American Dish Service Description Gear Motor Chemical Pump Housing Rotor Assembly Set Screw, 10-32 x ¼” Squeeze Tube Cover, Chemical Pump Clamp, Spring-Type, 7/16” Cover (Service Only) Molex Male Pin (Service Only) Screw, 10-32 x ½”, FH, SS...
  • Page 20 065-2100 American Dish Service Fresh Water Plumbing Assembly 5-AG-S...
  • Page 21 065-2100 Fresh Water Plumbing Assembly American Dish Service 5-AG-S Ref. Req. Part No. Description...
  • Page 22 066-1700 American Dish Service Drain System Assembly LH 5-AG-S...
  • Page 23 086-6601 085-6199 098-1508 085-6160 American Dish Service Conduit, 3/8” Dia. X 5” Solenoid Base, 5-AG-S, LH Front Plate, Solenoid Base Washer, ¼”, SS Bolt, HH, SS, ¼-20 x ½” Locknut, SS, ¼-20 Grommet, Plastic Bolt, ¼-20 x 3/8”, TH, SS...
  • Page 24 066-1700 American Dish Service Drain System Assembly LH 5-AG-S...
  • Page 25 066-1700 Drain System Assembly LH 5-AG-S Ref. Part No. Req. 098-9028 098-2404 098-2407 086-6615 American Dish Service Washer, Rubber Reinforced Washer, ¼”, SS Locknut, ¼-20, SS Water Fin, Outside Sump Description...
  • Page 26 066-1800 American Dish Service Drain System Assembly RH 5-AG-S...
  • Page 27 085-6160 American Dish Service Req. Description Conduit Fitting, 3/8” Comp x ½” FPT, 90° Elbow Conduit, 3/8” Dia. x 25” Solenoid Base, 5-AG-S, RH Front Plate, Solenoid Base Washer, ¼”, SS Bolt, HH, SS, ¼-20x ½” Locknut, SS, ¼-20 Grommet, Plastic Bolt, ¼-20 x 3/8”, TH, SS...
  • Page 28 066-1800 American Dish Service Drain System Assembly RH 5-AG-S...
  • Page 29 066-1800 Drain System Assembly RH 5-AG-S Ref. Part No. Req. 098-9028 098-2404 098-2507 092-1091 086-6615 American Dish Service Washer, Rubber Reinforced Washer, ¼”, SS Locknut, ¼-20, SS Fitting, 3/8” Comp. x 3/8” MPT Water Fin, Outside Sump Description...
  • Page 30 067-1300 American Dish Service Door Actuator Assembly 5-AG-S...
  • Page 31 Arm Support Bracket, LH Arm Support Bracket, RH Bolt, ¼-20 x ½”, HH, SS Washer, ¼”, SS Locknut, ¼-20, SS Door Operating Arm (Lever Arm), 5-AG-S Bolt, ¼-20 x 1 3/8”, HH, SS Washer, ¼”, SS Bushing (Dowel 3/8”) Door Stop Bolt, ¼-20 x 1 ¾”, HH, SS...
  • Page 32 American Dish Service Manufacturer of low and high temperature Commercial Dishwashers and Glasswashers 900 Blake Street Edwardsville, Kansas 66111 Ph:(913) 422-3700 Fax:(913) 422-6630...
