EFFECTIVE: MAY, 2008
American Dish Service

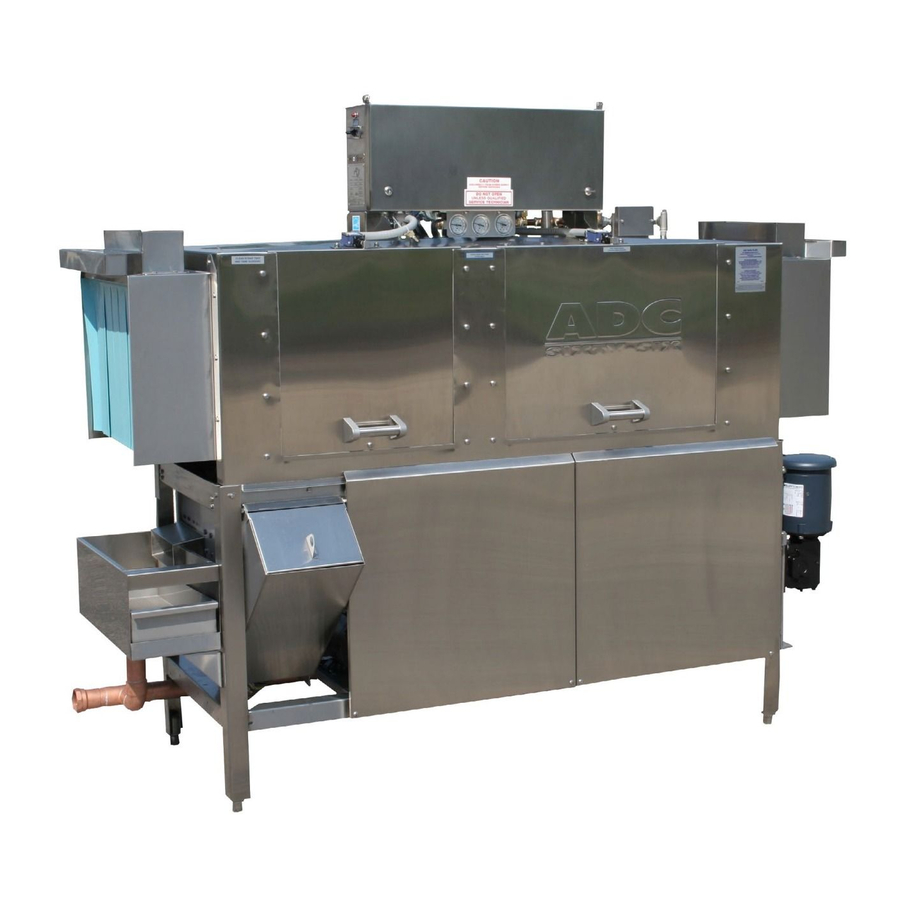

ADS CONVEYOR DISHWASHER
MODELS: ADC-66 L-R/R-L

PARTS MANUAL

900 Blake Street
Edwardsville, Kansas 66111
(913)422-3700
© 05/08

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADC-66 L-R/R-L and is the answer not in the manual?

Questions and answers

Related Manuals for American Dish Service ADC-66 L-R/R-L

Summary of Contents for American Dish Service ADC-66 L-R/R-L

  • Page 1: Parts Manual

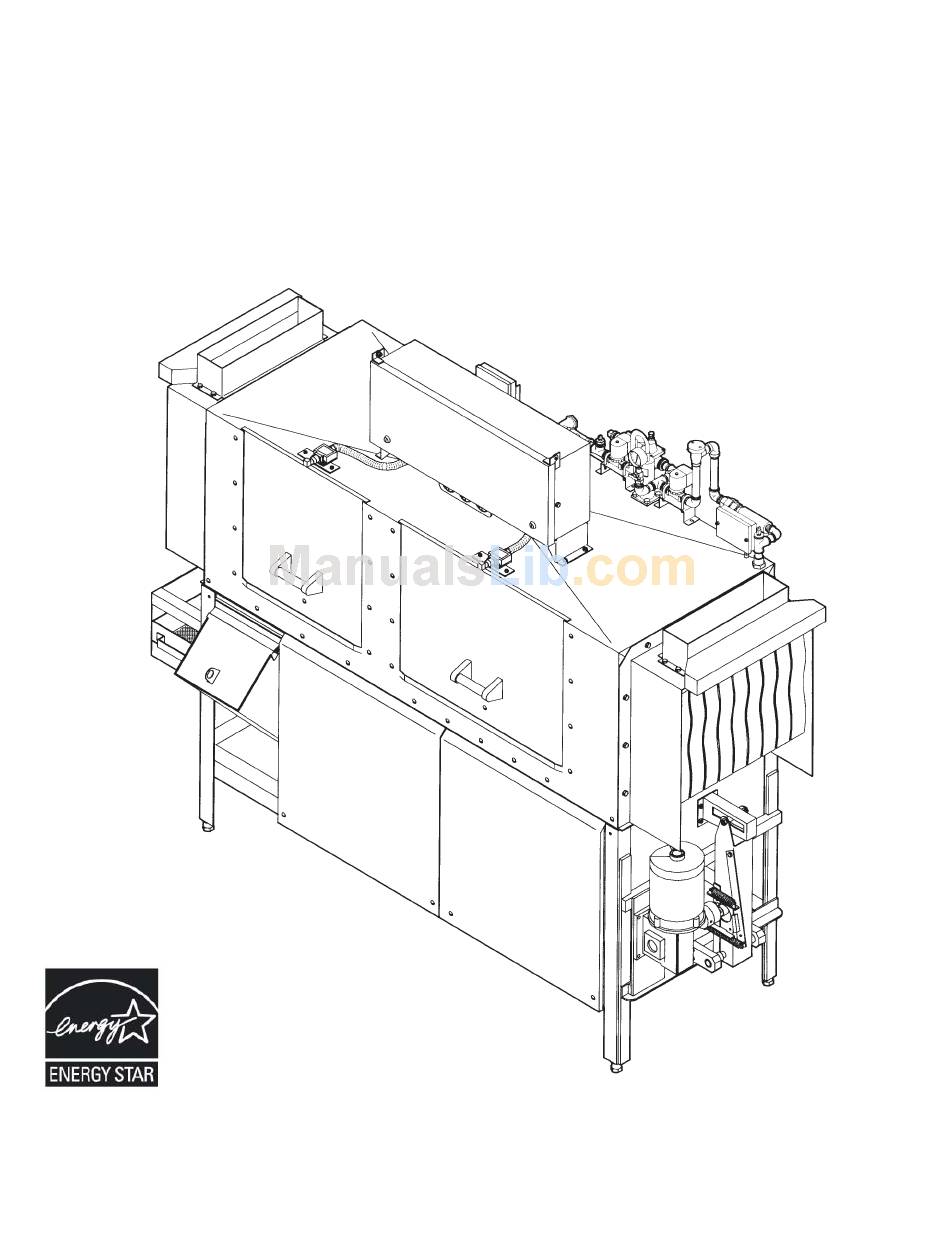

    EFFECTIVE: MAY, 2008 American Dish Service ADS CONVEYOR DISHWASHER MODELS: ADC-66 L-R/R-L PARTS MANUAL 900 Blake Street Edwardsville, Kansas 66111 (913)422-3700 © 05/08...
  • Page 2 213-0066 L-R / 214-0066 R-L ADC-66 Conveyor American Dish Service Dishwasher...
  • Page 3 268-1200 40-41 268-1300 42-43 266-0700 44-45 266-0800 American Dish Service Req. Cabinet Assembly, ADC-66, L-R Cabinet Assembly, ADC-66, R-L Conveyor Drive & Tray Track Control, ADC-66, L-R Conveyor Drive & Tray Track Control, ADC-66, R-L Spray System Assembly, ADC-66, L-R...
  • Page 4 261-0300 Cabinet Assembly American Dish Service ADC-66 L-R...
  • Page 5 285-6202 285-6227 099-1024 285-6151 285-6201 285-6217 098-1414 285-6221 American Dish Service Description Filter Weldment, Wash Pump, w/Taper Filter w/O-Ring, Wash Pump Gasket, O-Ring, Pre-Wash, Wash, and Rinse Taper Plate, Wash Pump Filter, L-R Screen Weldment, Wash, Small Cover, Wash Manifold...
  • Page 6 261-0300 Cabinet Assembly American Dish Service ADC-66 L-R...
  • Page 7 285-6103 099-4502 098-1423 098-2404 285-6116 098-1414 285-6147 287-6157 American Dish Service Description Locknut, ¼-20, SS Hood Weldment, L-R Hood End Shield Weldment Curtain Rod, 5/16” x 20.5”, SS Curtain, 21” Wide x 17” Tall Curtain, 23” Wide x 11” Tall Curtain Rod, 5/16”...
  • Page 8 261-0400 Cabinet Assembly American Dish Service ADC-66 R-L...
  • Page 9 285-6228 099-1024 285-6151 285-6201 285-6216 098-1414 285-6220 American Dish Service Filter Weldment, Wash Pump, w/Taper Filter w/O-Ring, Wash Pump Gasket, O-Ring, Pre-Wash, Wash, and Rinse Taper Plate, Wash Pump Filter, R-L Screen Weldment, Wash, Small Cover, Wash Manifold Screen Weldment, Wash R-L, Large...
  • Page 10 261-0400 Cabinet Assembly American Dish Service ADC-66 R-L...
  • Page 11 099-4502 098-1423 098-2404 285-6116 098-1414 285-6127 287-6157 American Dish Service Locknut, ¼-20, SS Hood Weldment, R-L Hood End Shield Weldment Curtain Rod, 5/16” x 20.5”, SS Curtain, 21” Wide x 17” Tall Curtain, 23” Wide x 11” Tall Curtain Rod, 5/16” x 24”, SS...
  • Page 12 268-1000 Conveyor Drive & Tray Track American Dish Service Control, ADC-66 L-R...
  • Page 13 098-2708 285-6212 098-2404 285-6225 285-6224 098-8009 285-6214 American Dish Service Rocker Arm Weldment Slip Clutch Bar Weldment Spring, Slip Clutch Spacer, Rocker Arm Bushing, 1” OD x ¾” ID x 7/8” Lg Block, Pillow Bushing, RH Block, Base, Pillow Bushing...
  • Page 14 268-1000 Conveyor Drive & Tray Track American Dish Service Control, ADC-66 L-R...
  • Page 15 098-2506 098-2501 286-6178 286-6113 291-3011 288-1047 288-1053 American Dish Service Req. Tray Track Sequence Bar Weldment, Rinse Tray Track Sequence Bar Weldment, Wash Magnet Weldment, Tray Track Sequence Bar Bolt, ¼-20 x 1 1/8” Lg, HH, SS Locknut, ¼-20, SS Lockwasher, 5/16”, SS...
  • Page 16 268-1100 Conveyor Drive & Tray Track American Dish Service Control, ADC-66 R-L...
  • Page 17 098-2708 285-6212 098-2404 285-6223 285-6222 098-8009 285-6213 American Dish Service Rocker Arm Weldment Slip Clutch Bar Weldment Spring, Slip Clutch Spacer, Rocker Arm Bushing, 1” OD x ¾” ID x 7/8” Lg Block, Pillow Bushing, RH Block, Base, Pillow Bushing...
  • Page 18 268-1100 Conveyor Drive & Tray Track American Dish Service Control, ADC-66 R-L...
  • Page 19 098-2506 098-2501 286-6178 286-6113 291-3011 288-1047 288-1053 American Dish Service Req. Tray Track Sequence Bar Weldment, Rinse Tray Track Sequence Bar Weldment, Wash Magnet Weldment, Tray Track Sequence Bar Bolt, ¼-20 x 1 1/8” Lg, HH, SS Locknut, ¼-20, SS Lockwasher, 5/16”, SS...
  • Page 20 265-0900 L-R Spray System Assembly American Dish Service 265-1000 R-L Spray System Assembly(Shown) ADC-66...
  • Page 21 285-6169 289-6608 098-1423 285-6130 285-6198 285-6236 285-6237 American Dish Service Req. Upper Wash Arm Weldment Assembly Handle Weldment, Upper Wash Arm Mount Tee Plate Weldment, Upper Wash Arm Bracket, Upper Wash Arm Mount Lower Wash Arm Weldment Assembly Manifold Weldment, Inside Wash...
  • Page 22 265-0900 L-R Spray System Assembly American Dish Service 265-1000 R-L Spray System Assembly(Shown) ADC-66...
  • Page 23 Part No. Req. 285-6234 285-6235 288-1057 Tool 288-1055 Tool American Dish Service Description Spray Arm Weldment L-R, ADC-66, Lower Pre-Wash Spray Arm Weldment L-R, ADC-66, Upper Pre-Wash Tool, Spray Arm Pressure Tester, w/Gauge Tool, Spray Arm Pressure Tester, w/o Gauge...
  • Page 24 263-0100 Wash Pump Assembly American Dish Service ADC-66 L-R/R-L...
  • Page 25 263-0100 Wash Pump Assembly ADC-66 L-R/R-L Ref. Part No. Req. 291-1002 282-6301 089-6601 289-6606 098-2510 292-2001 289-6603 282-6303 284-6151 098-1613 098-2711 282-6302 289-6604 285-6153 289-6605 285-6154 285-6157 289-6607 292-1013 098-1423 098-2404 098-1614 098-2711 098-1514 098-2509 098-2710 098-1502 288-1048 Rep. American Dish Service...
  • Page 26 263-0300L-R / 263-0400R-L Rinse Pump Assembly American Dish Service ADC-66...
  • Page 27 098-1426 098-2404 098-2507 092-1002 288-1040 288-1049 288-1050 American Dish Service Req. Motor, 1/3 HP, 3 Phase Rear Housing, Pumped Rinse Plate, Pump Rinse Motor Support, w/Pad Pump Shaft, Pumped Rinse Set Screw, ¼-20 x 3/8” Lg Seal, Pumped Rinse Pump...
  • Page 28 263-0600 L-R Pre-Wash Pump Assembly 263-0700 R-L Pre-Wash Pump American Dish Service Assembly ADC-66...
  • Page 29 285-6192 285-6230 098-1607 098-1426 098-2404 098-2507 092-1002 098-2503 American Dish Service Description Motor, 1 ½ HP, 1 Phase, ADC-66 Rear Housing, Pre-Wash Suction Tube Extension Weldment, Pre-Wash Stud, 5/16-18 x 1 5/8”, SS Nut, 5/16-18, SS Seal, Pre-Wash Pump O-Ring, Pump...
  • Page 30 264-0500 L-R Control System Assembly 264-0600 R-L Control System Assembly ADC-66 American Dish Service...

  • Page 31: Control System Assembly

    291-3021 091-5010 291-5106 291-5104 291-9105 096-1002 096-1008 291-3011 291-3022 American Dish Service Description Control Box Weldment Control Box Mounts Bracket, Temperature Gauge Temperature Gauge, Wash and Rinse Tank Temperature Gauge, Final Rinse Terminal Block Power Box Weldment, R-L Cover Weldment, Control Box...
  • Page 32 264-0500 L-R Control System Assembly 264-0600 R-L Control System Assembly ADC-66 American Dish Service...
  • Page 33 Opt. 288-1051 Opt. 291-3015 Opt. 299-1010 Rep. 291-5111 Rep. American Dish Service Description Ground Lug Nameplate, ADS Gasket Material, Control Box (78”) Decal, NSF (244 Racks) Wall Chart, Cleaning Instructions, ADS Wire Harness, 3 Phase, ADC-66 Shield, Contactor Overload (Anti-Tamper)
  • Page 34 265-1100 L-R Water Inlet Assembly ADC-66 265-1200 R-L Water Inlet Assembly ADC-66 265-1200 R-L Water Inlet Assembly American Dish Service 265-1100 L-R Water Inlet Assembly...
  • Page 35 292-1002 292-1012 285-6147 285-6127 292-3010 392-3001 092-1068 292-3013 American Dish Service Description Fitting, ¾” Street Elbow, 90° Y-Line Strainer, ¾” Screen, Line Strainer, ¾” (Repair Part) Nipple, ¾” Close, Brass Fitting, Tee, ¾” x ½” x ½”, Brass Bracket, Plumbing Valve, Water Solenoid U-Bolt, ¼-20, SS...
  • Page 36 265-1100 L-R Water Inlet Assembly ADC-66 265-1200 R-L Water Inlet Assembly ADC-66 265-1200 R-L Water Inlet Assembly American Dish Service 265-1100 L-R Water Inlet Assembly...
  • Page 37 292-5003 Rep. 092-5016 Rep. 092-5017 Rep. American Dish Service Description Cap Assembly, Bonnet and Tube, Water Solenoid, ½” Valve, Less Coil, Water Solenoid, ½” Kit, Vacuum Breaker, Watts, ½” Cap, Vacuum Breaker, ½”, Watts Bonnet and Stem, Vacuum Breaker, Watts, ½”...
  • Page 38 268-1200 L-R Heater & Water Level Control American Dish Service ADC-66...
  • Page 39 285-6162 291-9003 291-3012 286-6175 098-2201 098-2510 098-1516 098-2501 289-6613 286-6231 286-6241 American Dish Service Req. Float Box Weldment, LH Float Switch w/Holder and Button Rep. Float Switch Only Rep. Float Switch Holder Rep. Button, Float Switch Holder Float Box Cover...
  • Page 40 268-1300 R-L Heater & Water Level Control American Dish Service ADC-66...
  • Page 41 285-6162 291-9003 291-3012 286-6175 098-2201 098-2510 098-1516 098-2501 289-6613 286-6231 286-6241 American Dish Service Req. Float Box Weldment, LH Float Switch w/Holder and Button Rep. Float Switch Only Rep. Float Switch Holder Rep. Button, Float Switch Holder Float Box Cover...
  • Page 42 266-0700 L-R Drain System Assembly American Dish Service ADC-66...

  • Page 43: Drain System Assembly

    289-6605 089-6601 285-6211 285-6207 285-6175 289-6612 285-6209 092-1084 American Dish Service Description No-Hub Connector, Fitting to Pipe Intake Tube/Sump Weldment, Wash Drain Socket Weldment, Wash No-Hub Connector, Pipe to Pipe Gasket, O-Ring, Drain Socket Flange Gasket, Wash Pump Intake Flange Gasket, Sump 2”...
  • Page 44 266-0800 R-L Drain System Assembly American Dish Service ADC-66...
  • Page 45 289-6605 089-6601 285-6210 285-6206 285-6175 289-6612 285-6208 092-1084 American Dish Service Description No-Hub Connector, Fitting to Pipe Intake Tube/Sump Weldment, Wash Drain Socket Weldment, Wash No-Hub Connector, Pipe to Pipe Gasket, O-Ring, Drain Socket Flange Gasket, Wash Pump Intake Flange Gasket, Sump 2”...
