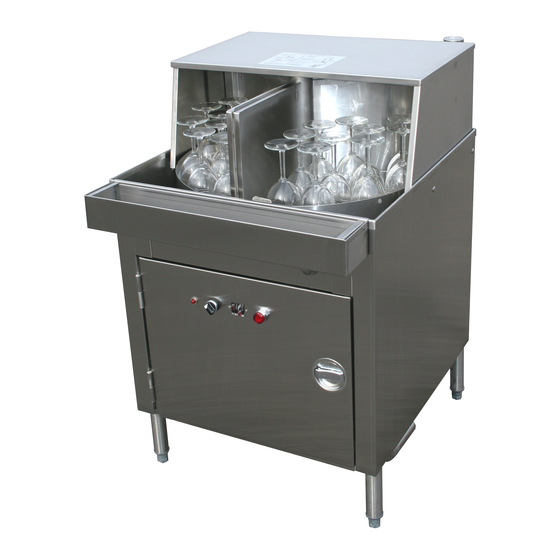

American Dish Service ASQ Service Manual
Hide thumbs
Also See for ASQ:
- Installation and operation instructions manual (7 pages) ,
- Installation instructions manual (16 pages)
Related Manuals for American Dish Service ASQ
Summary of Contents for American Dish Service ASQ

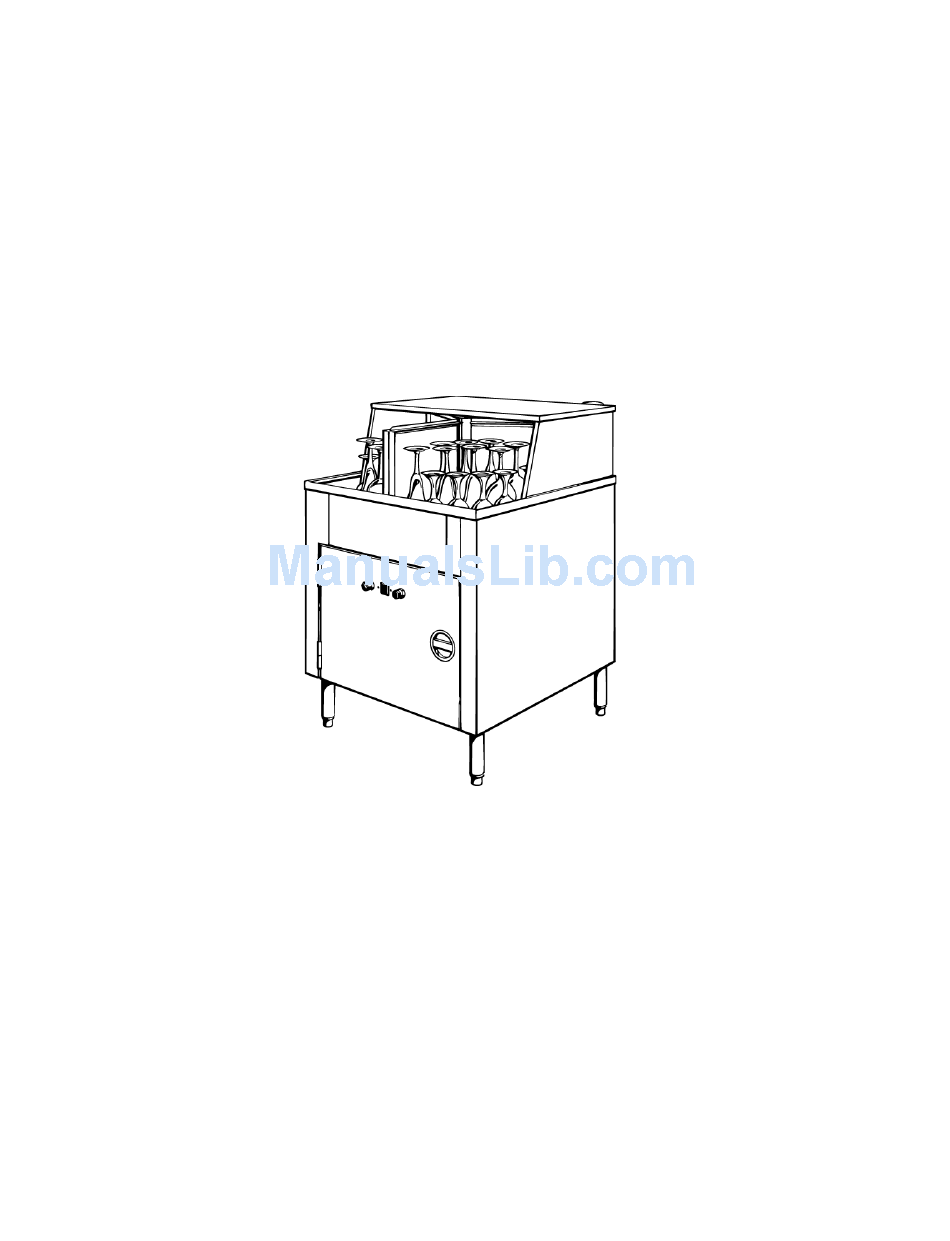

- Page 1 Effective: June, 2008 American Dish Service ADS MODEL ASQ GLASSWASHER 900 Blake Street SERVICE MANUAL Edwardsville, Kansas 66111 (913)-422-3700 © 05/08...
- Page 2 IMPORTANT: American Dish Service provides this information as a service to our customers. Keep all instructions for future reference. Although ADS will make every effort to make sure the information in this service manual is correct and up-to-date, ADS does not certify that this is the case, and should you decide to utilize this manual, you do so at your own risk.
Need help?
Do you have a question about the ASQ and is the answer not in the manual?
Questions and answers
Spray arm clogged bout every 3 months calcium don't know,cleaner run thru system?
To clean the spray arm of an American Dish Service ASQ and prevent calcium clogs:
1. Turn off and drain the machine using the drain switch on the control box.
2. Remove the hood top by lifting it up about one inch and sliding it toward you.
3. Remove the carousel by lifting it 1½ inches to clear the pivot pin, then pull it toward you.
4. Remove the splash shields by lifting the inner edge and sliding them toward the center.
5. Lift the spray arm off its pivot to remove it.
6. Clean the spray arm thoroughly to remove any calcium buildup.
7. Reassemble the components in reverse order after cleaning.
This answer is automatically generated
