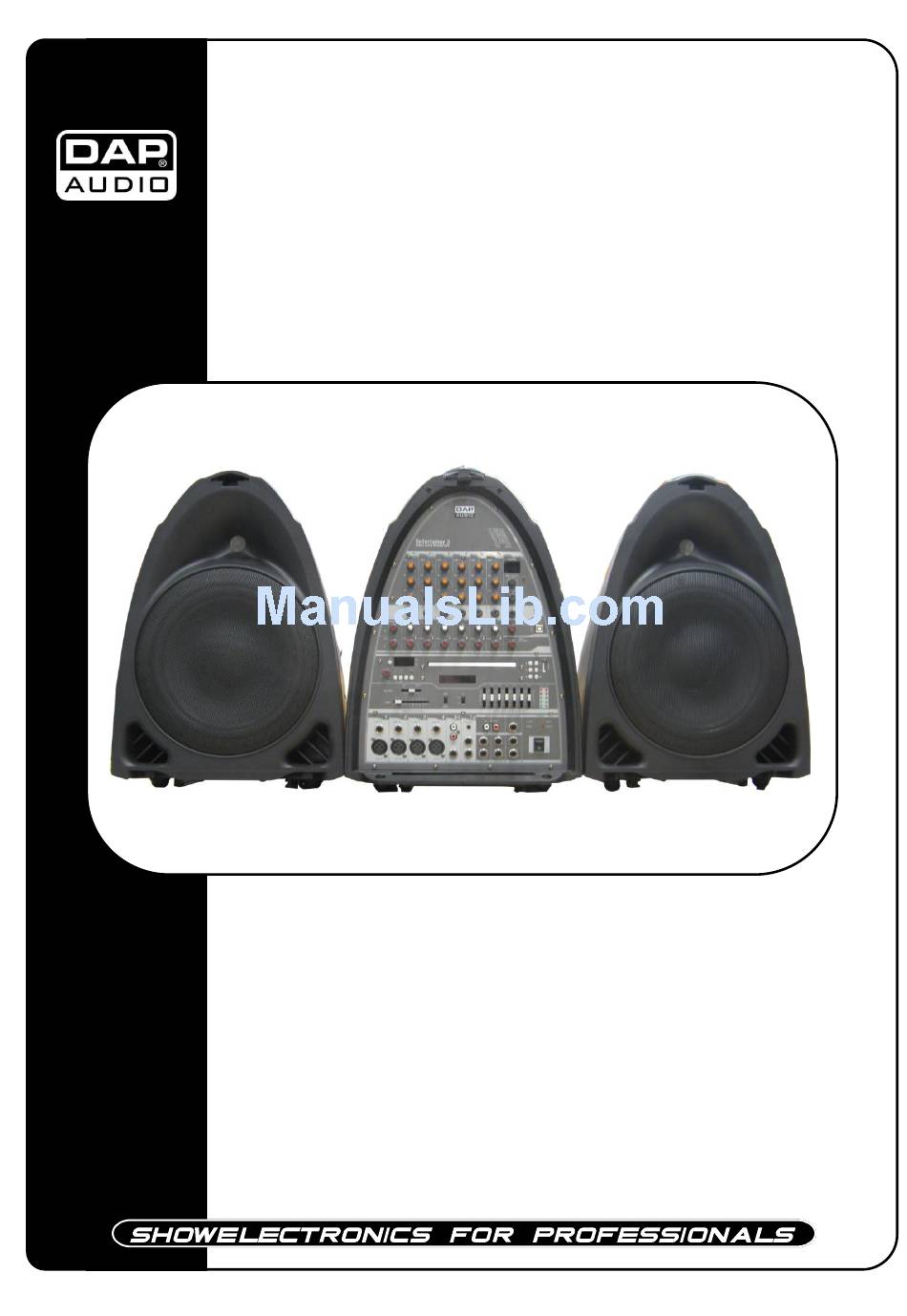

- Page 1 Entertainer Mobile Set Pro ORDERCODE D3207 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Dap Audio Dap Audio Entertainer Mobile Set Pro™ Product Guide Warning..................................Unpacking Instructions............................Safety-instructions..............................Operating Determinations............................. Return Procedure..............................Claims..................................Description..................................Overview.................................. Mixer channels................................. Master section................................. DSP section................................Patch panel................................DVD/CD/USB-stick player............................Tuner..................................USB port and wireless receivers..........................Wireless Microphone/beltpack..........................Remote Control............................... Installation.................................. - Page 4 Connection Cables………..…………………………………………………….…………………..….…..……....Approval..................................Declaration of conformity............................Maintenance................................Replacing a fuse................................Troubleshooting................................Product Specifications..............................
-
Page 5: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 6: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description

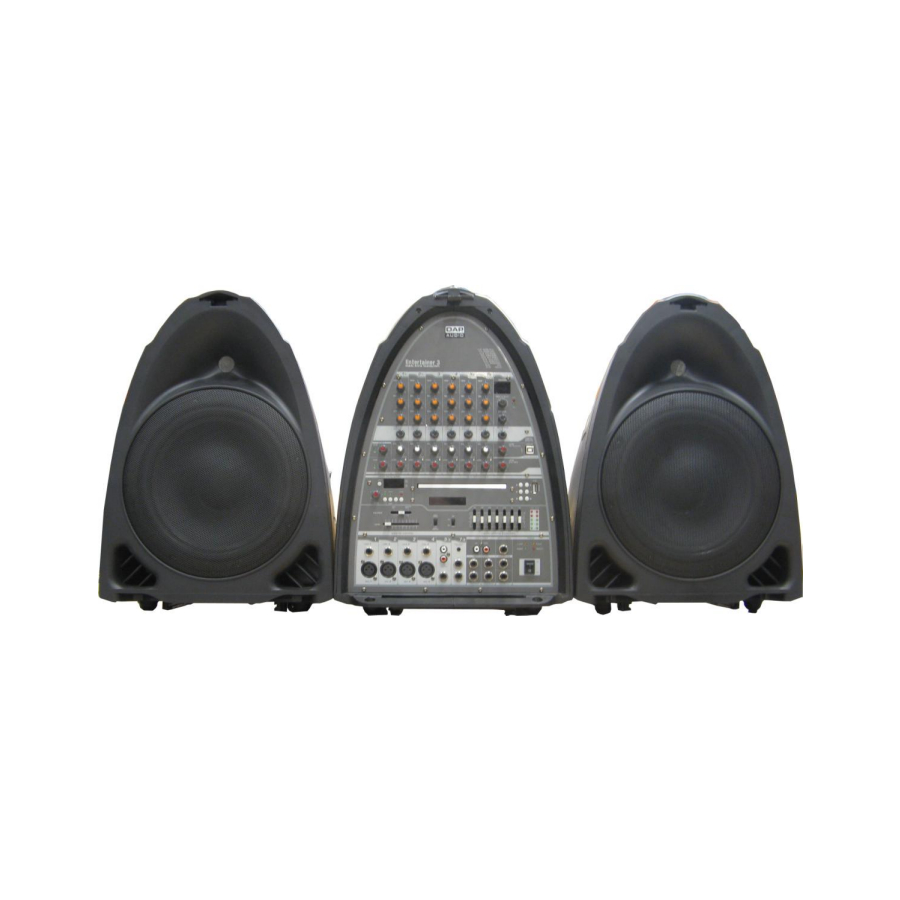

Description of the device Features The Entertainer Mobile Set Pro is a truly multifunctional soundsystem which is ideal for presentations, schools, gyms and even mobile DJs. Due to its sturdy and compact design it can fit in any car and is therefore ideal for many mobile applications. -
Page 9: Mixer Channels
Mixer channels 1. Level control Adjust the volume level of each channel. Rotating the control clockwise increases the volume of each channel, counterclockwise decreases the output volume. You can adjust this volume control knob after the main volume has been set up. 2 / 3 / 4. -
Page 10: Master Section
Master section 13. Master Fader This fader controls the Left and Right output level. 14. Balance control In stereo mode, using the balance control allows you to change the output signal’s position within the stereo image. In center position, the audio signal is equal for both the left and right output. In dual mode you can adjust the amount of signal send to the main output and the monitor output. -
Page 11: Patch Panel
20. DSP Selection Knob Use this dial for selecting an effect preset. Pushing the dial activates the selected preset. 21. Eff Level Control Rotating the knob clockwise increases the input level and counter clock wise decreases the input level. When the Peak (23) LED lights, decrease the input level. Don’t forget to adjust the DSP output level appropriately. -
Page 12: Dvd/Cd/Usb-Stick Player
36/38. Power and Protect Indicators The green Power LED indicates the unit is switched on. The red Protect LED Indicates that the power amp is in Protect mode (speakers disconnected by the output relay). 37. Clip Indicators The orange LED indicates the clipping status for the left and right amplifier outputs. 39. -
Page 13: Tuner
50. Composite Video Out Connect the composite video input of your TV-set to this output. 51. L/R button This button allows you to assign the DVD/MP3 player’s left channel, right channel or both (stereo) channels to the main mix. Tuner 52. -
Page 14: Usb Port And Wireless Receivers
USB port and wireless receivers 56. USB/Aux return level control Controls the volume level for the USB port (57) and Aux return (39) input. Note: If the Main stereo/monitor switch (15) is set in main monitor position, the tuner signal will be routed to the Main output only and will not be routed to the monitor output. -
Page 15: Wireless Microphone/Beltpack
Wireless Microphone/Beltpack 61. Microphone On LED The red LED will light up briefly when switching the microphone on or off. 62. Power On switch Use this switch to turn the microphone on. 63. Battery compartment Access the battery compartment by removing the cover. 64. -
Page 16: Remote Control
Remote control 69. Power Button Toggle power Standby and On 70. Goto Button Play from a specified location 71. Subtitle Button Change subtitle 72. 3D Button Gives you access to surround sound options 73. Mute Button Mute audio 74. Clear button Clear input numbers 75. -
Page 17: Installation
Installation Remove all packing materials from the Entertainer mobile set active. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 18: Fastforward/Reverse
Fast Forward/ Reverse 1. Press Fast Forward (102) to go fast forward on the disc. The speed changes every time Fast Forward (102) is pressed. 2. Press Play/Pause (47, 78) to return to normal playback. 3. Press Fast Reverse (86) to go fast forward on the disc. The speed changes every time Fast Reverse (86) is pressed. -
Page 19: Audio Channel Selection
Audio Channel Selection Pressing Audio (75) button allows you between different types of sound reproduction for the DVD. Wireless microphone/beltpack operations Inserting/replacing the battery Turn/slide the battery compartment cover in the direction of the arrow and remove the cover. ... - Page 20 A. System Setup This menu is used for setting up the TV screen format, video functions and DVD functions and includes: 1. TV system 2. Screen saver 3. Video 4. TV type 5. Password 6. Default 7. Resume 1. TV system In this submenu you can select the format of the TV to which the DVD is connected you can choose between: NTSC...
- Page 21 B. Language Setup Includes: 1. OSD language 2. Audio Language 3. Menu language 1. OSD Language This function allows you to select a language for the setup menu. 2. Audio Language This function allows you to select a language for the setup menu. 3.
-
Page 22: Audio Setup Menu
F. Digital setup Includes: 1. OP mode 2. Dynamic range 3. Dual mono Audio Setup Menu Pressing the 3D (72) button gives you access to the 3D menu which includes: A. SRND B. EQ C. Band D. Key A. SRND Lets you apply 5 preset reverbs effects to your audio signal and thus creating a more 3 dimensional sound image. -
Page 23: Before Switching Off The Power
D. Key Allows you to change the key of your audio signal. Before switching off the power When you have finished using the CD player. Press the Eject (45, 93) button. When the disc is completely ejected, take out the disc without using force. Now you can safely switch off the power. CAUTION: •... -
Page 24: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 26: Approval
Approval The DAP D3207 is a Class II wireless device. Microphone: 857,55 Mhz for use in: Belgium, Germany, Hungary, Luxemburg, Poland, Romania, Sweden, Switzerland, United Kingdom. Beltpack: 864,80 Mhz for use in: Denmark, Germany, Greece, Luxemburg, Netherlands, Norway, Portugal, Romania, Slovakia, Sweden, Switzerland, United Kingdom. Exclusion of liability The frequency tables in this publication are made according to national laws and regulations. -
Page 27: Declaration Of Conformity
Supplier Details Name Highlite International BV Address Vestastraat 2 6468EX Kerkrade The Netherlands Product Details Product Name Entertainer Mobile Set Pro Ordercode D3207 Trade Name DAP AUDIO Applicable Standards Details 1 EMC Di 1. EMC Directives : 2004/108/EC 2004/108/EC EN 55013: 2001+A1: 2003+A2: 2006 EN 55020: 2007 EN 61000-3-2: 2006+A1: 20098+A2: 2009 EN 61000-3-3: 2008... - Page 28 Suppliers Details Name Highlite International BV Address Vestastraat 2 6468EX Kerkrade The Netherlands Product Details Product Name Entertainer Mobile Set Pro Ordercode D3207 Trade Name DAP AUDIO Applicable Standards Details R&TTE Di R&TTE Directives : 1999/5/EC 1999/5/EC Applied Specifications / Standards EN 301489-1 V1.9.1: 2011 EN 301489-9 V1.9.1: 2007 EN 300422-1 V1.3.1: 2011...
-
Page 29: Maintenance
Maintenance The DAP Entertainer Mobile Set Pro requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 30: Product Specifications
Product Specification Frequency Response： 20 Hz - 20KHz 1dB (at send out) 45 Hz - 20KHz -3dB (maximum output of the speaker) Distortion：< 0.05%, 20 Hz - 20KHz 1dB rated output S/N：> 80dB @ 1W . “1 A” WTD Output Power：150W / ch rated power, 8 OHM, both channels driven with THD < 1% Input Impedance: (channels1,2,3,4): ”Mic”：2 KΩ... - Page 31 2011 Dap Audio.
