Transportation; Included Items; Transport Locks; Single Flight Case - Martin MAC 2000 Performance II User Manual

T
RANSPORTATION
Important! Release the transport locks before operating the fixture.

Included items

The MAC 2000 Performance II is shipped in a 1 or 2 unit flight
case that contains the following items.
• User manual
• 2 x 20 A main fuses (for use with 100-130 V local power supply)
• 2 x 15 A main fuses (for use with 200-250 V local power supply)
• 4 additional animation wheels
• 2 aluminium gobos
• 2 clamp attachment brackets
• XLR cable

Transport locks

The head and yoke may be locked for transportation and service. The locks are shown in Figure 1. The fixture must be
unlocked before operation.

Single flight case

Unpacking the fixt ure
1 Remove the top of the flight case.
2 With one person on each side, lift the fixture out of the bottom of
the flight case.
3 Release the pan and tilt locks before operating.
Packing the fixt ure
1 Disconnect the fixture from power and allow it to cool.
2 Lock the head and yoke in the position shown in Figure 2.
3 Place the fixture in the bottom of the flight case. Place the top
section over the fixture without forcing.

Transportation

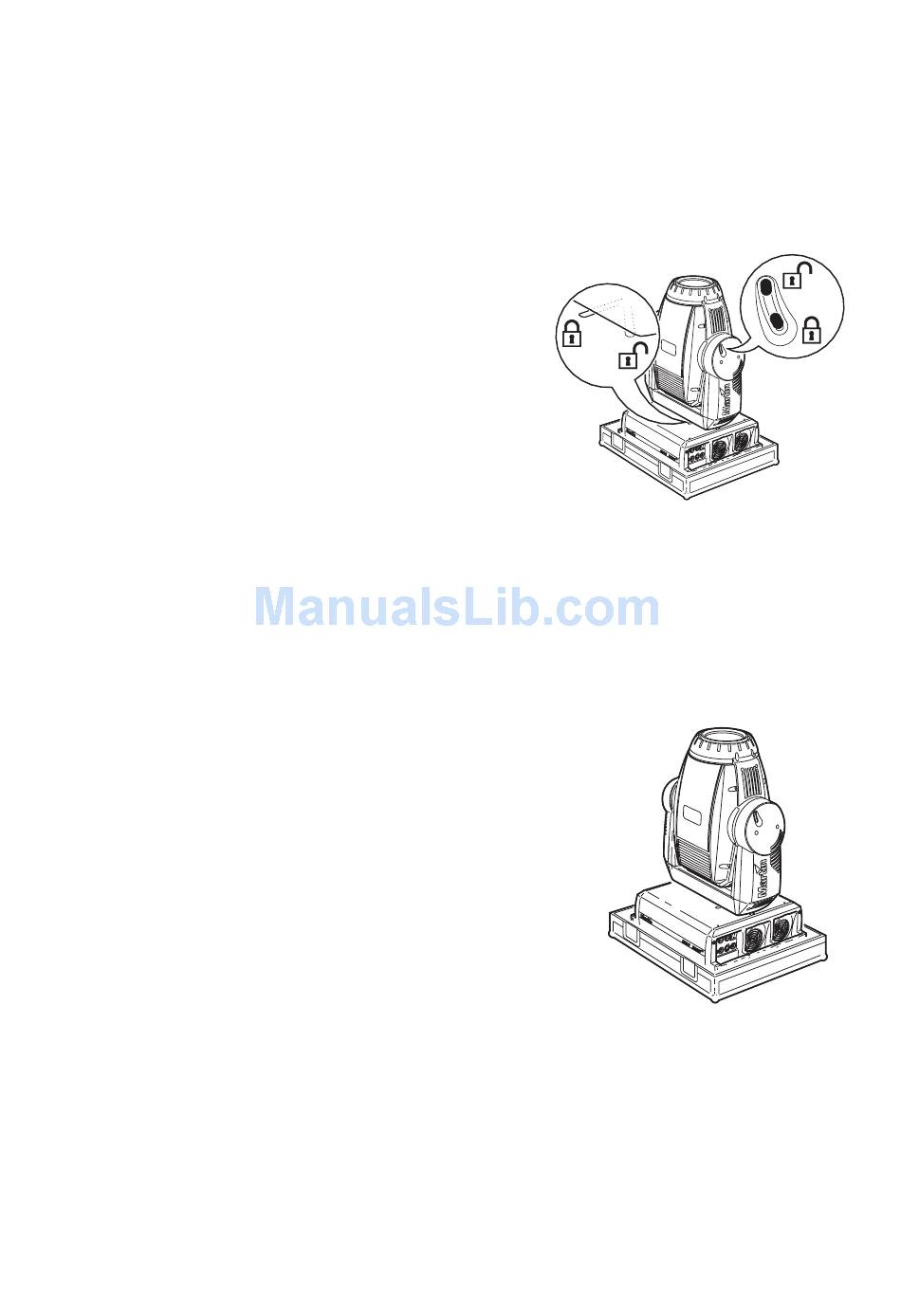

Figure 1: Pan and tilt locks
Figure 2: Single unit transport position
