RANSPORTATION
Important! Release the transport locks before operating the fixture.

Included items

The MAC 2000 Profile II is shipped in a cardboard box or in a 1
or 2 unit flight case that contains the following items.
• User manual
• 2 clamp attachment brackets
• 2 x 20 A main fuses (for use with 100-130 V local power supply)
• 2 x 15 A main fuses (for use with 200-250 V local power supply)
• XLR cable

Transport locks

The head and yoke may be locked for transportation and service.
The locks are shown in Figure 1. The fixture must be unlocked
before operation.

Cardboard box

Instructions for removing models that have been shipped in a cardboard box are printed on the outside of the box. The
cardboard box is not designed for repeated use and for transportation of the fixture we strongly recommend the use of
one of our flight cases.

Single flight case

Unpacking the fixture
1 Remove the top of the flight case.
2 With one person on each side, lift the fixture out of the bottom
of the flight case.
3 Release the pan and tilt locks before operating.
Packing the fixture
1 Disconnect the fixture from power and allow it to cool.
2 Lock the head and yoke in the position shown in Figure 2.
3 Place the fixture in the bottom of the flight case. Place the
top section over the fixture without forcing.
Figure 2: Single unit transport position

Transportation

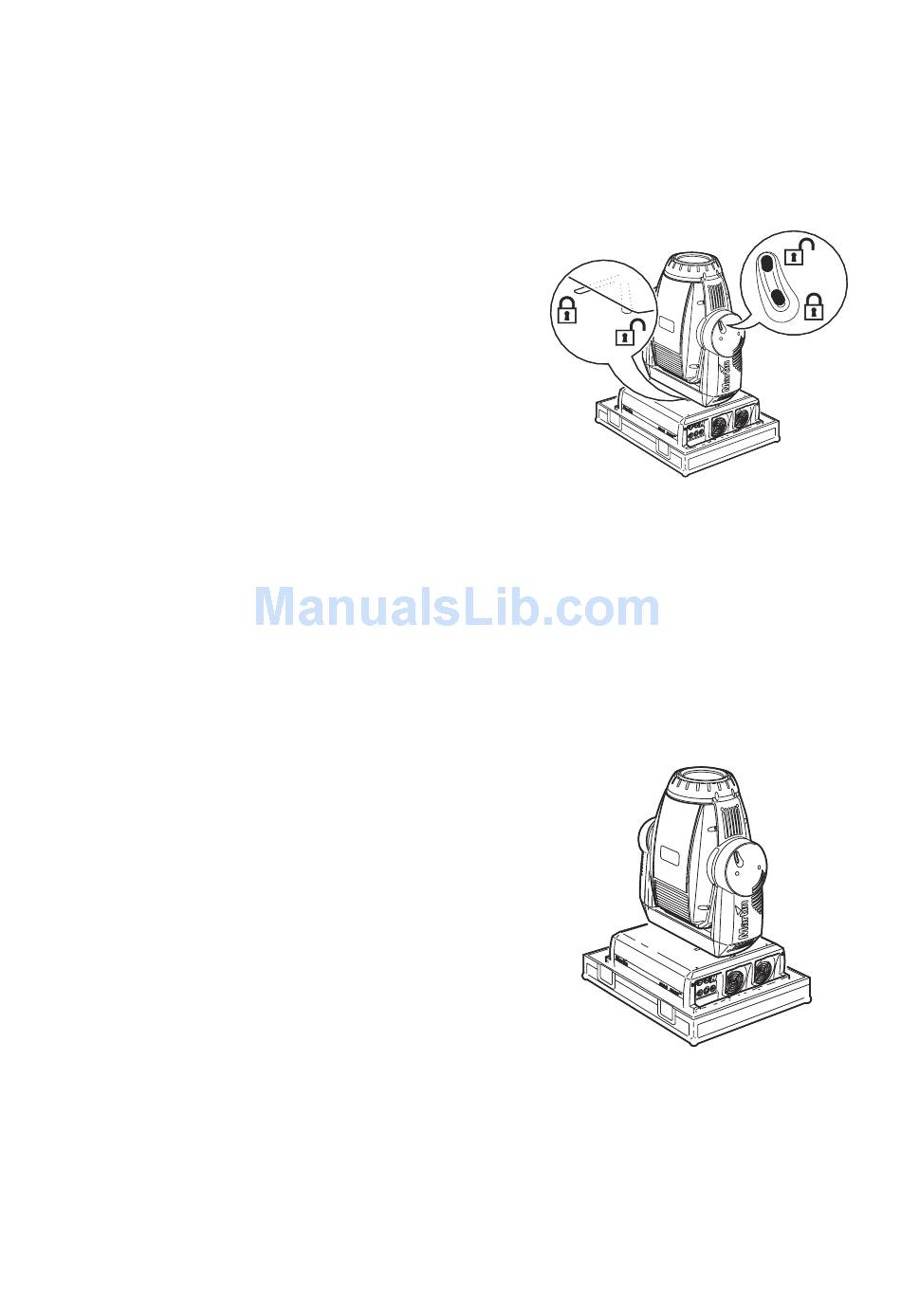

Figure 1: Pan and tilt locks
