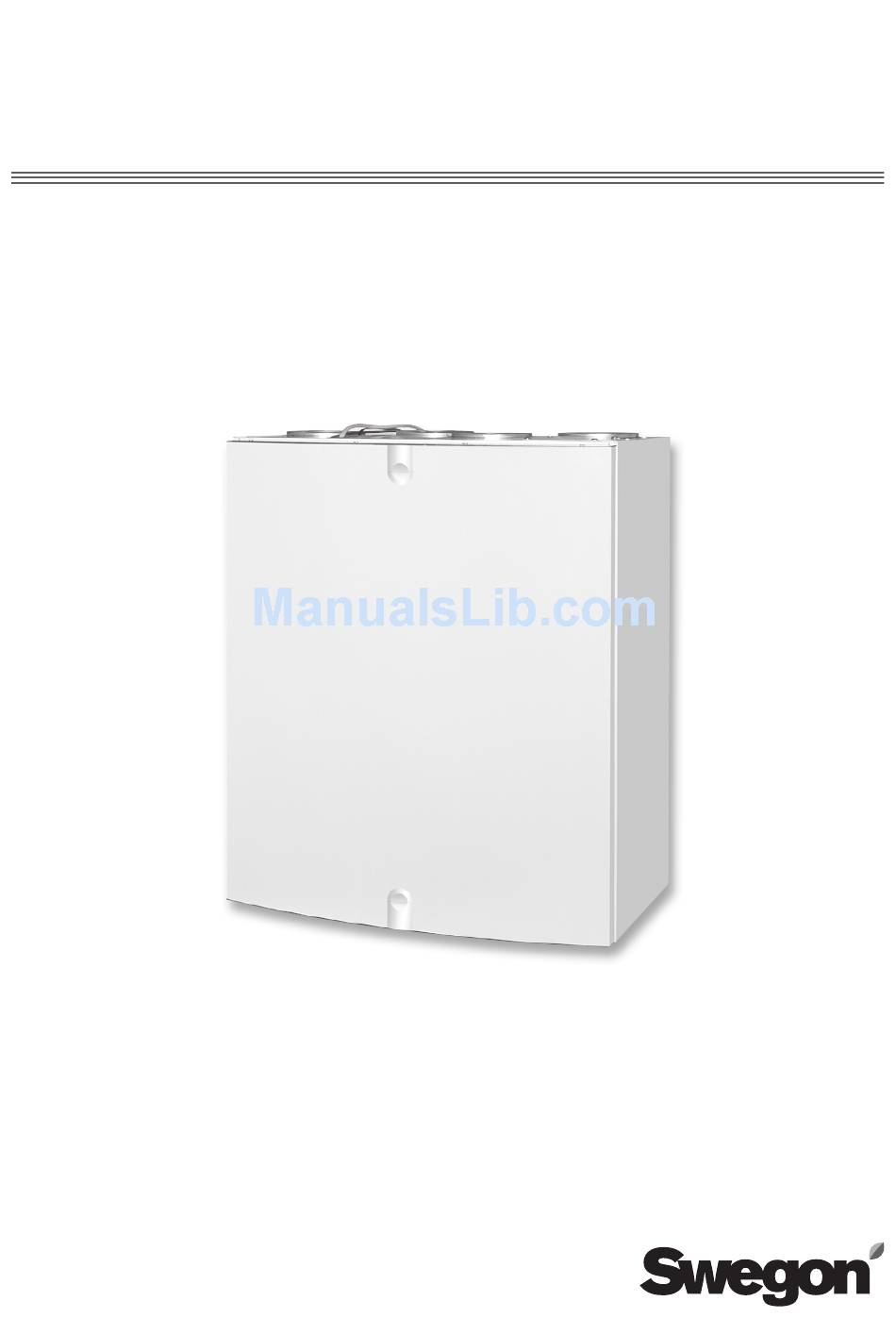

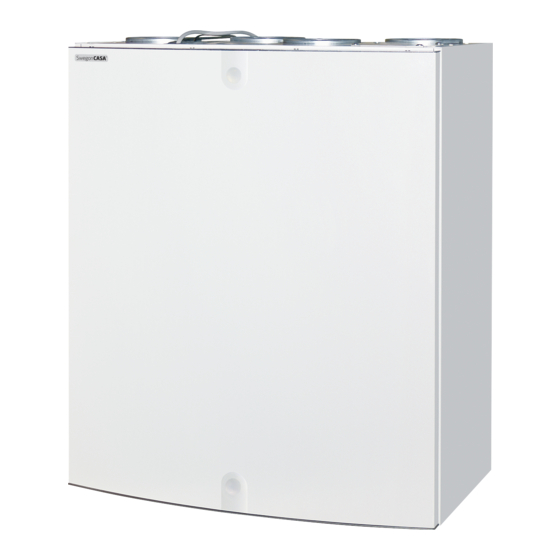

- Page 1 SwegonCASA Instructions for Installation, Operation and Maintenance...
-
Page 2: Table Of Contents
3.5.9 Week timer ..............15 Plant data to be given when requesting service 3.5.10 Contrast ..............15 Project planning 3.5.11 Device mode .............15 See separate project planning instructions, www.swegon.com. N.B.! The manual was originally written in Finnish. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 3: Important Information
You all work that produces large quantities of grind- should therefore make an appraisal of ing dust or other impurities has been completed. whether a low airflow is sufficient while Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 4: Control From A Premium Cooker Hood
Indicating lamp The indicating lamp on the control panel indicates the Install and service functions and alarms of the ventilation unit with various (See Section 3.6) colours. This is described in Section 5. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 5: To Replace The Filters
Alarm or a service reminder. The alarm text is shown in the display. Contact service! • The indicating lamp indicates certain unit functions with other colours. See Section ”3.3 Premium control panel” Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 6: Important Information
See also the dimensional drawings in Section 7, Technical data. To install a cooker hood in the kitchen, directly against the Installation in a scullery. ventilation unit. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 7: General
Wall mounting bracket’s dimensions studs to enable it to support the weight of the unit. Swegon also recommends that the wall be insulated with mineral wool or similar insulation for preventing Horizontal reinforcement sound from propagating to other rooms. -
Page 8: Cooker Hood Directly Connected To The Ventilation Unit
The duct between the cooker hood and the ventilation unit must be mounted in such a way that makes it pos- sible to clean it. ∅ ∅ 100 mm 25 mm www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 9: Bypass For The Kitchen On The Top Of The Ventilation Unit
20 mm dia. tube as a precaution in case the 1. Force open the cable brackets at the top and the bottom need should arise to replace it in the future. with a screwdriver. Swegon reserves the right to alter specifications. www.swegon.com/casa... - Page 10 To dismantle the front plate on a Premium control panel. To connect the modular cable. The extra contact is used for connection of an extra control panel. www.swegon.com/casa Swegon reserves the right to alter specifications.
-
Page 11: Ducts
For this reason, Swegon does not offer any general recommendations. Most manufactur- ers of insulation material offer calculation programs for the calculation of sufficient and It is essential that the ventilation correct insulation. -
Page 12: Description Of Functions
Premium control panel.) switched in from a control panel or a Premium cooker hood. A separate fireplace switch (push button) can be installed in another place, e. g. next to an open www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 13: Recotite
30 l/s, the cover plate supplied with the unit should be fitted on top of the ro- tor to ensure normal operation, airflow veloci- ties and the efficiency of the unit. Cover plate Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 14: Application
5. Flashing red LED: The automated protection system has stopped the fans due to a malfunction. 1. Steady green glow: The ventilation unit is operating normally. 6. Red glow: Alarm or a service reminder. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 15: Start Menu
Shows the model of the ventilation unit. heat exchanger and air heater are automatically activated in order for the desired temperature to be reached. The factory value of the supply air temperature is 17 °C. Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 16: Clock
Off. Select 10 °C as the value for Outdoor air temp. This actuators or circulation air regulation. means that the air heater will not be activated, when the outdoor air temperature exceeds 10 °C. The temperature limit can be changed. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 17: Service
• Clean the inner surfaces of the ventilation unit, if needed. • Check that the condensate discharge outlet is not clogged and check its outflow by pouring water on the bottom of the ventilation unit. Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 18: Alarms And Troubleshooting
An excessively high temperature can also be due to the supply air fan having stopped or that the temperature sensor has been shaken loose from its position in the fan intake. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 19: List Of Components
F56251 Set of filters 1 pc. exhaust air, F7 P-RO85-FS 1 supply air filter, F7 Bypass for kitchen Front plate, inlet, R/L 602166 Front plate, outlet, R/L 602165 Front access panel 602164 Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 20: Technical Data
Sound emitted to extract air duct Fan setting Sound power level broken down into octave bands, L , dB Weighted together wokt sound power level, 1000 2000 4000 8000 , dB (A) www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 21: Wiring Diagram, Ventilation Unit And Cooker Hood
Ventilation unit: 250 W, 1.1 A (with optional equipment 750 W, 3.3 A) ILMO Premium Classic cooker hood: 15 W, 0.1 A Premium Swing cooker hood: 45 W, 0.2 A Optional equipment Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 22: Wiring Diagram, Optional Equipment
*) One of the following functions: Connect negative pressure compensation or boost to the BOOST/COMP contact. A sepa- rate function can also be connected to input 4 on the DDC terminal row. See DDC. www.swegon.com/casa Swegon reserves the right to alter specifications. - Page 23 • Activate control of the fan speed via DDC from the: installation and service/Control/DDC/Fan control menu. 24V P2 P1 0 Closed contact = Activation of the separate function Open contact = Normal use of the separate function Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 24: Control Diagram
Contact for timer for the cooker hood damper Supply air filter Extract air filter Heat exchanger Supply air fan Extract air fan *) The electric air heater is optional equipment for Model R85. www.swegon.com/casa Swegon reserves the right to alter specifications. -
Page 25: Dimensions
Each item of optional equipment is supplied with its own instructions for use. ∅ 125 ∅ 100 Duct Connections Supply air Extract air Outside air Exhaust air Extract air cooker hood Wall mounting bracket Swegon reserves the right to alter specifications. www.swegon.com/casa... -
Page 26: Record Of The Settings
Fireplace function (with fireplace switch) Boost (with extra timer or presence detector) Input, heat exchange limit Min. temperature 12 °C Neutral zone 3 °C Outdoor temperature limit, for activation of air heater 10 °C www.swegon.com/casa Swegon reserves the right to alter specifications. - Page 27 Write down the unit-specific data here (on the identification plate of the ventilation unit) for use when you contact a service company. Preset by: Date: Remember to explain the use of the item of optional equipment and how to service it to the user/caretaker! Swegon reserves the right to alter specifications. www.swegon.com/casa...
-
Page 28: Guarantee Conditions
(= written receipt of purchase). After the guaran- tee period has expired, guarantee claims, which have not been submitted in writing prior to the expiration date of the guarantee, are not valid. www.swegon.com/casa Swegon reserves the right to alter specifications. - Page 29 EN 55014-2:1997 +A1:2001 +A2:2008 EN 61000-3-2:2006 EN 61000-3-3:2008 Person authorized to compile the technical documentation: Name: Rami Wiberg Address: Asessorinkatu 10, 20780 Kaarina, FINLAND Email: rami.wiberg@ilto.fi Date: Kaarina 01.11.2010 Signature: Ilari Niittymäki Swegon ILTO Oy Swegon reserves the right to alter specifications. www.swegon.com/casa...
