Swegon CASA
Asennusohje | Installationsanvisning | Installasjonsveiledning | Installation instruction

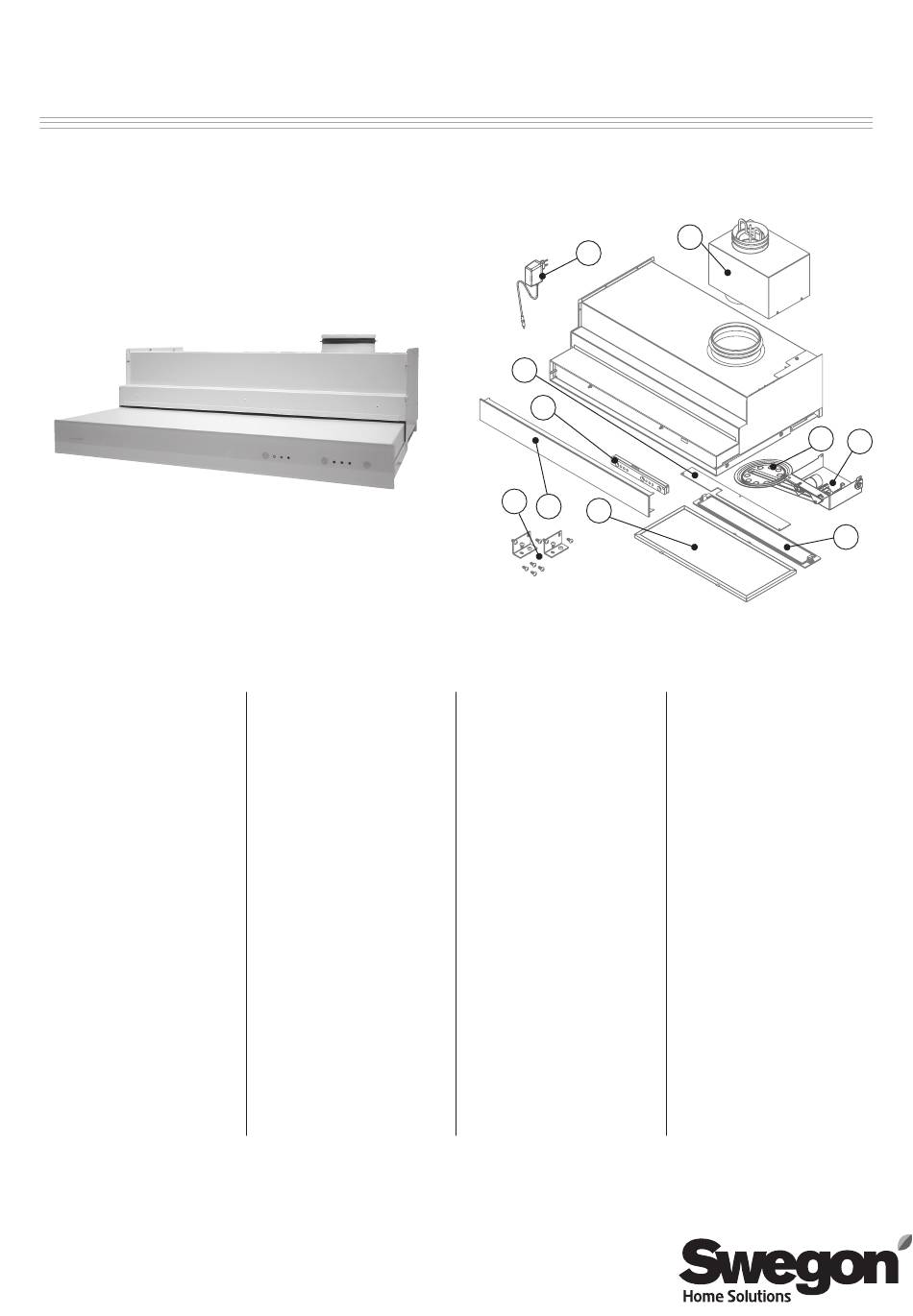

Osaluettelo
1.
LED-paneeli
2.
Kosketuspaneelin elektroniikka
3.
Etupaneeli
4.
Rasvasuodatin
5.
LED-suojalasi
6.
Sulkuläppä varrella
7.
Sähkölaatikko
8.
Asennustarvikkeet
9.
Äänenvaimenninlaatikko
(Salsa Central)
10. Teholähde: 24 V, 12 W, 0,5 A
Varaosat
• Rasvasuodatin (1 kpl): 610002
• LED-valon suoja: 613523
• LED-paneeli: 603086
Liitäntätehot
• Teholähde: 24 V, 12 W, 0,5 A
• Valaisinteho: 8 W
• Kokonaisteho: 12 W
Salsa_c-m/240418
Salsa
®
Komponentförteckning
1.
LED-panel
2.
Elektronik för pekpanel
3.
Frontpanel
4.
Fettfilter
5.
Skyddsglas för LED-belysning
6.
Avstängningsspjäll med arm
7.
Apparatlåda
8.
Monteringsdetaljer
9.
Ljuddämparlåda
(Salsa Central)
10. Nätadapter: 24 V, 12 W, 0,5 A
Reservdelar
• Fettfilter (1 st.): 610002
• Skydd för LED-belysning: 613523
• LED-panel: 603086
Anslutningseffekter
• Nätadapter: 24 V, 12 W, 0,5 A
• Belysningseffekt: 8 W
• Totaleffekt: 12 W
10
1
2
8
3
4
Komponentliste
1.
LED-panel
2.
Elektronikk for pekeskjerm
3.
Frontpanel
4.
Fettfilter
5.
Beskyttelsesglass for
LED-belysning
6.
Avstengningsspjeld med arm
7.
Apparatboks
8.
Monteringsdetaljer
9.
Lyddemperboks
(Salsa Central)
10. Nettadapter: 24 V, 12 W, 0,5 A
Reservedeler
• Fettfilter (1 stk.): 610002
• Beskyttelse for LED-belysning:
613523
• LED-panel: 603086
Tilkoblingseffekter
• Nettadapter: 24 V, 12 W, 0,5 A
• Belysningseffekt: 8 W
• Totaleffekt: 12 W
9
6
5
List of components
1.
LED panel
2.
Electronics for touch panel
3.
Front panel
4.
Grease filter
5.
Protective glass for LED lighting
6.
Shut-off damper with arm
7.
Control box
8.
Assembly parts
9.
Sound attenuator box
(Salsa Central)
10. Mains adapter: 24 V, 12 W,
0.5 A
Spare parts
• Grease filter (1 pcs.): 610002
• Protection for LED lighting:
613523
• LED panel: 603086
Connection outputs
• Mains adapter: 24 V, 12 W,
0.5 A
• Lighting output: 8 W
• Total output: 12 W
7
