INSTALLATION – VENTED TO THE OUTSIDE
3
MOUNTING HOOD TO BOTTOM OF
CABINET (Continued)

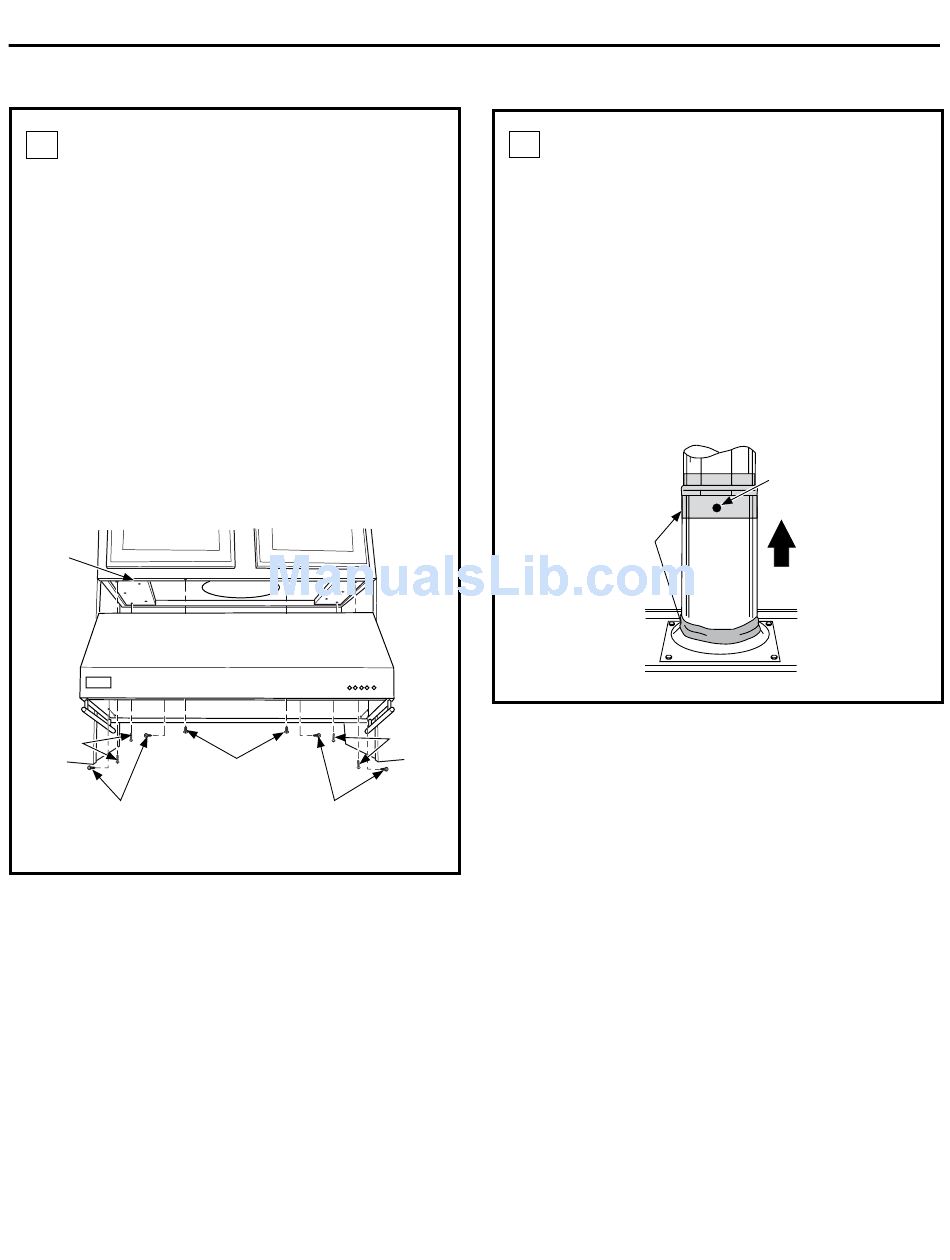

Hood Installation without Riser:
• Install the damper assembly on top of the hood
with 4 supplied Phillips screws.
• Lift the hood under the cabinet. Align the hood
and cabinet mounting holes. Use 4 supplied
wood screws and washers to secure the hood to
the cabinet.
• Drill two 1/8" pilot holes in the cabinet flange. Se-
cure with 2 additional wood screws, supplied. Be
careful when driving screws into the front flange.
• Install 4 wall screws into the anchors or studs to
complete the hood mounting.
Cabinet
flange
Mounting
screws
Additional screws
to cabinet flange
Wall screws
and washers for
anchors or studs
Installation Instructions
Mounting
screws
Wall screws
and washers for
anchors or studs
13
4 CONNECTING DUCTWORK
• Install the ductwork by making connections in the
direction of the airflow.
• Secure joints in ductwork with sheet metal screws,
being sure to allow clearance for damper flaps to
open and close.
• Wrap all duct joints with aluminized duct tape for
an airtight seal.
• Use aluminized duct tape to secure the flange
connection. Reach inside the hood and push the
damper up to be sure it moves freely.
Aluminized
duct tape
Screw
Air flow
