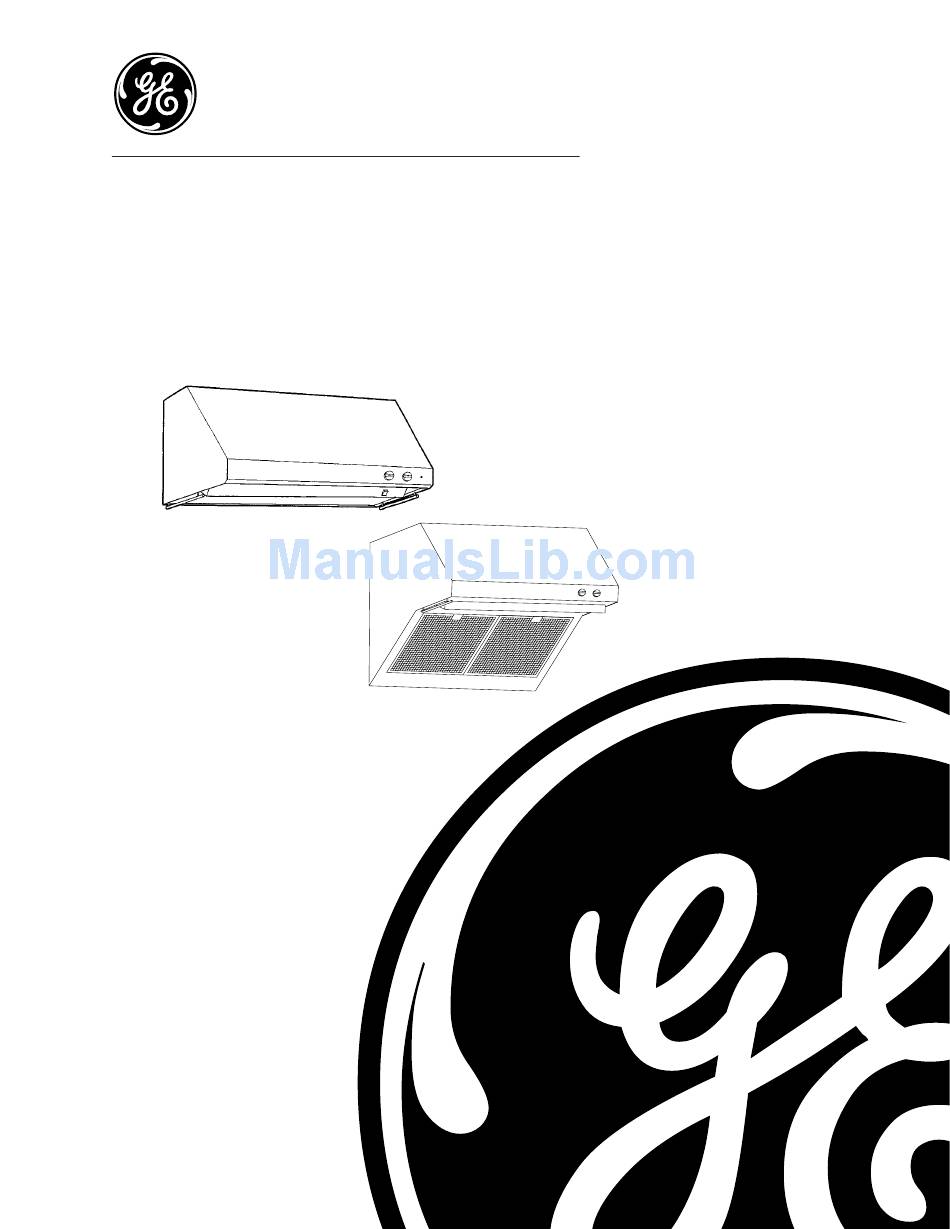

- Page 1 GE Consumer Products TECHNICAL SERVICE GUIDE 2003 Monogram 30-, 36-, and 48 in. Stainless Steel Hoods MODEL SERIES: ZV30RS ZV30SS ZV30TS ZV36RS ZV36SS ZV36TS ZV48RS ZV48SS ZV48TS Technical Consultant: Tom Ledbetter Cincinnati Zone PUB # 31-9107 08/03...
- Page 2 If grounding wires, screws, straps, clips, nuts, or washers used to complete a path to ground are removed for service, they must be returned to their original position and properly fastened. GE Consumer Products Technical Service Guide Copyright © 2003 All rights reserved.
- Page 3 Table of Contents Autotransformer - ZV30, ZV36, and ZV48 ................... 10 Autotransformer - ZV30R, ZV36R, and ZV48R ................15 Baffle Grease Filter and Drip Trays - ZV30, ZV36, and ZV48 ............7 Control Features ........................... 6 Data Location ..........................4 Fan Motor - ZV30, ZV36, and ZV48 ....................
- Page 4 Introduction Model ZV30 The 2003 Monogram Stainless Steel, 30-, 36- and 48 in. Range Hood models are being introduced with a new motor mount that allows for easy removal and replacement of the fan motor. Other features include: • Baffle grease filters and drip trays to allow for quick and easy cleaning.
- Page 5 Warranty Monogram Hood Warranty Proof of original purchase date is needed to obtain service under warranty. What Is Covered Full One-Year Warranty For one year from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the hood that fails because of a manufacturing defect.
- Page 6 Control Features 1 - Light Control The two surface lights are controlled using a 5- position switch (OFF, 1, 2, 3, and HI). Turn the light from OFF to HI to adjust the intensity of the light while cooking. 2 - Fan Control The fan speed is controlled using a 5-position switch (OFF, 1, 2, 3, and HI).
- Page 7 ZV30, ZV36, and ZV48 Components Baffle Grease Filter and Drip Trays Fan Motor Removal and Replacement Removal and Replacement 1. Grasp the 2 handle knobs. Slide the grease 1. Disconnect the electrical connector from the filter forward and up until it clears the drip tray fan motor.
- Page 8 3. Loosen the 2 wire retaining screws and remove the wires from the heat lamp socket. 3. Disconnect the electrical connector and remove the heat lamp panel. Heat Lamp Switch Removal and Replacement 1. Remove the Heat Lamp Panel 2. Press the switch clamps in and pull the switch from the heat lamp panel.
- Page 9 4. Loosen the 2 wire retaining screws and Surface Lights remove the wires from the surface light Removal and Replacement socket. WARNING: Surface lights may be hot. The surface lights are 120 volt, 50 watt, par-16 halogen flood bulbs. Part No. WB08X10028. 1.
- Page 10 Note: Make sure the pin on the rotary switch is Rotary Switch aligned with the hole in the panel before installing the nut. Removal and Replacement Note: The procedure to remove both the fan rotary switch and the light rotary switch are identical.
- Page 11 5. Remove the 4 screws that hold the autotransformer to the mounting bracket. 4 Screws 3. Pull the indicator light socket from the red 6. Label and disconnect the 7 wires from the indicator cap. autotransformer and remove the auto- transformer.
- Page 12 ZV30R, ZV36R, and ZV48R Components Heat Lamp Panel Grease Baffles Removal and Replacement Removal and Replacement 1. Lift the tabs to release the baffles. WARNING: Heat lamp may be hot. 2. Remove the 2 baffles from the hood. 1. Remove the heat lamp. 2.
- Page 13 3. Loosen the 2 wire retaining screws and remove the wires from the heat lamp socket. Surface Lights Removal and Replacement WARNING: Surface lights may be hot. 1. Turn the trim ring counterclockwise until it falls from the socket. 2. Remove the light from the socket. Retainer Heat Lamp Switch Removal and Replacement...
- Page 14 Surface Light Sockets Rotary Switch Removal and Replacement Removal and Replacement 1. Remove the Note: The procedure to remove both the fan Heat Lamp Panel rotary switch and the light rotary switch are 2. Remove the surface lights. identical. 3. Press the socket clamps in and pull the 1.
- Page 15 Note: Make sure the pin on the rotary switch is Fan Motor Indicator Light aligned with the hole in the panel before installing the nut. Removal and Replacement 1. Remove the Heat Lamp Panel 2. Reach behind the hood and disconnect the 2 wires from the indicator light socket.
- Page 16 Troubleshooting Single Fan Motor (Use schematic SE1ANB) The fan does not work. Reset the circuit Do the lights work? Is the circuit breaker open or fuse blown? breaker or replace the fuse. With the lamp switch set to OFF, is 120 Repair faulty wiring.
-
Page 17: Heat Lamp
Fan Motor Indicator Light The fan does not work. Reset the circuit Do the lights work? Is the circuit breaker open or fuse blown? breaker or replace the fuse. W ith the lamp switch set to OFF, is 120 volts present between pin (a) and pin (e) Repair faulty wiring. - Page 18 Surface Lights One or both of the surface lights do not work. Reset the circuit Is the circuit breaker open or fuse breaker or replace the blown? fuse. Does the lamp bulb have continuity? Replace the lamp bulb. With the lamp switch set to OFF, is 120 volts present between pin Repair faulty wiring.
- Page 19 Schematics All ZV30 and ZV36 - RSF1SS, SSF1SS, and TSF1SS Models WARNING: Power must be disconnected before servicing the appliance. – 19 –...
- Page 20 All ZV48 - RSF1SS, SSF1SS, and TSF1SS Models WARNING: Power must be disconnected before servicing the appliance. – 20 –...
- Page 21 Illustrated Parts ZV30, ZV36, and ZV48 - SSF1SS Models – 21 –...
- Page 22 ZV30, ZV36, and ZV48 - SSF1SS Models VIEW CATALOG DESCRIPTION QUANTITY NUMBER NUMBER WB02X10872 JUNCTION BOX COVER WB27X10669 CAPACITOR WB02X10869 FILTER, BAFFLE WB08X10028 120V 50W HALOGEN BULB WB08X10030 LAMPHOLDER WB20X10026 TRANSFORMER WB02X10871 DUCT TRANSITION W/DAMPER WB38X10069 BLOWER ASSEMBLY WB08X10032 LAMPHOLDER SUPPORT WB08X10033 INDICATOR LIGHT WB07X10607...
- Page 23 ZV30, ZV36, and ZV48 - TSF1SS Models – 23 –...
- Page 24 ZV30, ZV36, and ZV48 - TSF1SS Models VIEW CATALOG NUMBER DESCRIPTION QUANTITY NUMBER WB02X10872 JUNCTION BOX COVER WB27X10669 CAPACITOR WB02X10869 FILTER, BAFFLE WB08X10028 120V 50W HALOGEN BULB WB08X10030 LAMPHOLDER WB20X10026 TRANSFORMER WB02X10871 DUCT TRANSITION W/DAMPER WB38X10069 BLOWER ASSEMBLY WB08X10032 LAMPHOLDER SUPPORT WB08X10033 INDICATOR LIGHT WB07X10613...
- Page 25 ZV30, ZV36, and ZV48 - RSF1SS Models – 25 –...
- Page 26 ZV30, ZV36, and ZV48 - RSF1SS Models VIEW CATALOG DESCRIPTION QUANTITY NUMBER NUMBER WB02X10872 JUNCTION BOX COVER WB27X10669 CAPACITOR WB02X10897 FILTER, BAFFLE WB08X10028 120V 50W HALOGEN BULB WB08X10030 LAMPHOLDER WB07X10660 SHELF WB20X10026 TRANSFORMER WB02X10871 DUCT TRANSITION W/DAMPER WB38X10069 BLOWER ASSEMBLY WB08X10032 LAMPHOLDER SUPPORT WB08X10033...
- Page 27 Notes – 27 –...
- Page 28 Notes...
