Configuration Switches

After setting configuration switches, turn system power off for a few seconds.

FREEZE

Freeze settings are used to configure the following equipment.

I/L - Interlock

Interlock settings are used to configure the following equipment.

SYST - System

System settings are used to configure the following equipment.

SPEC FUNCT - Special Functions

Special Functions settings are used to configure the following equipment.

HI SPD - High Speed

High Speed settings are used to configure the following equipment.

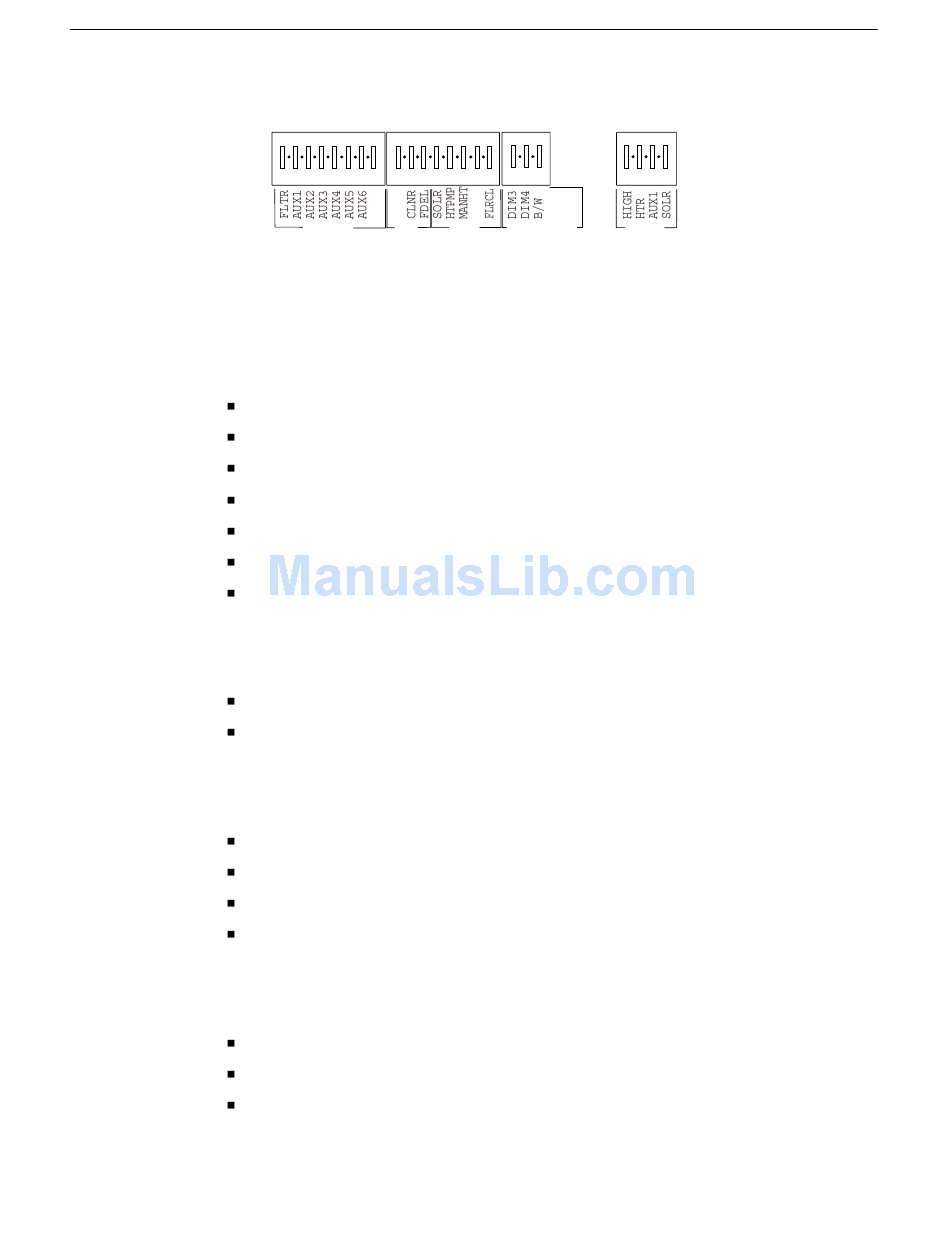

ON ON
1 2 3 4 5 6 7 8 1 2 3 4 5
FREEZE I/L
FLTR Activate filter pump during freezing conditions.
AUX1 Activate AUX1 during freezing conditions.
AUX2 Activate AUX2 during freezing conditions.
AUX3 Activate AUX3 during freezing conditions.
AUX4 Activate AUX4 during freezing conditions.
AUX5 Activate AUX5 during freezing conditions.
AUX6 Activate AUX6 during freezing conditions.
CLNR Activate cleaner interlocks. Cleaner must be installed on AUX1.
FDEL Activate filter delay (heater cool down).
SOLR Activate solar system.
HTPMP Activate heatpump as secondary heat source.
MANHT Activate heater when spa or pool is manually turned on.
FLRCL Activate floor cleaner valve.
DIM3 Activate dimmer for AUX3 circuit.
DIM4 Activate dimmer for AUX4 circuit.
B/W Activate backwash circuit.
ON
ON
1 2 3 1 2 3 4
6 7 8
SYST SPEC FUNCT HI SPD
