Configuration Switches

After setting configuration switches, turn system power off for a few seconds.

FREEZE

Freeze settings are used to configure the following equipment.

I/L - Interlock

Interlock settings are used to configure the following equipment.

SYST - System

System settings are used to configure the following equipment.

SPEC FUNCT - Special Functions

Special Functions settings are used to configure the following equipment.

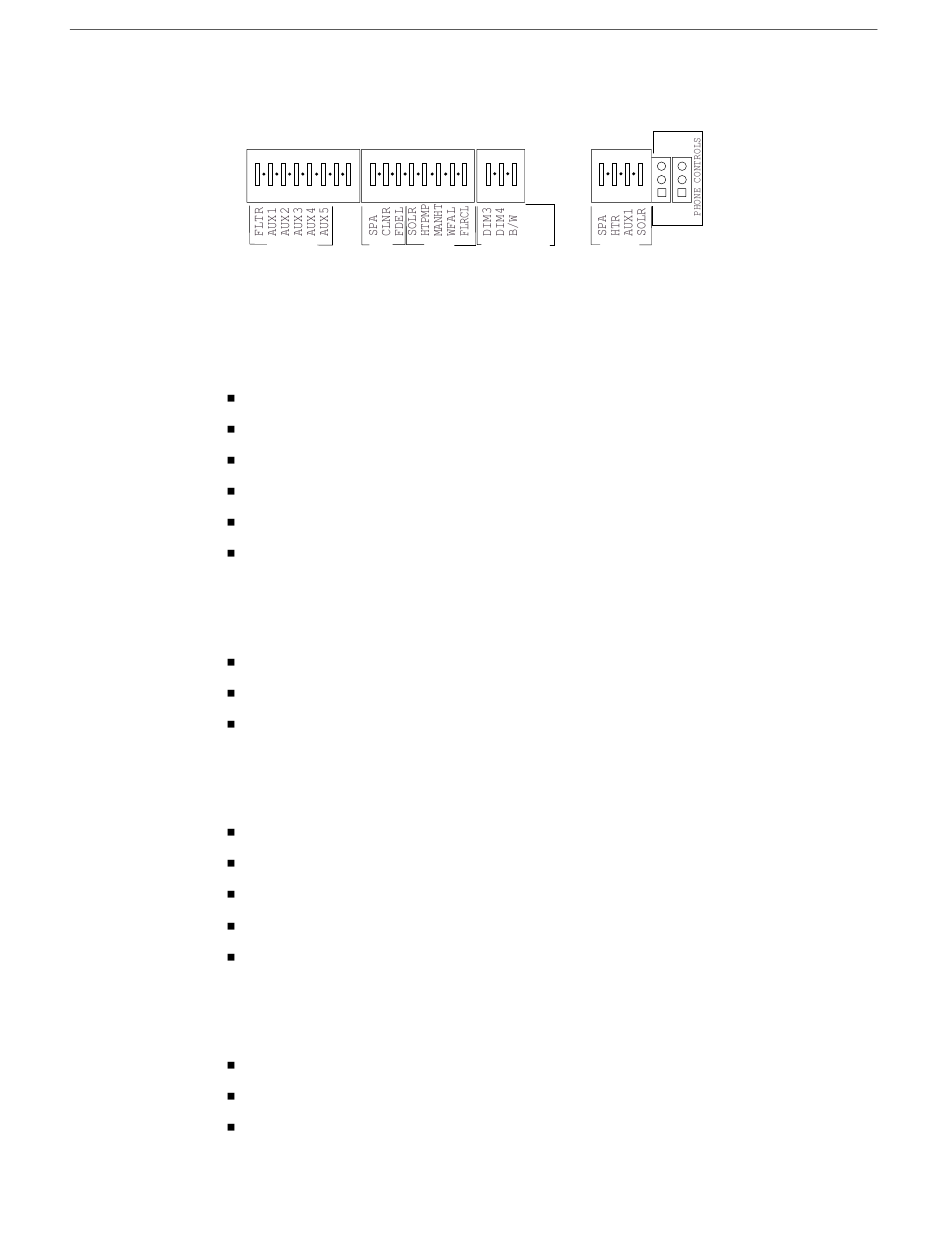

ON ON
1 2 3 4 5 6 7 8 1 2 3 4 5
FREEZE I/L SYST
FLTR Activate filter pump during freezing conditions.
AUX1 Activate AUX1 during freezing conditions.
AUX2 Activate AUX2 during freezing conditions.
AUX3 Activate AUX3 during freezing conditions.
AUX4 Activate AUX4 during freezing conditions.
AUX5 Activate AUX5 during freezing conditions.
SPA Activate filter pump (single pump system)
CLNR Activate cleaner interlocks. Cleaner must be installed on AUX1.
FDEL Activate filter delay (heater cool down).
SOLR Activate solar system.
HTPMP Activate heatpump as secondary heat source.
MANHT Activate heater when spa is manually turned on.
WFAL Activate an overflow from spa to pool. Uses AUX2 circuit.
FLRCL Activate floor cleaner valve.
DIM3 Activate dimmer for AUX3 circuit.
DIM4 Activate dimmer for AUX4 circuit.
B/W Activate backwash circuit.
ON ON
1 2 3 1 2 3 4
6 7 8
SPEC FUNCT HI SPD
POOL
HEAT
SPA
