System Options

Spa-side Remote

The Spa-side Remote is typically installed in the tile-line of the spa. See Plumbing
Requirements for details.
• To install the Spa-side Remote
1.
2.
3.
4.
5.
6.
7.
8.
When spa construction is completed, cut back the 1.5" dia. pvc pipe flush to the tile.
Thread mounting adapter onto Spa-side Remote.
Pull Spa-side Remote cable through conduit to Power Center.
Glue mounting adapter into 1.5" pvc pipe with pvc cement so that the red button will be on
top.

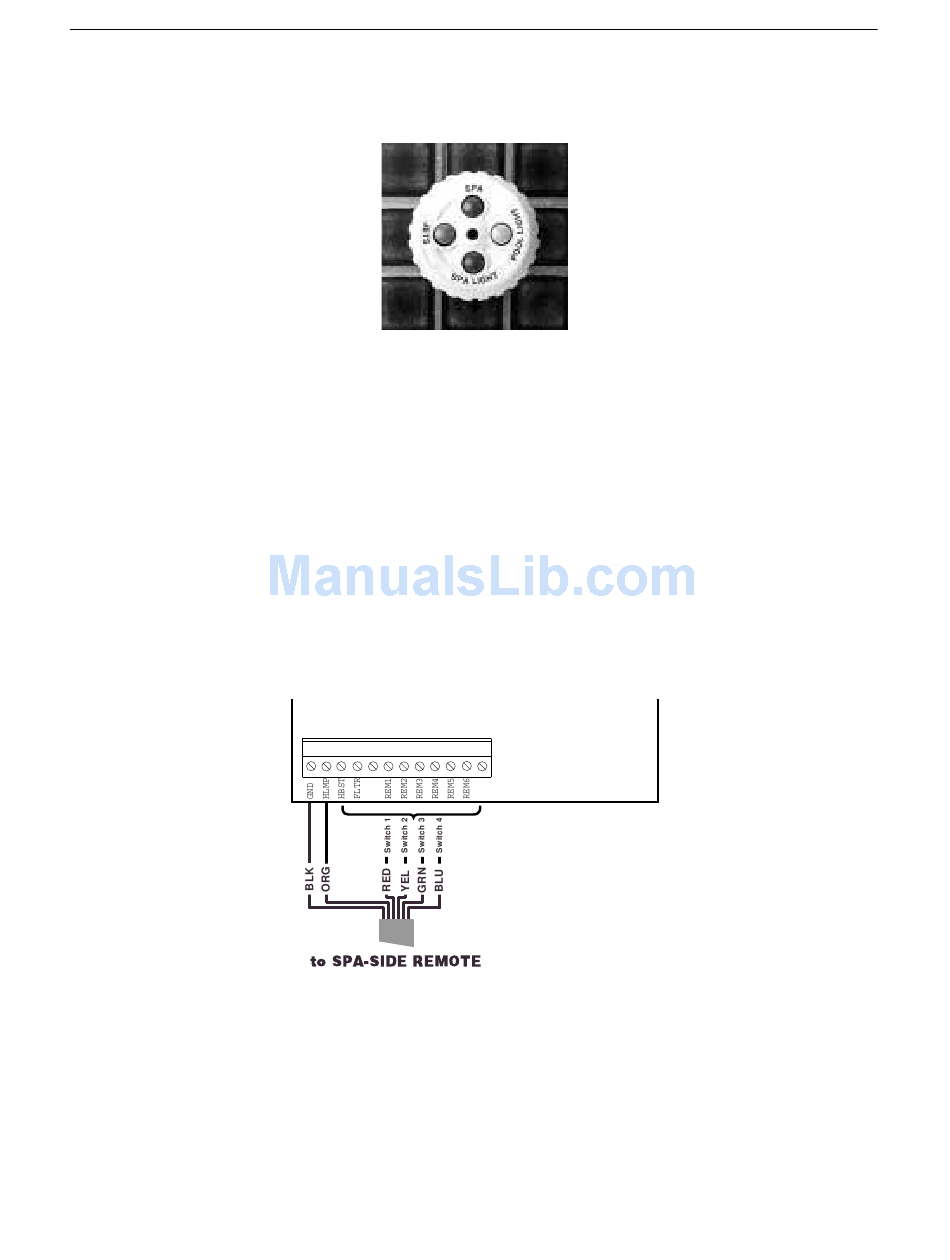

At the Power Center, connect Spa-side Remote wires to appropriate screw terminals
located at bottom of the of the circuit board.
SELECT 4 CIRCUITS
Connect black wire to GND screw terminal.
Connect orange wire to HLMP screw terminal.
Determine which circuits you wish to control from within the spa, and connect the red,
yellow, green and blue wires to the appropriate screw terminals.
HBST Activates Heat-Boost function.
FLTR Activates filter pump.
