Water Temperature Sensor; Freeze Temperature Sensor - Compool Cp3810 Installation & Operating Instructions Manual

14

Water Temperature Sensor

The Water Temperature Sensor measures pool and spa temperature.
• To wire the Water Temperature Sensor
1.
2.
3.
4.
5.
6.
Note Calibration of the Water Temperature Sensor is required. See Calibration for details.

Freeze Temperature Sensor

The Freeze Temperature Sensor measures air temperature at the equipment pad.
• To wire the Freeze Temperature Sensor
1.
2.
3.
GRN
RED
Select a convenient location to mount the sensor between the filter pump and filter.
Drill a 5/16 inch diameter hole in the pipe and insert the sensor.
Position the hose clamp over the sensor, and gently tighten around pipe.
Caution Do not overtighten clamp.
Run a 2-conductor cable between the sensor and the Power Center.
At the sensor, use crimp connectors (included) to provide waterproof connections. Before
making connections, cut off stripped ends of cable. Insert the 2 wires to be connected into
the connector and squeeze the connector with a pair of pliers. Two extra connectors are
included.
Caution Do not strip wires.

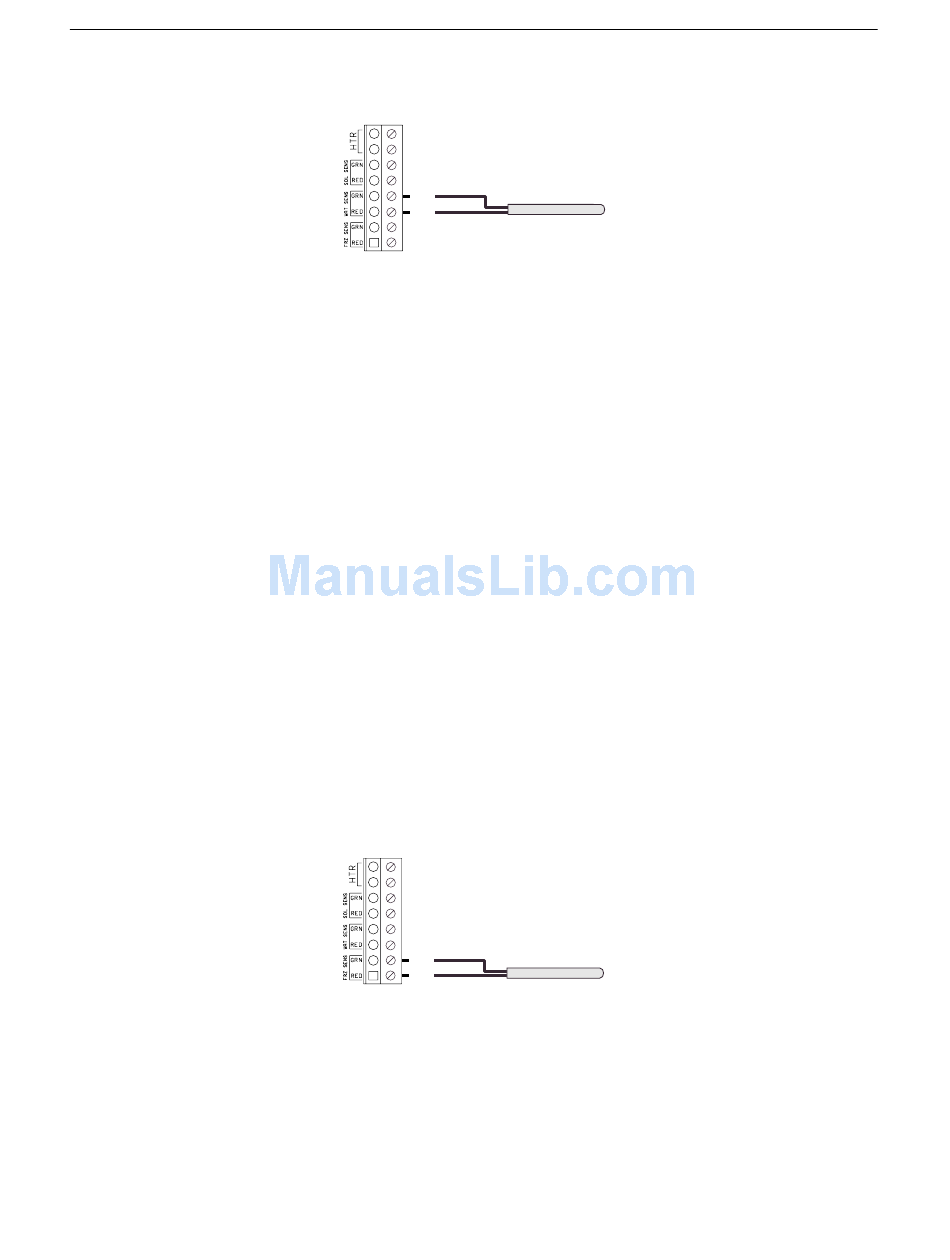

At the Power Center circuit board, connect sensor wires to WAT SENS screw terminals.
Pay attention to color-coding of wires.
GRN
RED
Install the sensor next to the Power Center.
Run a 2-conductor cable from the sensor to the Power Center.
At the sensor, use crimp connectors (included) to provide waterproof connections. Before
WATER SENSOR
FREEZE SENSOR
Compool Cp3810
