4 Move the brown wire on the ballast connection block to
the position shown Figure 9.
5 Close the base before applying power.
Note: Magnetic ballast models only run on power supplies over 200 volts and in this operating
range the 15 amp main fuses must be installed.

Power connection

Important! Connect the MAC 2000 Profile II directly to AC power. Do not connect it to a dimmer
system; doing so may damage the fixture.
You may need to install a cord cap that fits your supply on the power cable. A 3-prong grounding-type plug must be
installed following the manufacturer's instructions. The table shows some possible pin identification schemes; if the
pins are not clearly identified, or if you have any doubts about proper installation, consult a qualified electrician.
To apply power, set the power switch on the base to the "I" position.

Reduced power function

The MAC 2000 Profile II has an automatic power reduction function, which reduces the consumption to 700W if the
shutter/dimmer is closed for more than 10 seconds. This not only increases the lamp life, but also further decreases the
overall noise emission of the fixture.
10
Wire Color Pin
brown live
blue neutral
yellow/green ground
Table 2: Cord cap connections
MAC 2000 Profile II
Black
208 V / 60 Hz 208 V / 60 Hz
230 V / 60 Hz 230 V / 60 Hz
208 V / 50 Hz 208 V / 50 Hz
230 V / 50 Hz 230 V / 50 Hz
245 V / 50 Hz 245 V / 50 Hz

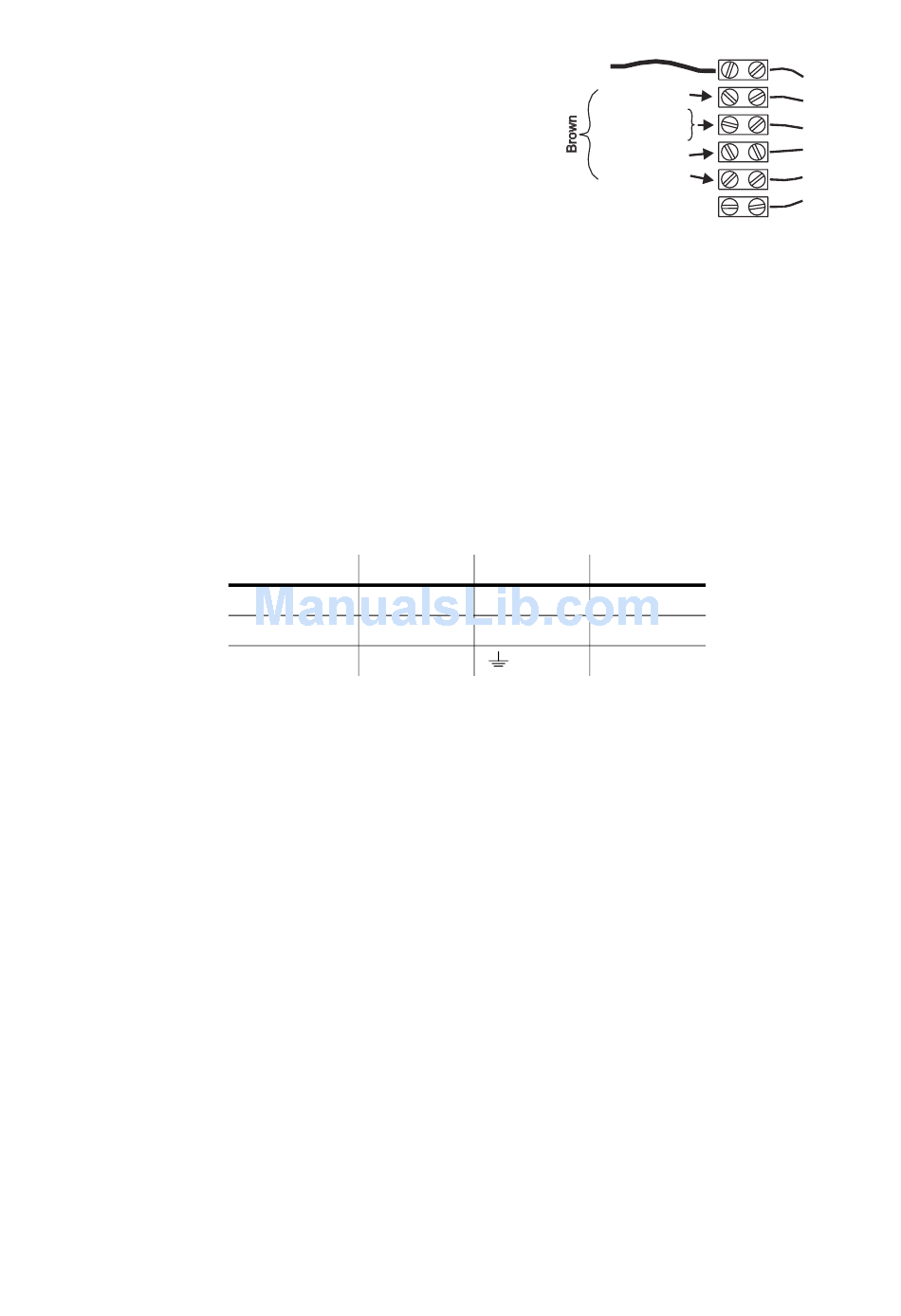

Figure 9: Magnetic ballast connections
Symbol Screw (US)
L yellow or brass
N silver
green
