Instruction Manual
eSATA/USB to Dual Removable 2.5in SATA
HDD Enclosure with RAID
S252U2ERR
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/25/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S252U2ERR
Summary of Contents for StarTech.com S252U2ERR
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/25/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ................................2 Installation................................3 Hardware Installation ..........................3 Driver Installation ............................3 How to Configure ............................4 Operating Modes ............................4 Using the Storage Device ...........................5 Specifications ..............................7 Technical Support ............................8 Warranty Information ............................8 Instruction Manual... -
Page 4: Introduction

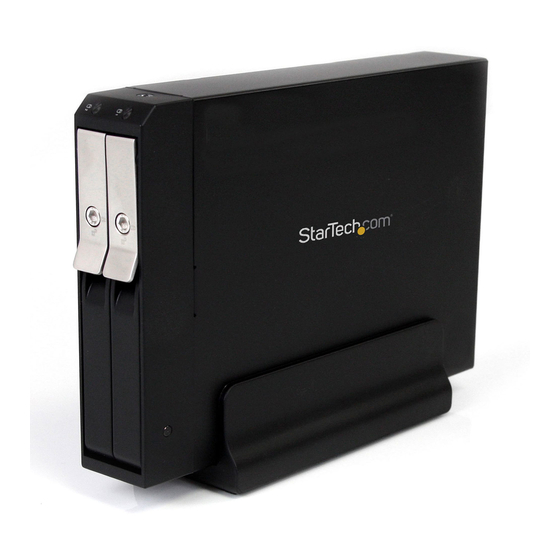

Introduction The StarTech.com S252U2ERR Dual Removable 2.5” SATA External Hard Drive Enclosure provides a complete, hardware-based external RAID storage solution for laptop or desktop computers. Accommodating two 2.5” SATA 1.5/3.0 Gbps hard drives, this compact HDD enclosure supports RAID configurations including JBOD (Single), Spanning (BIG/Concatenated), RAID 0 (Fast) and RAID 1 (Safe). -
Page 5: Front View
Front View Power/Activity LED Door Latch Door Twist Lock Rear View Power eSATA connector connector Reset switch ON/OFF RAID Mode switch connector switch Instruction Manual... -
Page 6: Installation
Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Hardware Installation 1. Make sure the power switch on the enclosure is set to OFF and the power adapter is unplugged from the enclosure. -
Page 7: How To Configure
How to Configure Operating Modes Mode Description RAID 0 Striping combines multiple disks into a single large disk array. (Striping) The data is split evenly across each disk simultaneously. Read/ write performance is increased as a result, but failure of any one disk will make the entire array unusable. -
Page 8: Using The Storage Device
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer”... - Page 9 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 10: Specifications
Specifications Number of Hard Drives USB 2.0 Host Interface SATA 3.0 Gbps Chipset ID Silicon Image SiI5744 1 x eSATA* Connectors 1 x USB mini-B 1 x DC Power LEDs 2 x Power/Activity 2.5” SATA 1.5/3.0 Gbps compatible, Compatible Hard Drives height up to 9.5mm eSATA: 3.0 Gbps Maximum Data Transfer Rate... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
