Summary of Contents for StarTech.com S2510PESAT

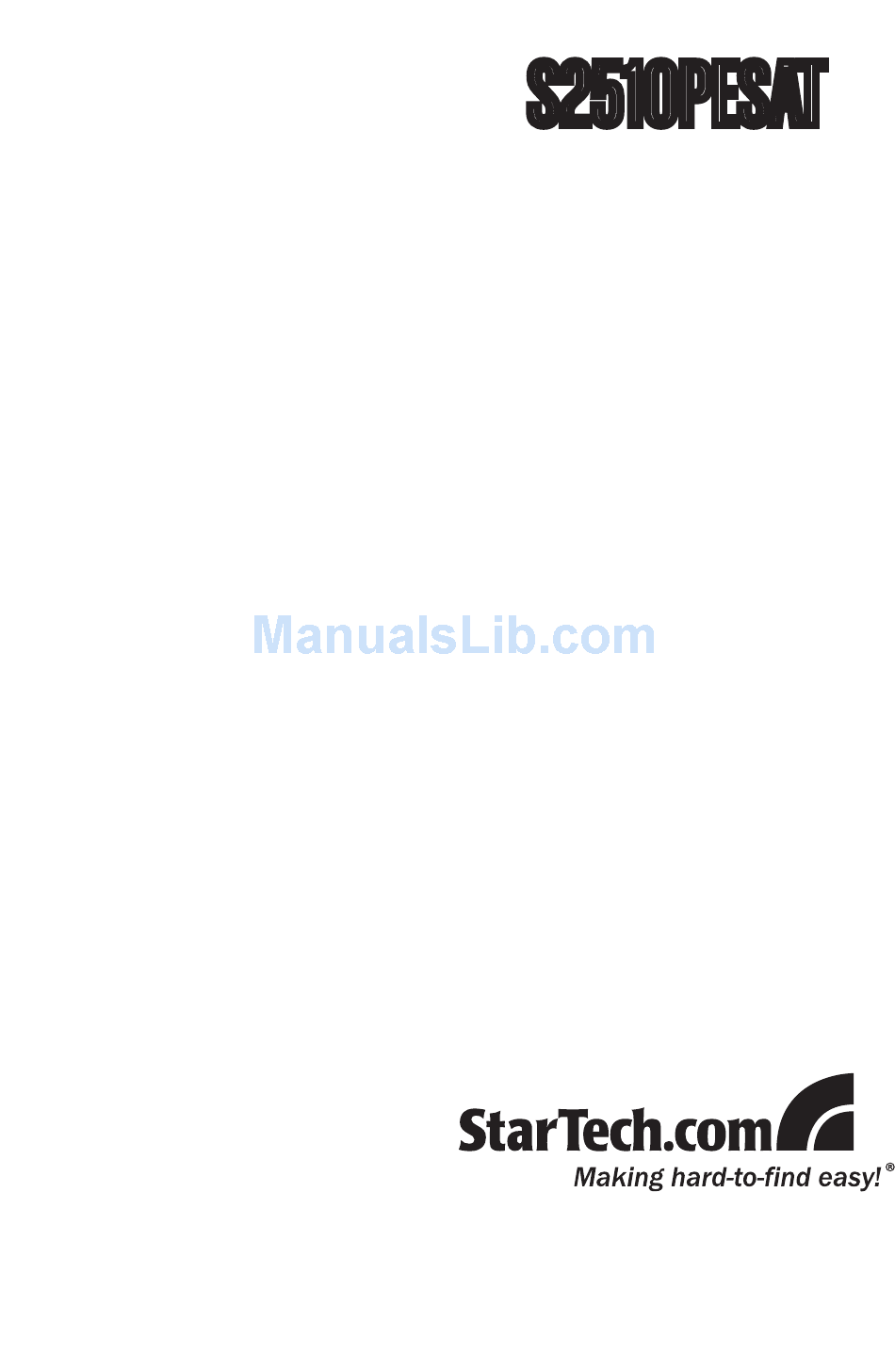

- Page 1 S2510PESAT Instruction Manual SATA Hard Drive Enclosure 2.5” Silver Power eSATA to SATA Hard Drive Enclosure with One Touch Backup...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Installation ............... 2 Hardware Installation ..............2 Driver Installation .................2 Using the Enclosure ............3 Specifications ..............5 Technical Support ............6 Warranty Information ............6... -
Page 4: Introduction
Introduction The S2510PESAT External Hard Drive Enclosure can be connected through Power eSATA (also known as eSATA + USB 2.0, USB/eSATA combo), which uses a single, combined eSATA data connection and 5v power connection (over a built-in USB connection) making it a fast and easy to use portable storage solution. -
Page 5: Installation
Installation Hardware Installation WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Press on the small tabs on either side of the enclosure to release the latch that holds the top and bottom covers of the enclosure and slide the enclosure top cover towards the front. -
Page 6: Using The Enclosure
Using the Storage Device Windows 2000/XP/Vista/7 If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. - Page 7 The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as “Healthy” with a drive letter assigned (ie. E:). This drive letter should now appear within My Computer. If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within My Computer.
-
Page 8: Specifications
Specifications SATA 3.0Gb/s Bus Interface USB 2.0 1 x Power eSATA connector Connectors 1 x USB mini-B Chipset ID Sunplus SPIF303 LEDs 1 x Power/Activity 2.5” SATA 1.5/3.0Gbps, 9.5mm Hard Drive Support height, up to 500GB capacity Dimensions 130.0mm x 60.0mm x 17.0mm Weight 93.5g Compatible Operating... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 10 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
