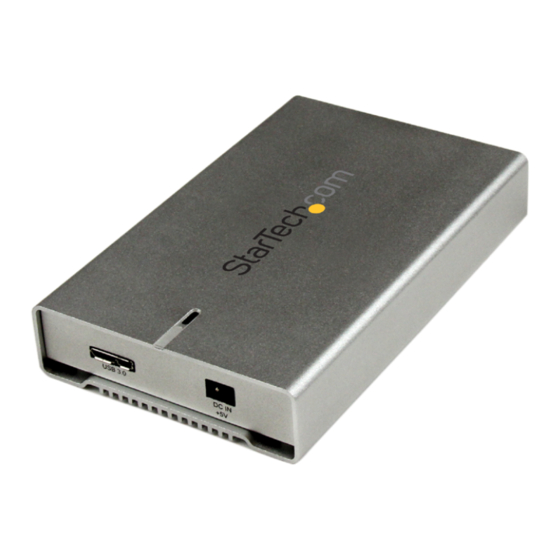

USB 3.0 to 2.5in SATA Hard Drive Enclosure
with UASP
S2510SM12U33
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/30/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S2510SM12U33
Summary of Contents for StarTech.com S2510SM12U33
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/30/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Hardware Installation ..........................3 How to Use ....................6 Connecting the Hard Drive ........................6 Powering the Drive Enclosure ......................6 LED Indicator .............................. 7 Disconnecting the Hard Drive ...................... -
Page 4: Product Diagram
Product Diagram Power/Activity LED Power Jack (Power adapter not included) USB 3.0 Type B port Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x USB 3.0 SATA HDD Enclosure • 1 x USB 3.0 Cable • 1 x Screw kit • 1 x foot pad set • 1 x Instruction Manual System Requirements • Computer system with available USB 3.0 (5 Gbit/s) port or USB 2.0 port (480Mbps) •... -
Page 6: Installation
Installation Hardware Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 7 3. Connect the the 2.5” SATA Hard Drive to the SATA connector on the HDD tray. 4. Insert two of the larger screws from the included screw kit, into the mounting holes on either side of the drive tray to fix the hard drive into place. 5.
- Page 8 6. Reassemble the enclosure by slide the HDD tray with connected hard drive back into the enclosure. Note: Ensure the HDD label is facing upward, and the enclosure is assembled with the LED on the same side of the drive connector. 7.
-
Page 9: How To Use
8. Complete installation by connecting the included USB cable from the USB 3.0 type B port on the enclosure to an available USB port on the computer system. Note: The hard drive enclosure has a built-in auxiliary Power Jack that is not required for standard operation. -
Page 10: Led Indicator
LED Indicator The hard drive enclosure offers an LED indicator, to enable you to monitor drive activity. When the enclosure is powered, the LED will illuminate. While the hard drive is being accessed, the LED will blink. Do not remove the enclosure from the host computer while the LED is flashing, as it could damage the drive or the enclosure, resulting in data loss. -
Page 11: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
Page 12: Specifications
Specifications Host Interface USB 3.0 1 x 15 pin SATA Power female External Connectors 1 x 7 pin SATA Data male 1 x USB 3.0 Cable Maximum Data Transfer Rate USB 3.0: 5 Gbit/s Windows 2000/XP/Server 2003/Vista/ Compatible Operating Systems Server 2008 R2/7/8 (32/64-bit), Mac OS 9/10, Linux Instruction Manual... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 14 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
