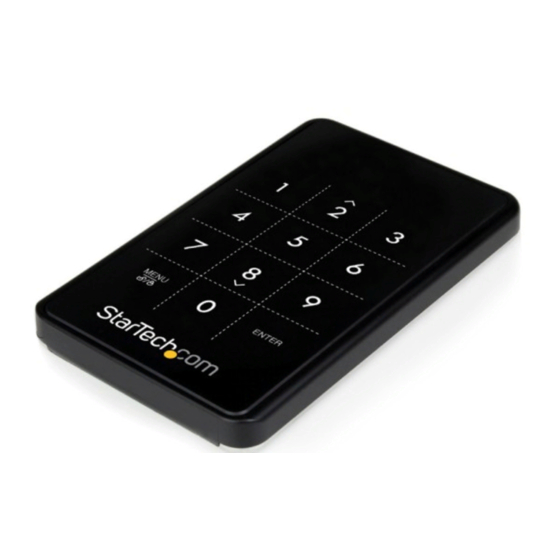

2.5in USB 3.0 SATA Hard Drive Enclosure
with Touchpad AES Encryption
S2510BU3PW
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/15/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S2510BU3PW
Summary of Contents for StarTech.com S2510BU3PW

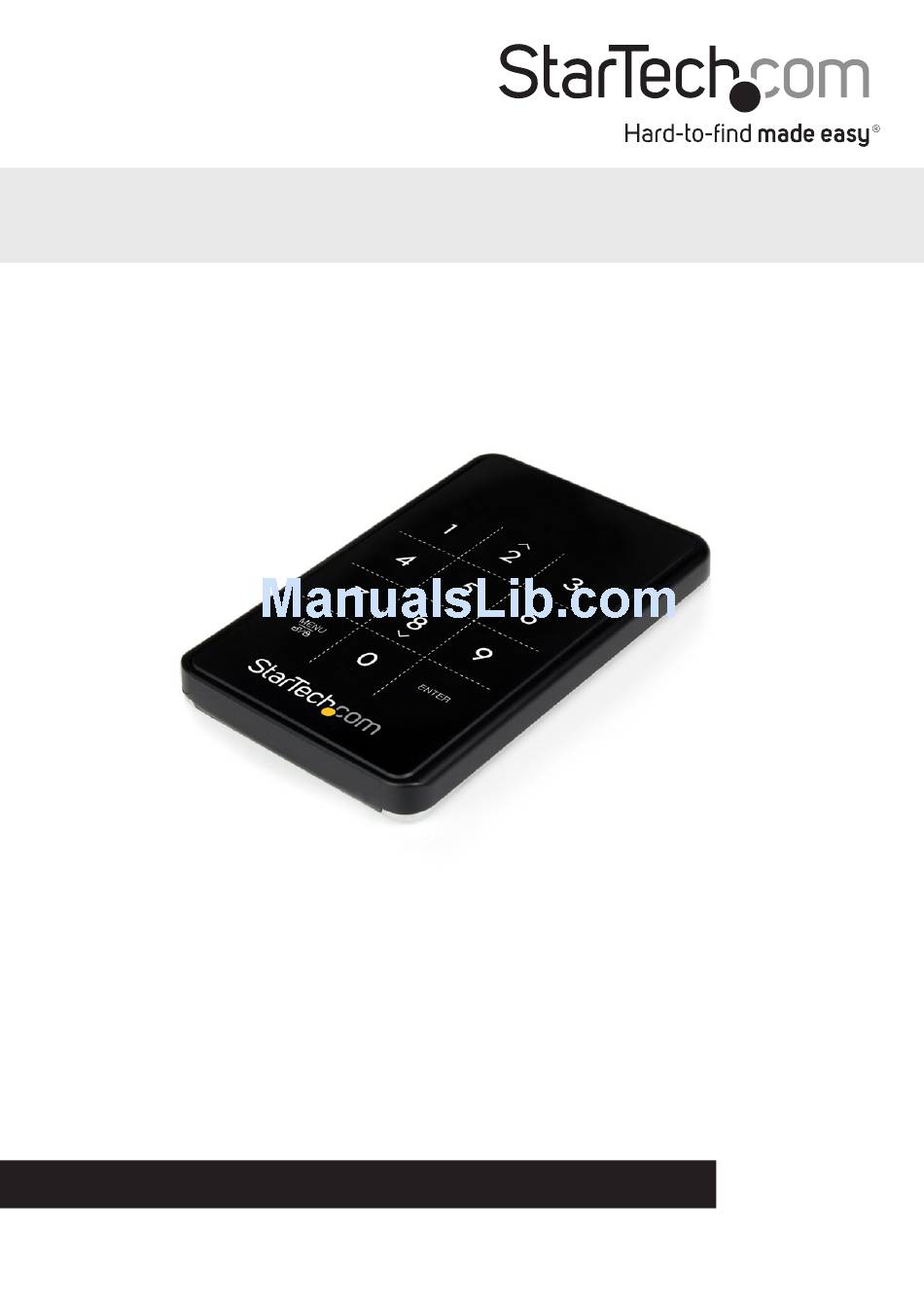

- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/15/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Top View ............................... 2 Front View ..............................2 Installation ....................3 Hardware Installation ..........................3 Driver Installation ............................4 How to Use ....................5 Initial Setup ..............................5 Menu Options ............................. 6 Additional Functions .......................... -
Page 4: Introduction
Introduction The S2510BU3PW 2.5” USB 3.0 Hard Drive Enclosure with Touchpad AES Encryption turns almost any 2.5” SATA hard drive (HDD) or solid state drive (SSD) into an AES encrypted external storage device. Large capacity drives (tested with up to 1TB) can be used to greatly enhance your computer’s storage/backup capabilities. -
Page 5: Top View
Top View OLED Readout Display Touchscreen Keypad Front View USB 3.0 Micro-B connector DC Power connector Instruction Manual... -
Page 6: Installation
Installation Hardware Installation WARNING! Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Driver Installation
1. Place the back panel back onto the enclosure and fasten using the small screws. 2. With the enclosure fully assembled, connect the USB 3.0 cable from the enclosure to a USB port on the host computer system. OPTIONAL: If the USB port does not provide enough power to the drive/enclosure, use the provided USB to DC adapter cable to connect the DC port on the enclosure to an additional USB port on the host computer. -
Page 8: How To Use
How to Use Initial Setup 1. When connected to a host computer for the first time, the OLED readout will prompt you to setup a password or not. If no password is used, the enclosure will function as a standard external hard drive enclosure without any encryption. 2. -
Page 9: Menu Options
Removing the drive from the enclosure or placing it into another S2510BU3PW enclosure will not allow access to the data. It is recommended that all data stored on the enclosure also be backed up to another location regularly to prevent any chance of losing your data. - Page 10 HDD Temperature NOTE: Not be compatible with SSD’s and some HDD’s Display the current temperature of the installed SATA drive. HDD Usage Time Displays two counters measuring the total time the installed SATA drive has been in use since being installed/initialized. A: Total time the installed SATA drive has been actively read/write.
- Page 11 User Info Configuration options for setting and displaying optional user info, such as a name (8 character limit) and phone number (20 character limit). A name can be configured to display on the OLED display on startup, instead of the standard logo and the phone number can be set to display when an incorrect password is entered.
-
Page 12: Additional Functions
Initialize HDD The installed SATA drive can be re-initialized while connected to the host computer, which will result in the drive partition being deleted and drive being treated as a new drive (usage timer will also be reset). The SATA drive will need to be re-partitioned and formatted on the host computer afterwards. -
Page 13: Specifications
Specifications Host Interface USB 3.0 Chipset ID Fujitsu MB86C311 1 x USB 3.0 micro-B female External Connectors 1 x DC Power 2.5” SATA hard drive or solid state drive, Compatible Hard Drives 9.5mm height Maximum Data Transfer Rate USB 3.0: 5 Gbps Encryption Type AES-256 Power Adapter... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
