StarTech.com S252BU313R Quick Start Manual

Quick start guide
USB 3.1 (10Gbps) dual external enclosure for 2.5" SATA drives
S252BU313R
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

Packaging contents

• 1 x USB 3.1 to SATA enclosure
• 2 x drive trays
• 1 x USB C to Micro B cable
• 1 x USB A to Micro B cable
• 1 x universal power adapter (NA/UK/EU/AU)
• 4 x rubber feet
• 2 x Allen keys
• 1 x instruction manual

System requirements

• 2.5 in. SATA HDD or SSD drive
• USB-enabled computer system with an available USB port
System requirements are subject to change. For the latest
requirements, please visit www.startech.com/S252BU313R.

Product diagram

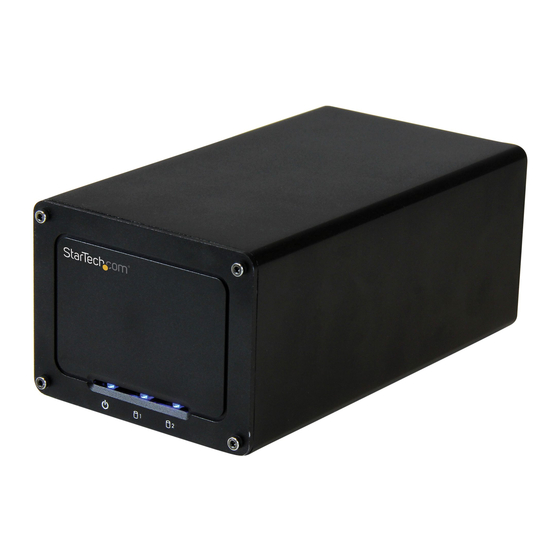

Main
For the latest information, technical specifications, and support for this
product, please visit www.startech.com/S252BU313R.
Front
Back
Attach the rubber feet
• To attach the rubber feet to the enclosure, remove the backing
from the feet and affix them to the circular outlines on the bottom
of the enclosure.
Set the fan speed
You can set the fan speed to OFF, 25%, 50%, or 100%.
• To change the speed of the fan, on the back of the enclosure,
move the switch to the speed that you want.
*actual product may vary from photos
Removable
screws
Power and drive LEDs
Power
switch
USB 3.1
port
DC+12V port
Removable
screws
Fan
controls
RAID
switches
SET button
Manual Revision: 10/23/2015
