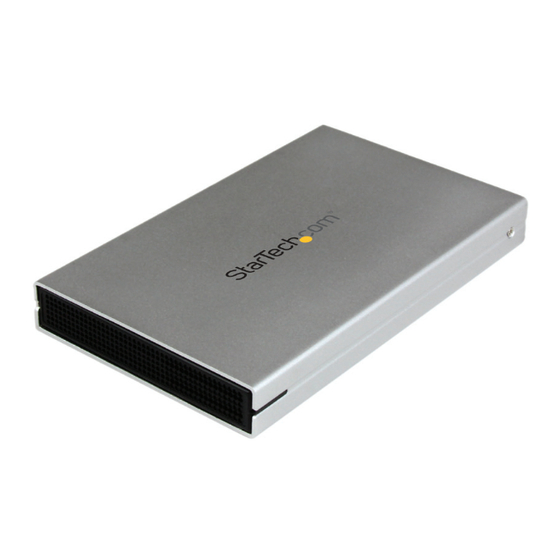

USB 3.0/eSATAp 2.5" SATA HDD/SSD
Enclosure
S251SMU33EP
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/19/2014
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com S251SMU33EP
Summary of Contents for StarTech.com S251SMU33EP
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 08/19/2014...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Diagram ..................1 Rear View ..............................1 Hardware Installation ................2 How to Use ....................5 Connecting the Hard Drive ........................5 Powering the Drive Enclosure ......................5 LED Indicator .............................. 5 Disconnecting the Hard Drive ...................... -
Page 4: Introduction
Introduction Packaging Contents • 1 x USB 3.0/eSATAp 2.5” SATA hard drive enclosure • 1 x USB 3.0 cable • 1x eSATA cable • 1x Installation screws • 1x Phillips head screw driver • 1x USB to DC power cable •... -
Page 5: Hardware Installation
Hardware Installation WARNING: Hard drives and storage enclosures require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution. Be sure that you are properly grounded by wearing an anti-static strap when handling computer components or discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. - Page 6 3. Using the included Philips head screw driver, attach your 2.5” SATA HDD/SSD to the drive tray, by driving 2 of the hard drive installation screws (larger included screws) through the stabilizing holes on the bottom of the drive tray into the bottom mounting holes on your HDD/SSD.
- Page 7 5. Using the included Philips head screw driver, attach the hard drive tray to the enclosure, by driving 2 of the enclosure installation screws (smaller included screws) into the side hard drive tray mounting holes on the enclosure. 6. Complete installation by connecting your hard drive enclosure to your computer using eSATA/eSATAp or USB 3.0.
-
Page 8: How To Use
How to Use Connecting the Hard Drive Once the enclosure has been attached to a computer, and the OS has installed the necessary software, the drive will be accessible as though it were installed within the system. Prior to using the drive, it will need to be formatted according to your operating system requirements. -
Page 9: Initializing The Hard Drive
Initializing the Hard Drive 1. If the SATA Hard Drive is blank it may need to be initialized and formatted before use. From the main Windows desktop, right-click on “My Computer” (“Computer” in Vista/ 7 / 8/ 8.1), then select Manage. In the new Computer Management window, select Disk Management from the left window panel. -
Page 10: Specifications
Specifications Host Interface USB 3.0 / eSATAp 1 x USB 3.0 Micro B External Connectors 1 x eSATAp 1 x 15 pin SATA Power female Internal Connectors 1 x 7 pin SATA Data male USB 3.0: 5 Gbit/s Maximum Data Transfer Rate eSATA: 6 Gbit/s Windows 2000/XP/Server 2003/Vista/ Compatible Operating Systems... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
