CHARACTERISTICS

3. 1

ELECTRONIC BOARD

ENG
The electronic boards are manufactured in
FR
compliance with the ANSI and Canadian
directives.
They are supplied with 120V and, through a
built-in transformer, send a voltage of 24V
to the following components: modulator,
D.H.W./C.H. sensors, room stat, water
flowmeter/water pressure switch, pressu-
re switch valve, flue gas thermostat/flue
gas pressure switch, safey thermostat and
time programmer.
An automatic and continuous modulation
system enables the boiler to adjust the heat
output to the various system requirements
or the User's needs.
The electronic components are guaran-
teed against a temperature range of 0°
to +60°C (32°-140° F)
3. 1 . 1 Fault finding
The indicator leds signalling irregular
and/or incorrect operation of the equip-
ment are indicated in fig. 14.
3. 1 .2 Devices

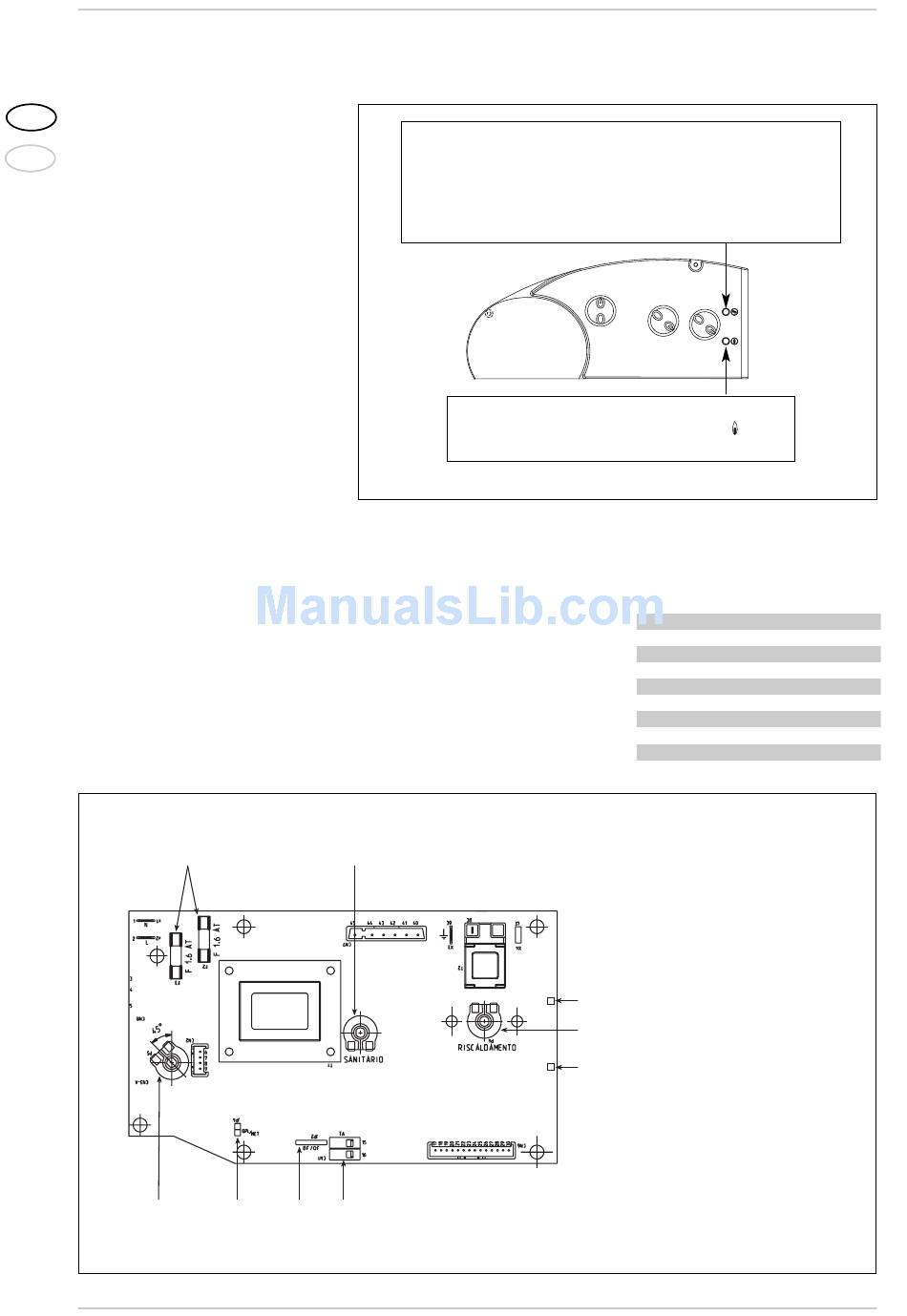

The electronic board is equipped with the
following devices (fig. 15):
– Connector "METANO-GPL" (4)
With the connector disconnected, the
boiler is ready to function with METHANE;
with the connector connected with GPL.
ATTENTION: It is essential that the opera-
2
5
22
tions described above be carried out by
authorized technical staff.
3.2
Antifreeze system made up of the NTC hea-
ting sensor that activates when the water
temperature reaches 6°C (43 F).
The sensor acts as a limit stat, switching-off
the burner when the temperature measu-
red is higher than 85°C (185 F); the reset
temperature is set at 80°C (176 F).
When sensor has tripped, the boiler will
3
4 1 10
Bi-colour green led off if power is cut-off.
Bi-colour orange led: C.H. sensor (SM) fault.
Green led flashing: fan/smoke pressure switch/smoke stat failure.
Orange flashes on water circulation.
Flashing red led indicates a problem in the tap water probe (SS)
Red led on, ignition blocked/safety stat tripped:
turn the rotary switch in the position ( )
to restore functioning
TEMPERATURE
SENSOR
not function for either service.
Table 3 shows the resistance values (Ω)
that are obtained on the sensor as the tem-
perature varies.
TABLE 3
Temperature
°C °F
20 68
30 86
40 104
50 122
60 140
70 158
80 176
KEY
1 Jumper JP2
7
2 Fuse (1,6 AT)
3 D.H.W. potentiometer
8
4 Connector "METHANE/GPL"
5 Rotay switch
7 Block red led
9
8 C.H. potentiometer
9 Bi-colour led gree/orange
10 Connector "TA"
Figure 14
Resistance
(Ω)
12.090
8.313
5.828
4. 1 61
3.021
2.229
1.669
Figure 15
