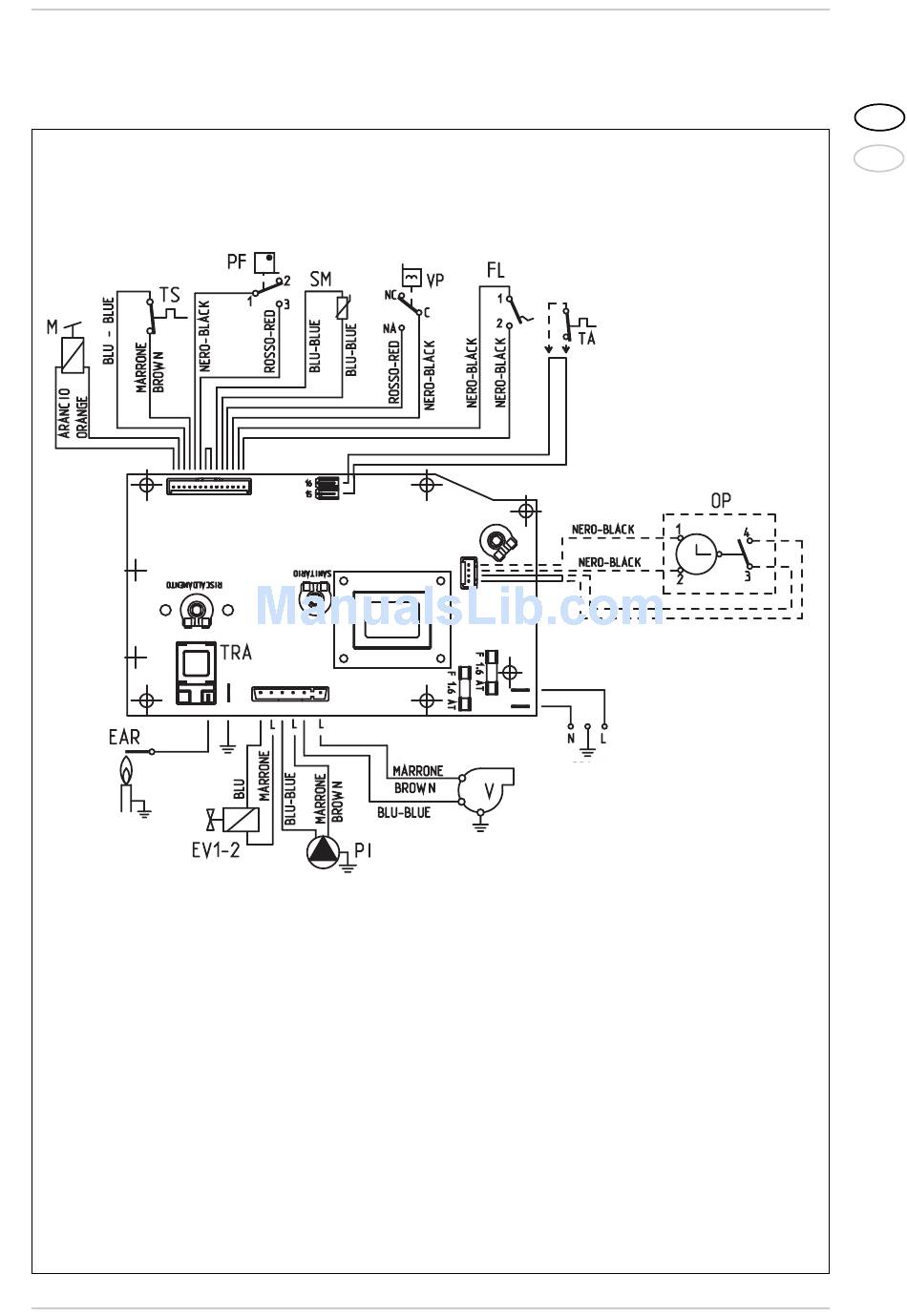

2.9.3 Wiring diagram
CN6
KEY
F
PI
EV1-2 Gas valve coil
V
PF
VP
M
SM
SS
TA
EAR
CN7
Fuse (1.6 AT)
C.H. pump
Fan
Smoke pressure switch
Divertor valve
Modulator
C.H. sensor
D.H.W. probe
Room stat
Ignition/detection electrode
CN2
120V
60Hz
CONNECTOR SPARE PART CODES:
CN2 code 6299909
CN6 code 6299906
CN7 code 6299907
TRA Ignition transformer
TS 100°C (212°F) safety stat
PA Water pressure switch
FL Flowmeter
TF Smokes stat
Time programmer
OP
Nota: The room stat or the programmable
thermostat must be connected to termi-
nals 15-16 of the "TA" connector after
having removed the bridge.
