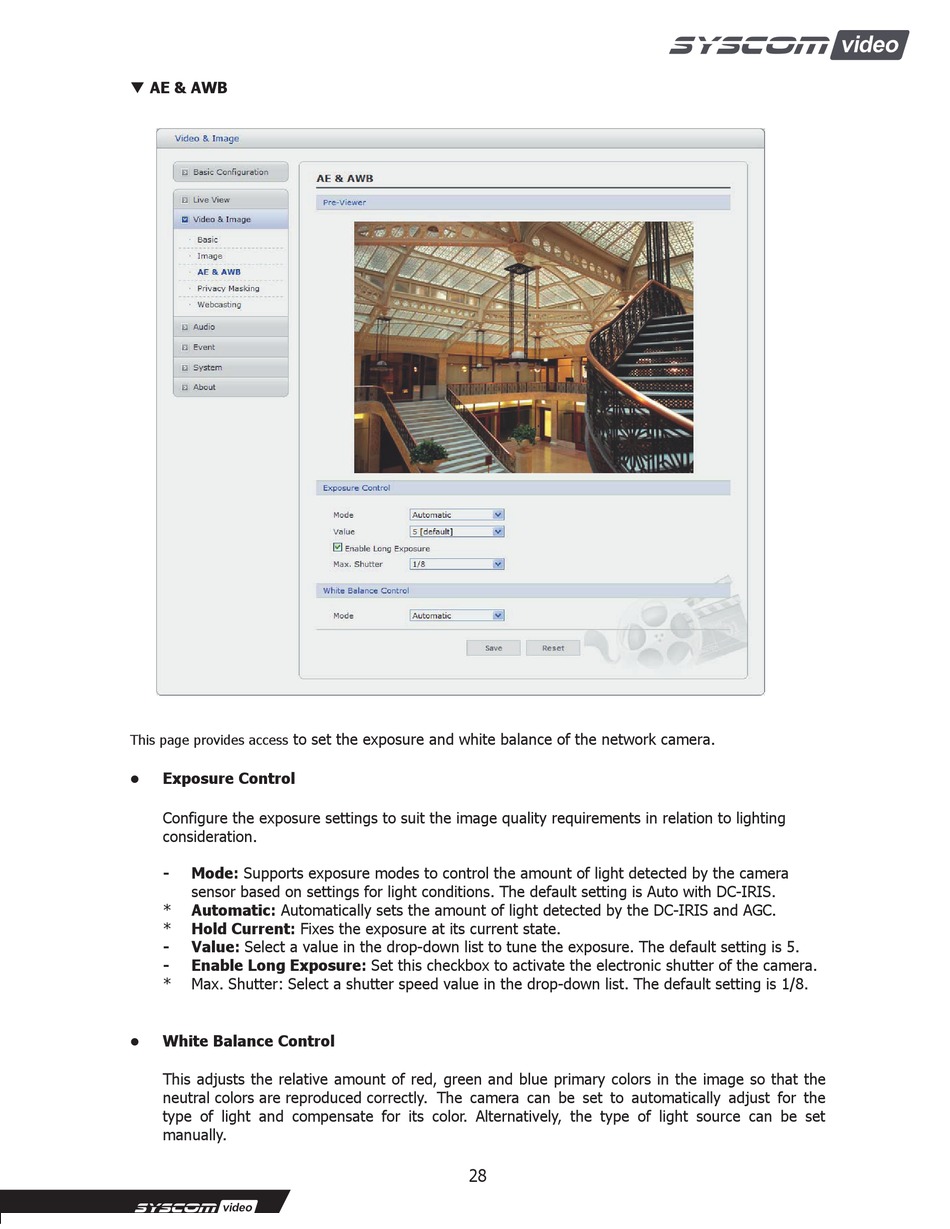

Syscom Video HD Mini Cube Instruction Manual page 28

 AE & AWB
to set the exposure and white balance of the network camera.
This page provides access
• Exposure Control
Configure the exposure settings to suit the image quality requirements in relation to lighting
consideration.
- Mode: Supports exposure modes to control the amount of light detected by the camera
sensor based on settings for light conditions. The default setting is Auto with DC-IRIS.
* Automatic: Automatically sets the amount of light detected by the DC-IRIS and AGC.
* Hold Current: Fixes the exposure at its current state.
- Value: Select a value in the drop-down list to tune the exposure. The default setting is 5.
- Enable Long Exposure: Set this checkbox to activate the electronic shutter of the camera.
* Max. Shutter: Select a shutter speed value in the drop-down list. The default setting is 1/8.
• White Balance Control
This adjusts the relative amount of red, green and blue primary colors in the image so that the
neutral colors are reproduced correctly. The camera can be set to automatically adjust for the
type of light and compensate for its color. Alternatively, the type of light source can be set
manually.
28
