4.4.9 PACKET TEST

From the Programmer Window, Select Utilities – Packet Test
The Packet Test allows the user to simulate a Host/Remote polling environment. The Host will send out a packet to the
Remote and the Remote will reply to the Master with the same packet information. This test is useful for testing the
modem link.
Host Packets Tx'ed

Shows the number of data packet the Host device sent to the Remote
Remote Packets Rx'ed

Shows the number of data packets the Remote device successfully received from the Host
Host to Remote %

Shows the number of data packets the Remote device has successfully sent to the Remote
Remote Packets Tx'ed

Shows the number of data packets the Remote device sent back to the Host
Host Packets Rx'ed

Shows the number of data packets the Host device successfully received from the Remote
Remote to Host %

Shows the percentage of data packets the Remote device successfully sent to the Host

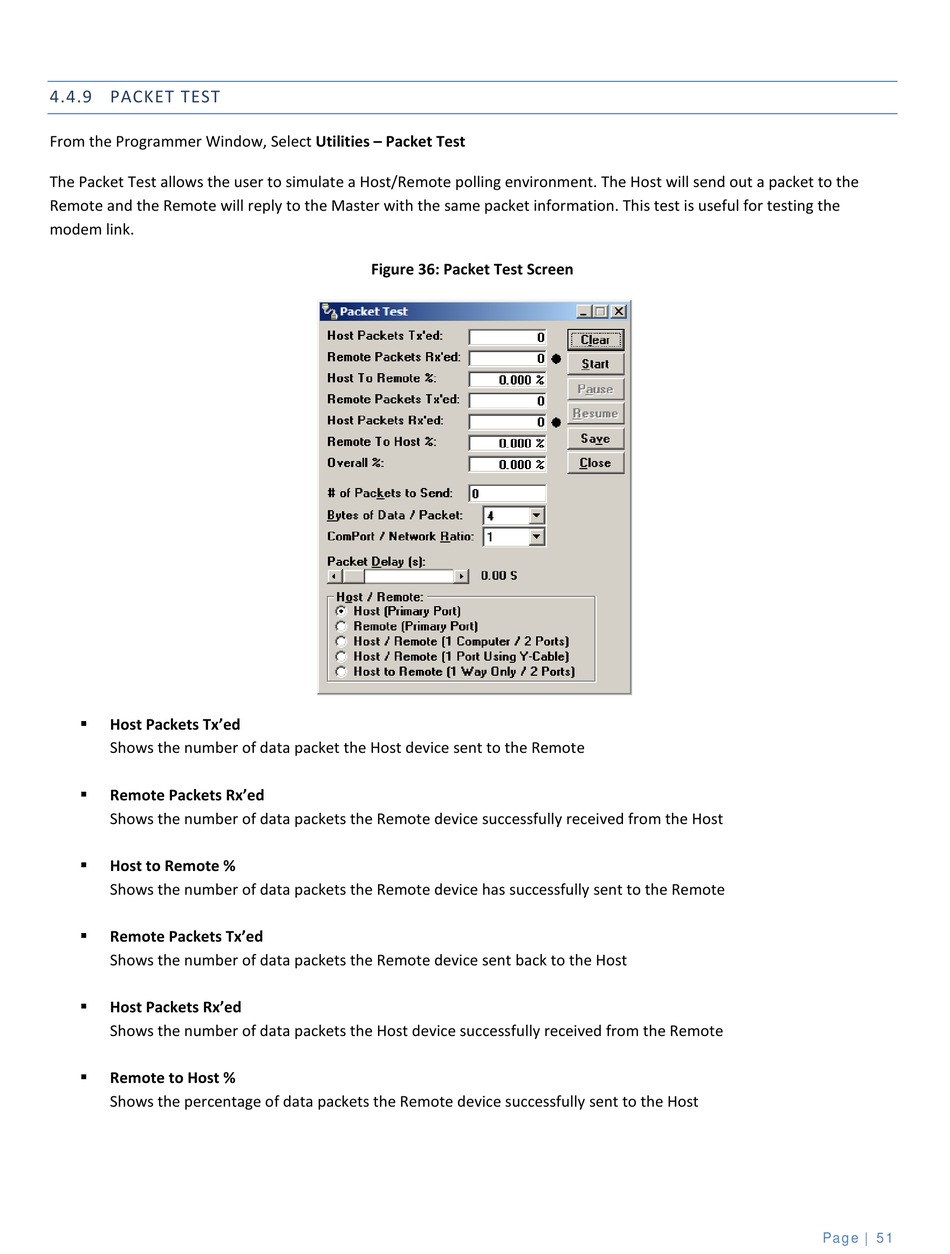

Figure 36: Packet Test Screen
Page | 51
