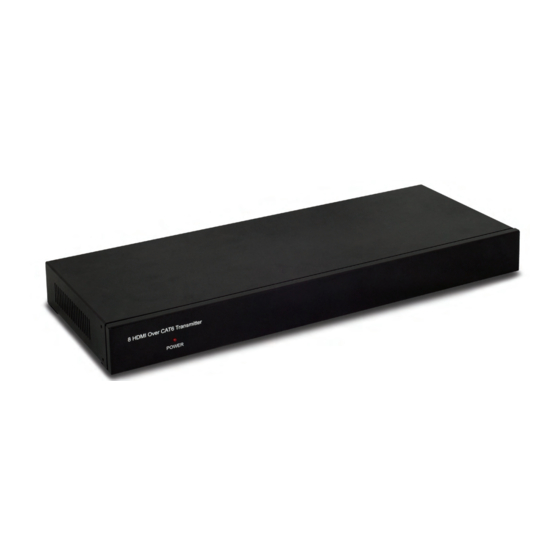

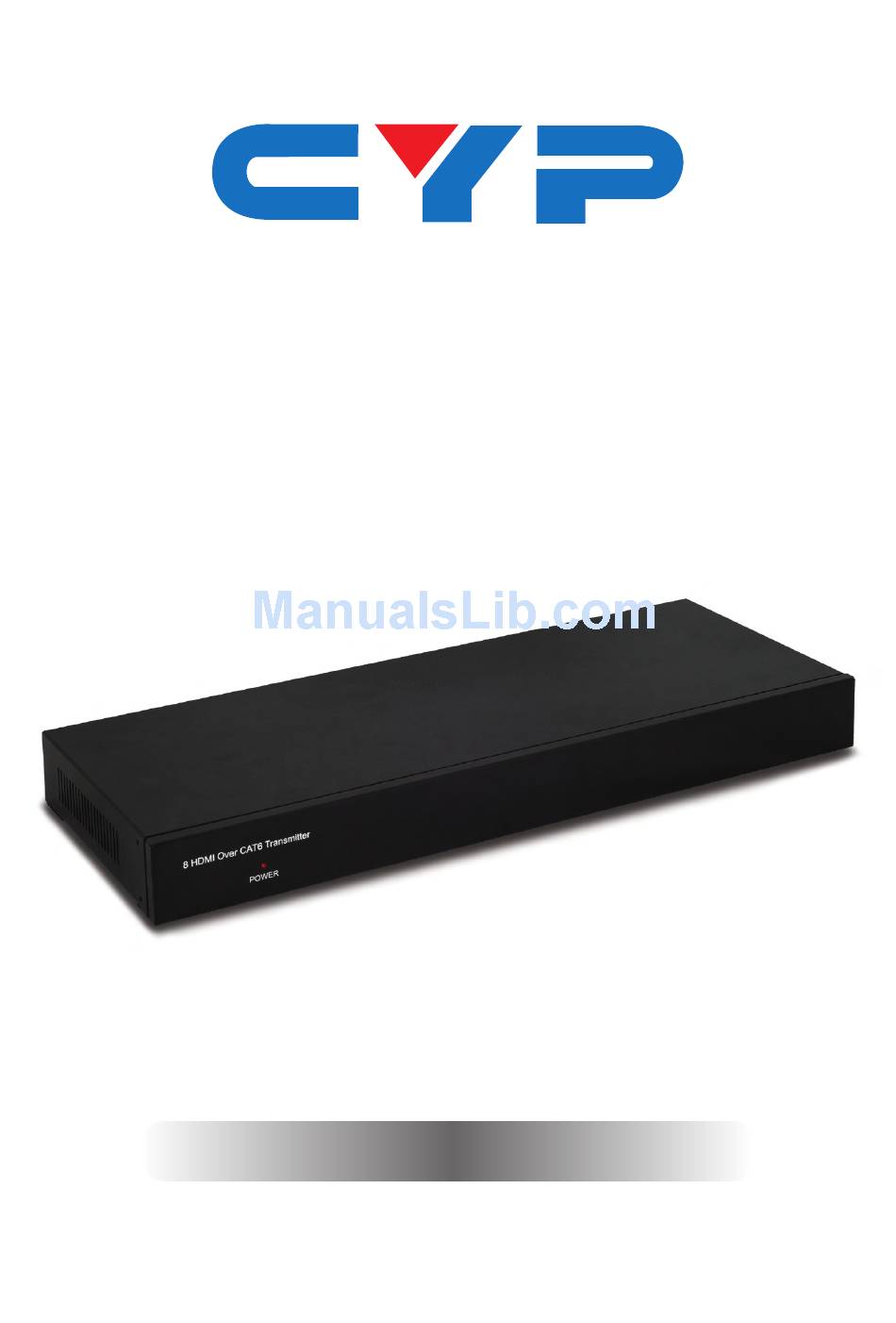

- Page 1 CSI-8H8CVTX 8 HDMI over CAT5e/6/7 Point-to-Point Transmitter Operation Manual Operation Manual...
- Page 3 DisclaiMers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
safety precautiONs Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
cONteNts 1. introduction ..........1 2. applications ........... 1 3. package contents ........ 1 4. system requirements ......1 5. features ..........2 6. Operation controls and functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 7. connection Diagram ......5 8. -
Page 6: Introduction
1. iNtrODuctiON The 8 HDMI over CAT5e/6/7 Point-to-Point Transmitter supports the transmission of uncompressed video (up to 1080p@60 Hz/36-bit) with multichannel digital audio from up to eight high definition sources to up to eight CAT6 outputs. Also, the unit can be used in conjunction with the 8×8 HDMI matrix (optional) to provide switching control, allowing the display of any source device on any output display. -
Page 7: Features
5. features • HDMI, HDCP 1.1 and DVI compliant • Supports HDMI 3D and 4K×2K features • Support CEC bypass • Supports PoE (Power over Ethernet) on compatible receivers only • Supports audio up to 7.1Ch, Dolby TrueHD and DTS-HD Master Audio •... -
Page 8: Operation Controls And Functions
6. OperatiON cONtrOls aND fuNctiONs 6.1 front panel pOwer The LED will illuminate in blue when the power is on. -
Page 9: Rear Panel
6.2 rear panel CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out DC 24V HDMI In 1 HDMI In 1 HDMI In 2 HDMI In 2... -
Page 10: Connection Diagram
7. cONNectiON DiagraM ZONE ZONE ZONE ZONE Displays hDMi Outputs receiver units Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster... - Page 11 ZONE ZONE ZONE ZONE Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out CAT5e/6 In...
-
Page 12: Specifications
8. specificatiONs video Bandwidth 300 MHz/10.2 Gbps input ports 8×HDMI Output ports 8×CAT5e/6/7 input / Output resolution VGA~WUXGA, 480i~1080p hDMi cable Distance Up to 10 meters@8-bit, 6 meters@12-bit cat cable Distance Up to 100 meters@CAT5e/6/7 cable esD protection Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge) power supply... -
Page 13: Acronyms
9. acrONyMs acrONyM cOMplete terM Digital Theater System hDcp High-bandwidth Digital Content Protection hDMi High-Definition Multimedia Interface hDtv High-Definition Television Liquid Crystal Monitor... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
