Summary of Contents for CYP CSI-8H8CV2IR

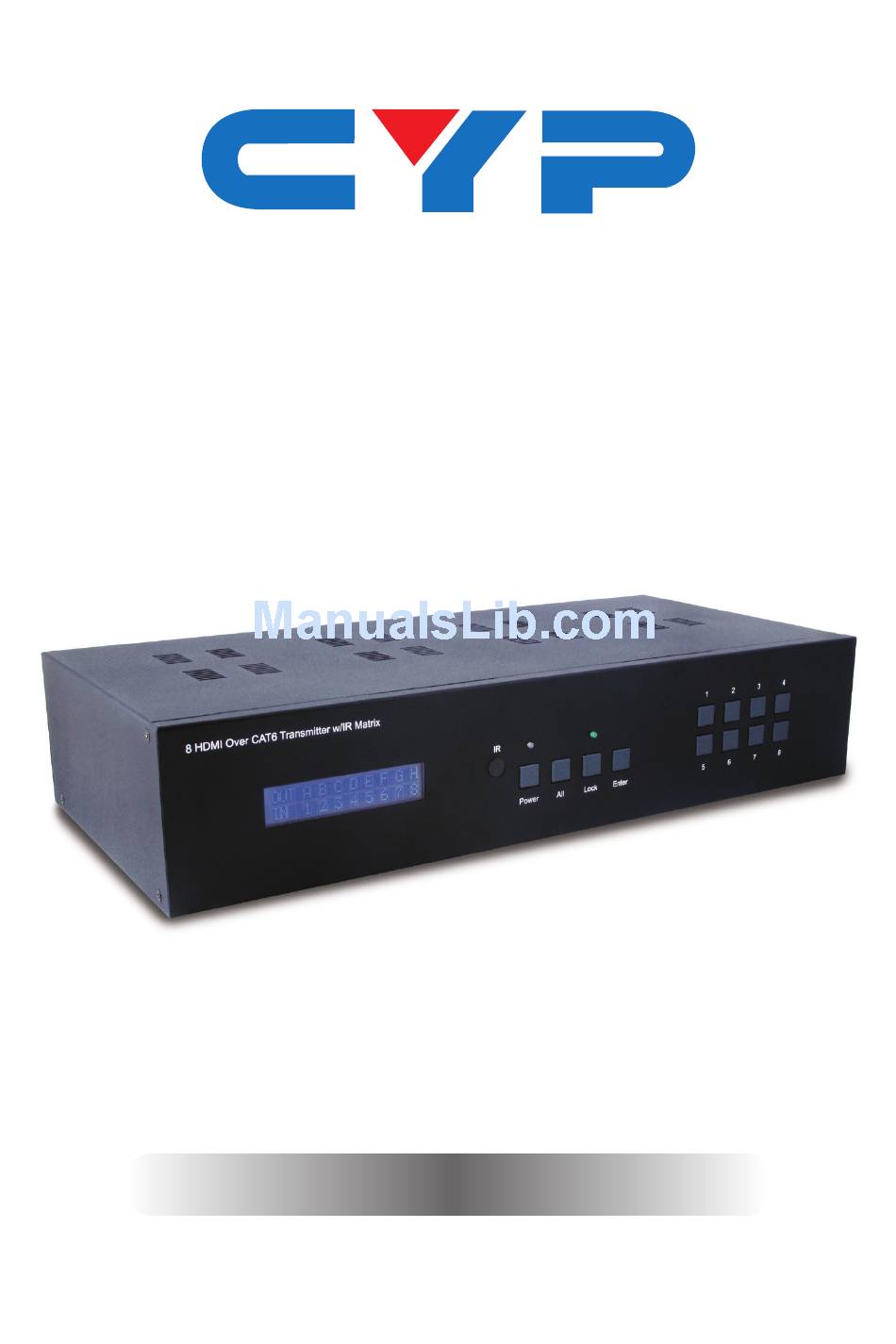

- Page 1 CSI-8H8CV2IR 8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...............1 2. Applications ..............1 3. Package Contents ...........1 4. System Requirements ..........1 5. Features ..............2 6. Operation Controls and Functions ......3 6.1 Front Panel ............3 6.2 Rear Panel ............4 6.3 Remote Control for IR Matrix ......5 6.4 IR Custom Code ..........5 6.5 Discrete IR Codes ..........6 6.6 IR Dip Switch Position with Output Selection..6 6.7 IR Cable Pin Assignment........7... -
Page 6: Introduction
1. INTRODUCTION The 8 HDMI over CAT6 Point-to-Point Transmitter (with IR Matrix) supports the transmission of Video (up to 1080p Full HD/1920×1200@60 Hz) with multichannel digital audio, up to eight pairs of high definition source and CAT5e/6 output. It supports digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Mater Audio. -
Page 7: Features
5. FEATURES • HDMI, HDCP1.1 and DVI compliant • Supports HDMI 3D, 4k x 2k features • Supports Stereo digital audio signal input and output • Supports high bit-rate audio up to 192 kHz • Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings •... -
Page 8: Operation Controls And Functions

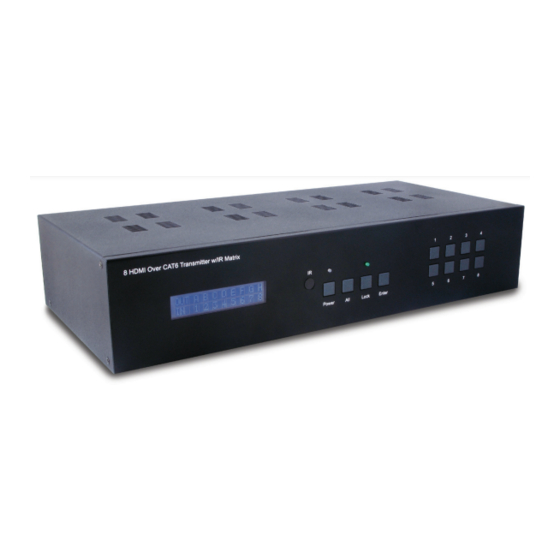

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 8 HDMI Over CAT6 Transmitter w/IR Matrix Power Lock Enter LCM: Displays the information for each IR input and output setting. IR: IR Receiver window (accepts the remote control signal of this device and all output displays or source devices). -
Page 9: Rear Panel
6.2 Rear Panel IR Blaster RS232 IR Extender RS232 MAIN DC 24V CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out CAT Out HDMI In 1 HDMI In 2 HDMI In 3 HDMI In 4 HDMI In 5 HDMI In 6 HDMI In 7... -
Page 10: Remote Control For Ir Matrix
6.3 Remote Control for IR Matrix The remote control unit included in the package is for IR Matrix only, and can be used to control the IR channel mapping of individual or all receivers, depends on the dipswitch setting. There are total of four dipswitches, when all of them are set to ON/↑, the remote control unit is able to control the IR routing of all receivers. -
Page 11: Discrete Ir Codes
6.5 Discrete IR Codes Select / Custom Dipswitch Code output A ↓↓↓↓ 807F output B ↑↓↓↓ 807B output C ↓↑↓↓ 8077 output D ↑↑↓↓ 8073 output E ↓↓↑↓ 803F output F ↑↓↑↓ 803B output G ↓↑↑↓ 8037 output H ↑↑↑↓ 8033 6.6 IR Dip Switch Position with Output Selection Selects... -
Page 12: Ir Cable Pin Assignment
6.7 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Receiver IR Signal Power 5 V Grounding... -
Page 13: Rs-232 Pin Assignments
6.8 RS-232 Pin Assignments CSI-8H8CV2IR Remote Control Console Assignment Assignment Baud Rate: 19200 bps/A or 9600/B Data bit: 8-bit Parity: None Stop bit: 1-bit Flow Control: None... -
Page 14: Rs-232 Commands For Ir Matrix
6.9 RS-232 Commands for IR Matrix Command A Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8... - Page 15 Command B Description POWER 00 Power Off (Standby) POWER 01 Power On PORT 11~18 Output A select Input1~8 PORT 21~28 Output B select Input1~8 PORT 31~38 Output C select Input1~8 PORT 41~48 Output D select Input1~8 PORT 51~58 Output E select Input1~8 PORT 61~68 Output F select Input1~8 PORT 71~78...
-
Page 16: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Link Power Link Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster... - Page 17 ZONE ZONE ZONE Power Link Power Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out 5e/6 In CAT5e/6 In CAT5e/6 In CAT5e/6 In Transmitter Power Supply HDMI...
-
Page 18: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Input Ports 8×HDMI, 9×IR Extender, 1×RS-232 Output Ports 8×CAT5e/6/7, 9×IR Blaster, 1×RS-232 Input/Output Resolution VGA~WUXGA, 480i~1080p@24/50/60, 4kx2k@24/25/30 ESD Protection Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/ UL certified) Dimensions 432 mm (W)×210 mm (D)×93 mm (H) -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120620 MPM-CSI8H8CV2IR...
