Summary of Contents for CYP CH-1103TX

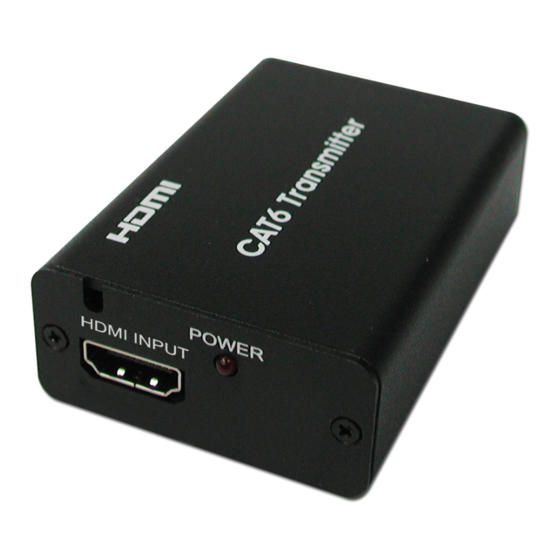

- Page 1 CH-1103TX HDMI v1.3 to CAT6 Transmitter Operation Manual CH-1103TX...
- Page 2 TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Operation Controls and Functions..........1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Connection and Installation............2 6. Specifications................2...
- Page 3 1. Introduction This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz.
- Page 4 CAT-6 cable. 5. Connection and Installation HDMI VIDEO Cable HDMI DVD PLAYER Cable CH-1103TX CH-1103RX HDMI LCD TV 6. Specifications Input port 1 x HDMI Output ports 1 x CAT-6 output for Video, 1 x CAT-6 output for DDC...
- Page 5 CH-1103Rx CAT6 to HDMI Receiver Operation Manual CH-1103RX...
- Page 6 TABLE OF CONTENTS 1. Introduction................. 1 2. Main Features................1 3. Package Contents..............1 4. Operation Controls and Functions..........1 4.1 Front Panel................1 4.2 Rear Panel................2 5. Connection and Installation............2 6. Specifications................2...
- Page 7 1. Introduction This is the Receiver (Rx) unit of CAT6 to HDMI Solution that can receive the digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz.
- Page 8 5. Connection and Installation HDMI VIDEO Cable HDMI DVD PLAYER Cable CH-1103TX CH-1103RX HDMI LCD TV 6. Specifications Input ports 1 x CAT-6 input for Video, 1 x CAT6 input for DDC Output port 1 x HDMI Dimensions (mm)
