- Page 1 CH-1107 TX HDMI v1.3 over ONE CAT6 HDMI Transmitter Operation Manual CH-1107 TX...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................2 6. Specifications ................3 7. Operation Controls and Functions ..........4 Front Panel ..............4 Rear Panel .............. -
Page 5: Introduction
1. Introduction The HDMI 1.3 transmitter over ONE CAT6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a bandwidth up to 225MHz. -
Page 6: Features
5. Features HDMI 1.3, HDCP 1.1 and DVI1.1 compliant. Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio . Uses one CAT6 cable for data/DDC transmission. -
Page 7: Specifications
6. Specifications Video Bandwidth 2.25MHz/6.75Gbps Transmitter Input/Output Ports 1 x HDMI Female port/1 x CAT6 Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 78.5 (W) X 102 (d) X 30 (H) / Tx Weight(g) 182 / Tx Chassis Material... -
Page 8: Operation Controls And Functions

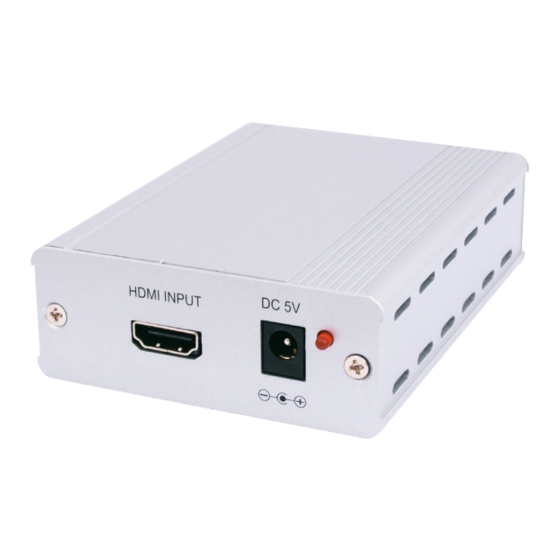

7. Operation Controls and Functions 7.1 Front Panel CH-1107TX DC 5V HDMI INPUT ① ② ① HDMI INPUT: This slot is where you connect the HDMI or DVI output port of your source equipment such as DVD/Blu-ray players or Set-top- boxes with an HDMI cable or link up with another receiver unit from the same family to extend a signal over long distances. -
Page 9: Rear Panel
7.2 Rear Panel CH-1107TX CAT6 OUT EDID 10 Bit TV/STD 8 Bit 12 Bit ① ② ① EDID Control Switcher: Switch the EDID between STD and TV. Switch to STD to use the built-in EDID or switch to TV to use the TV’s EDID. The default factory setting is TV, leave as is when the display is working properly. -
Page 10: Connection And Installation
8. Connection and Installation HDMI CAT6 HDMI Cable Cable Cable 20M/8-bit 45M/8-bit LCD TV CH-1107TX HDMI over Single CAT6 Receiver... -
Page 11: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 Cable EDID Extended display identification data HDMI High-Definition Multimedia Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101125 MPM-CH1107TX...
