Summary of Contents for CYP CH-352TX

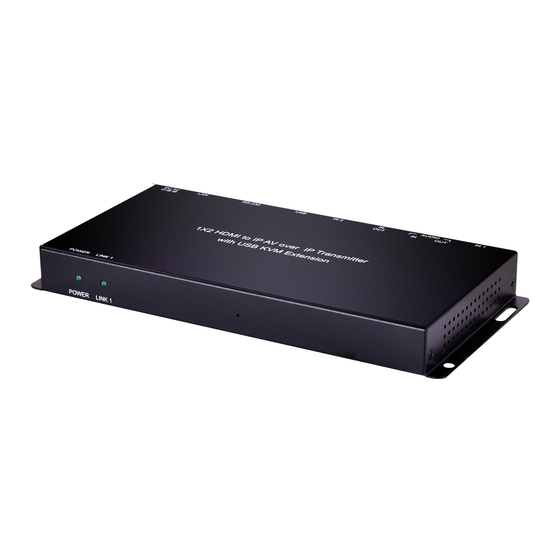

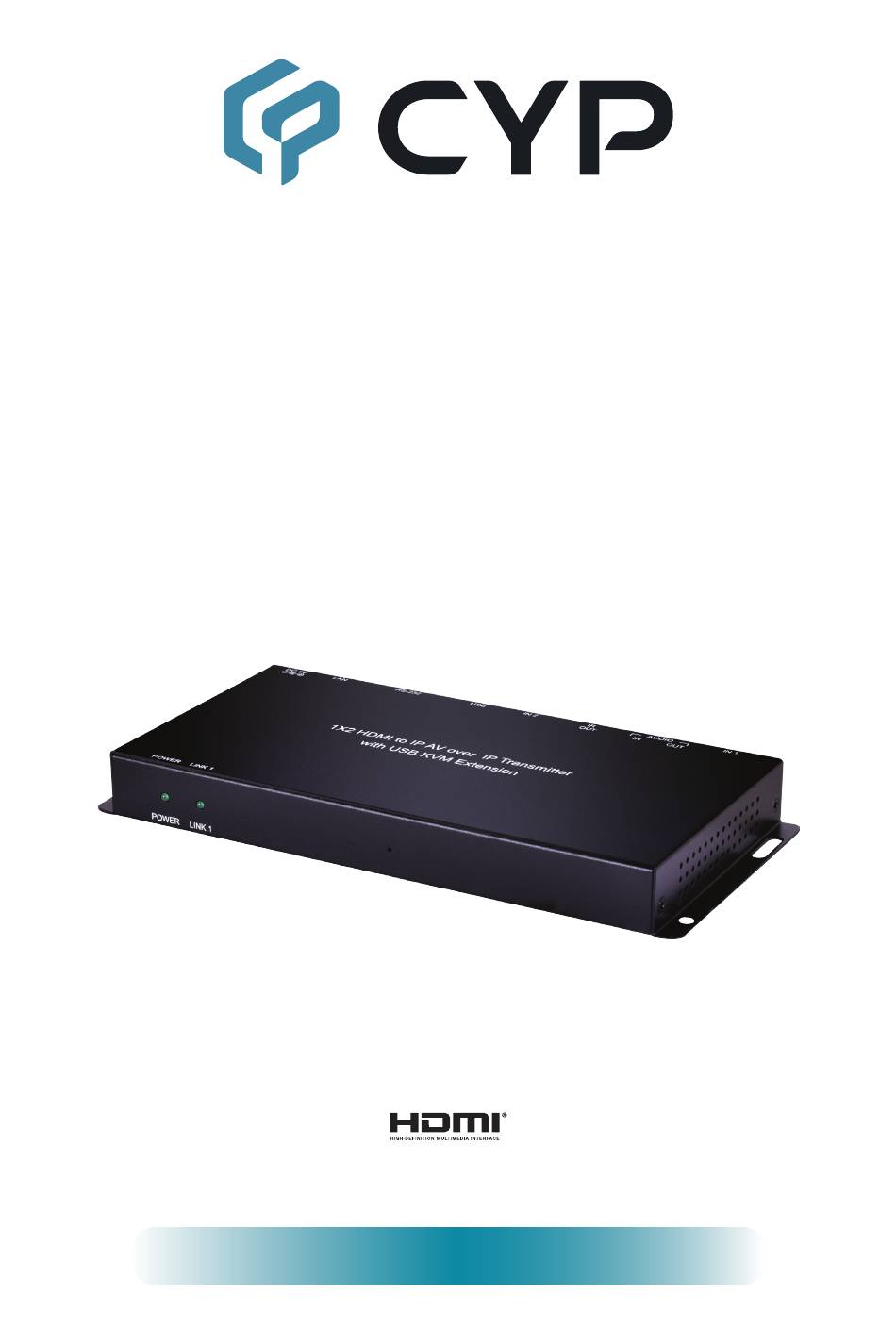

- Page 1 CH-352TX Dual HDMI to IP Transmitter with USB KVM Extension Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........2 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 6.3 IR Cable Pinouts.......... 5 6.4 RS-232 Pinout and Defaults ...... -
Page 6: Introduction
1. INTRODUCTION This Dual HDMI to IP Transmitter solution is designed to independently extend a pair of HDMI sources to a pair of remote HDMI outputs via a standard Gigabit Ethernet network connection. Both HDMI inputs provide support for resolutions up to 1920x1200@60Hz along with many audio formats including 8 channel LPCM and standard Bitstream. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles, PCs or set-top boxes. • A compatible dual-AVoIP receiver • Analog audio receiving equipment such as headphones, audio amplifiers or powered speakers. • A Gigabit Ethernet network switch with jumbo frame support is required. (8K jumbo frames are strongly recommended) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LINK 1 POWER LED: This LED will flash while the unit is powering on and will illuminate solidly once it is ready to be used. LINK 1 LED: If the unit has no network connection this LED will not illuminate. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO DC 5V IN 1 IN 2 RS-232 OUT 1 Port: Connect to HDMI source equipment such as a media player, game console or set-top box. Note: When paired with it’s standard dual HDMI receiver, this input will route directly to the Out 1 port on the connected receiver. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster Cable Power Infrared Not Used 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 115200 Data Bits DE-9 Female Port Parity Bits None Stop Bits Flow Control None... -
Page 11: Webgui Control
6.5 WebGUI Control • Device Discovery Please obtain the “Device Discovery” software from your authorized dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery”... - Page 12 • WebGUI Overview Each unit contains 2 independent AVoIP transmitters, and each of those is controlled by their own WebGUI interface which may be accessed by opening a standard web browser on a PC and typing in the IP address of the unit you wish to connect to.
-
Page 13: System Tab
6.5.1 System Tab The System tab contains four windows that provide access to firmware version information, a firmware update interface, utilities for rebooting and resetting the unit, basic EDID management, Telnet command entry, and a variety of statistics and information about the operational state of the unit. 1) Version Information: This window displays detailed information about this transmitter’s current firmware version. - Page 14 3) Utilities Window: The Utilities window provides control over some system-level functions. „ Factory Default: Users can reset this transmitter back to the factory defaults by clicking this button. „ Reboot: The unit may be rebooted (without resetting settings) by pressing this button.
- Page 15 4) Statistics Window: The Statistics window shows all available information about the operational status of the unit, including current Host ID Name, SN, Ethernet information, MAC address, broadcasting mode, link status and link mode.
-
Page 16: Network Tab
6.5.2 Network Tab The Network tab provides control over this transmitter’s IP configuration. Changes made to the network settings will require a reboot of the unit. After clicking on “Apply” please follow the reboot instructions in the WebGUI. Note: If the IP address is changed then the IP address required for WebGUI and Telnet access will also change accordingly. -
Page 17: Functions Tab
„ Find Your Device: Selecting “Show Me” will cause the unit to immediately begin flashing the LEDs on the front of the unit to make it easy to find. Selecting “Hide Me” returns the LEDs to their normal behavior. This setting is useful when troubleshooting an installation with a large number of units in a rack. - Page 18 1) Video over IP: This section allows control over the streaming bit rate and transmission quality. „ Maximum Bit Rate: Set the maximum bit rate that can be used by the output video stream. Available options are: Unlimited, 400 Mbps, 200 Mbps, 100 Mbps, 50 Mbps.
-
Page 19: Telnet Control
6.6 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. Start your preferred Telnet/Console client, or use the built in client provided by most modern computer operating systems. After starting the client, connect by using the current IP address of the unit and port 23 (if the communication port number used by the unit has not been changed previously). - Page 20 COMMAND Description and Parameters get_device_name Show the transmitter’s current device name. factory_reset N1 Perform a factory reset on the transmitter and select the IP Mode to use after the reset completes. Available values for N1: [Reset into Static IP mode] [Reset into Auto IP mode] reboot...
- Page 21 COMMAND Description and Parameters get_netmask Show the transmitter’s current netmask. set_gateway N1 Set the transmitter’s static gateway address. N1 = X.X.X.X [X = 0~255, Gateway address] get_gateway Show the transmitter’s current gateway address. set_jumbo_mtu N1 Enable/disable the transmitter’s jumbo frame MTU support. Available values for N1: [Disabled] [Enabled]...
- Page 22 COMMAND Description and Parameters set_hdcp_allow N1 Enable/disable HDCP encrypted source support for this transmitter. Available values for N1: [Disabled] [Enabled] get_hdcp Show this transmitter’s current HDCP support state. set_bandwidth N1 Set the transmitter’s broadcast stream bandwidth maximum. Available values for N1: [50 Mbps] [100 Mbps] [200 Mbps]...
- Page 23 COMMAND Description and Parameters get_serial_baud Show the current serial baud rate. Note: Valid on Transmitter 1 only. set_serial_bits N1 Set the number of serial data bits. Available values for N1: [5 bits] [6 bits] [7 bits] [8 bits] Note: Valid on Transmitter 1 only. get_serial_bits...
- Page 24 COMMAND Description and Parameters get_serial_stop Show the current number of serial stop bits. Note: Valid on Transmitter 1 only. a N1 Set the audio input source selection for Transmitter 1. Available values for N1: [HDMI 1 audio] [Line In audio] AUTO [Auto select] Note: Valid on Transmitter 1 only.
-
Page 25: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray Player 1.5m 60° IR Output POWER LINK 1 AUDIO DC 5V IN 1 IN 2 RS-232 HDMI Input Analog Stereo Input HDMI Input USB Peripherals EDID POWER LINK 1 AUDIO DC 5V OUT 1 IR IN OUT 2 RS-232 HDMI... -
Page 26: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 6.75Gbps Input Ports 2×HDMI (Type-A) 1×Analog Stereo (3.5mm) Output Port 1×Analog Stereo (3.5mm) Output/Control Port 1×LAN (RJ-45) Pass-through Ports 1×IR Blaster (3.5mm) 1×RS-232 (DE-9) 1×USB (Type-B) IR Frequency 30 ~ 50kHz (30 ~ 60kHz under ideal conditions) Baud Rate Up to 115200 Power Supply... -
Page 27: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI Streaming 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 28 Input Output Supported Resolutions (Hz) HDMI Streaming 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 3840×2160p@50/60 4096×2160p@24/25/30 ...
-
Page 29: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Streaming Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard 8.3.2 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 10kΩ... -
Page 30: Avoip Audio Availability (Auto Mode)
8.3.3 AVoIP Audio Availability (Auto Mode) Connected Audio Sources Audio Source Output HDMI 1 IN LINE IN LINE IN HDMI 1 LINE OUT LINE OUT (TX) (TX) (RX) OUT (RX) (TX) (RX) ● ● ● ■ ■ ■ ● ■... -
Page 31: Cable Specifications
8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) 8-bit 12-bit 8-bit 8-bit Cable Length High Speed HDMI Cable HDMI Input Ethernet Cable Cat.5e/6 100m Cat.6A/7 100m Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 32: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Analog-to-Digital Converter Audio/Video AVoIP Audio/Video over IP Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter Decibel DHCP Dynamic Host Configuration Protocol Digital Visual Interface EDID Extended Display Identification Data... - Page 33 ACRONYM COMPLETE TERM MJPEG Motion JPEG Megahertz On-Screen Display Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Universal Serial Bus Video Graphics Array VLAN Virtual LAN VoIP Video over IP WUXGA (RB)
- Page 36 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
