ORiNG IES-3000 Series Quick Installation Manual

ORing Industrial Networking Corp.
SWITCH
I N D U S T R I A L Q I
uick nstallation
Introduction
IES-3000 Series are industrial managed Redundant Ethernet switches With
completely support of Ethernet Redundancy protocol, O-Ring (recovery time <10ms
over 250 unit of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE
802.1s/w/D) can protect your mission-critical from network interruptions or temporary
malfunctions with its fast recovery technology. Another Open-Ring technology is
also supported witch can applied for other vendor's proprietary ring.
Series can be managed centralized and convenient by a powerful windows utility-
Open-Vision. In addition, the wide operating temperature range from -40 C to 70 C
can satisfy most of operating environment. Therefore, the switch is one of the most
reliable choice for highly-managed and Fiber Ethernet application.
Features
World's fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250
units of connection)
Open-Ring support the other vendor's ring technology in open architecture
O-RSTP support applications with complex topology
STP/RSTP/MSTP supported
Support PTP Client (Precision Time Protocol) clock synchronization
IGMP snooping for filtering multicast traffic
Port Trunking for easy of bandwidth management
RMON for traffic monitoring
Event notification through Syslog, Email, SNMP trap, and Relay Output
Port lock to prevent access from unauthorized MAC address
Windows utility (Open-Vision) support centralized management and configurable
by Web-based, Telnet, Console, CLI
o
Very wide operating temperature range from -40 to 70 C
Rigid IP-30 housing design
DIN-Rail and panel mounting enabled
O-Ring Ethernet Redundant Technology
ORing's switches are intelligent switches. Different from other traditional redundant
switches, ORing provides a set of Windows utility (Open-Vision) for user to manage for
user to monitor all of industrial Ethernet switches on the industrial network.
Redundant Ring (<10mS): O-Ring Topology View
PLC
IES-3080
IPC
O-Ring
IES-3080
(<10mS)
IES-3082GP
IES-3073GC
IP Camera
Monitoring and Configuration interface
Q I G
IES-3000 Series
IES-3000 Series
G
uide
Specifications
.
8-port Managed Switches

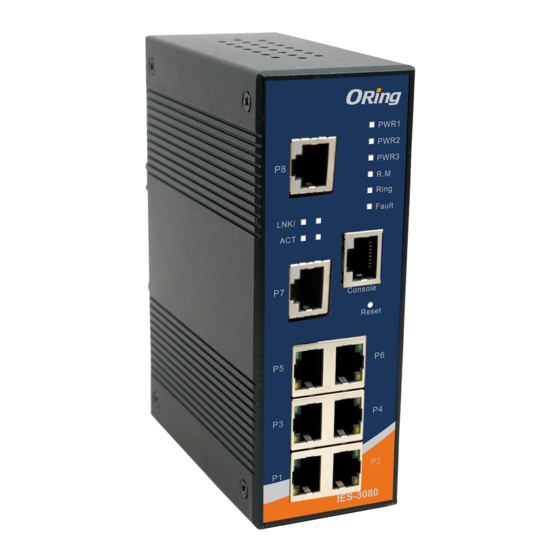

ORing Switch Model IES-3080 IES-3062GT IES-3062FX-MM
IES-3000
Physical Ports
o o
10/100 Base-T(X) Ports in RJ45
8 6 6
Auto MDI/MDIX
10/100/1000Base-T(X) Ports
- 2 -
in RJ45 Auto MDI/MDIX
100Base-FX Multimode Port
- - 2
(2KM,1310nm,SC connector)
100Base-FX Singlemode Port
- - -
(30KM,13100nm,SC connector)
1000Base-SX Multimode Port
- - -
(550M,850nm,SC connector)
1000Base-LX Singlemode Port
- - -
(10KM,1310nm,SC connector)
1000Base-X SFP Port - - -
Gigabit combo in RJ-45 and
- - -
SFP
Technology
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X) and 100Base-FX, IEEE 802.3ab for 1000Base-T,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol), IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol), IEEE 802.1p for COS (Class of service),
Ethernet Standards
IEEE 802.1Q for VLAN Tagging, IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol), IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
4
Priority Queues
Processing Store-and-Forward
Switch latency: 7 us
Switch bandwidth: 5.6Gbps
Switch Properties
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
Security Features VLAN (802.1q) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
PTP Client ( Precision Time Protocol) clock synchronizing function
TOS/Diffserv supported
Software Features
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
O-Ring, Open-Ring, O-RSTP, STP, RSTP, MSTP
Network Redundancy
RS-232 Serial Console Port RS-232in RJ45 connector with console cable. Baud rate setting: 9600bps, 8, N, 1
LED indicators
Power Indicator Green: Power LED x3
R.M. Indicator Green: Flashing to indicate system operated in O-Ring Master mode
O-Ring indicator Green: Indicate system operated in O-Ring mode
Fault Indicator
Amber: Indicate excepted event occurred
10/100 Base-T(X) RJ45 Port
Green for port Link/Act. Amber for Duplex/Collision
Indicator
Green for port Link/Act. Amber for Link
Fiber Port Indicator
Fault contact
Relay output to carry capacity of 1A at 24 VDC
Relay
Power
Redundant Input power Triple DC inputs. 12-48VDC on 7-pin terminal block, 12-45VDC on power jack
Power consumption(Typ.) 4 Watts 7 Watts 8 Watts
Overload current protection Present
Reverse polarity protection Present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 52(W)x106(D)x144(H) mm (2.05x4.17x5.67 inch.)
Weight (g) 710 g 722 g 735 g
Environmental
IES-3062FX-SS IES-3062GF-MM IES-3062GF-SS o
Storage Temperature -40 to 85 C (-40 to 185 F)
Operating Temperature -40 to 70 C (-40 to 158 F) o
Operating Humidity 5% to 95% Non-condensing
6 6 6
Regulatory approvals
- - -
EMI FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EMS
EN61000-4-3 (RS),
- - -
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
2 - - EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
- 2 -
Shock IEC60068-2-27
IEC60068-2-32
Free Fall
- - 2
Vibration IEC60068-2-6
- - -
Safety EN60950-1
Warranty 5 years
- - -
10-port/18-port Managed Switches
ORing Switch Model IES-3082GP
Physical Ports
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX
1000Base-X SFP Port
Gigabit combo in RJ-45 and
SFP
Technology
IEEE 802.3 for 10Base-T, IEEE 802.3u for
100Base-T(X) and 100Base-FX,
IEEE 802.3z for 1000Base-X,
IEEE 802.3ad for LACP (Link Aggregation
Control Protocol),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree
Protocol), IEEE 802.1p for COS (Class of
Ethernet Standards service), IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning
Tree Protocol),IEEE 802.1s for MSTP
(Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer
Discovery Protocol)
8192 MAC addresses
MAC Table
Priority Queues 4
Store-and-Forward
Processing
Switch latency: 7 us
Switch bandwidth: 5.6Gbps
Switch Properties
Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024
Port rate limiting: User Define
Enable/disable ports, MAC based port security
Port based network access control (802.1x)
Security Features
VLAN (802.1q) to segregate and secure network traffic
Radius centralized password management
SNMPv3 encrypted authentication and access security
STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units
PTP Client ( Precision Time Protocol) clock synchronizing function
Software Features TOS/Diffserv supported
8 Watts 6 Watts 6 Watts
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
Network Redundancy O-Ring, Open-Ring, O-RSTP, STP, RSTP, MSTP
RS-232 Serial Console Port RS-232in RJ45 connector with console cable. Baud rate setting: 9600bps, 8, N, 1
LED indicators
735 g 740 g 740 g
Power Indicator Green: Power LED x3
www.oring-networking.com
Industrial Managed Ethernet Switch
R.M. Indicator
o O-Ring indicator
Fault Indicator
o
10/100 Base-T(X)
Indicator
10/100/1000Base-T(X)
Port Indicator
1000X/Fiber Port Indicator
Fault contact
Relay
Power
Redundant Input power
Power consumption(Typ.)
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
IES-3162GC IES-3073GC
Operating Temperature
Operating Humidity
8 16 7 Regulatory approvals
EMI
2 - -
EMS
- 2 3
IEEE 802.3 for 10Base-T, IEEE 802.3u for IEEE 802.3 for 10Base-T, IEEE 802.3u for
100Base-T(X) and 100Base-FX, 100Base-T(X) and 100Base-FX,
Shock
IEEE 802.3z for 1000Base-X, IEEE 802.3z for 1000Base-X,
IEEE 802.3ab for 1000Base-T, IEEE 802.3ab for 1000Base-T, Free Fall
IEEE 802.3ad for LACP (Link Aggregation IEEE 802.3ad for LACP (Link Aggregation
Vibration
Control Protocol), Control Protocol),
IEEE 802.3x for Flow control, IEEE 802.3x for Flow control,
Safety
IEEE 802.1D for STP (Spanning Tree IEEE 802.1D for STP (Spanning Tree
Protocol), IEEE 802.1p for COS (Class of Protocol), IEEE 802.1p for COS (Class of
Warranty
service), IEEE 802.1Q for VLAN Tagging, service), IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid IEEE 802.1w for MSTP, RSTP (Rapid
Spanning Tree Protocol), Spanning Tree Protocol),
IEEE 802.1s for MSTP (Rapid IEEE 802.1s for MSTP (Rapid
Spanning Tree Protocol), Spanning Tree Protocol),
IEEE 802.1x for Authentication, IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer IEEE 802.1AB for LLDP (Link Layer
Discovery Protocol) Discovery Protocol)
Switch latency: 7 us Switch latency: 7 us
Switch bandwidth: 7.2Gbps Switch bandwidth: 7.4Gbps
Max. Number of Available VLANs: 4096 Max. Number of Available VLANs: 4096
IGMP multicast groups: 1024 IGMP multicast groups: 1024
Port rate limiting: User Define Port rate limiting: User Define
PRINTED ON RECYCLED PAPER
Version 1.1
Green: Flashing to indicate system operated in O-Ring Master mode
Green: Indicate system operated in O-Ring mode
Amber: Indicate unexpected event occurred
RJ45 Port
Green for port Link/Act. Amber for Duplex/Collision
RJ45
Green for port Link/Act. Amber for 100Mbps indicator
Green for port Link/Act.
Relay output to carry capacity of 1A at 24 VDC
Triple DC inputs. 12-48VDC on 7-pin Dual DC input 12-48VDC on 6-pin terminal block
terminal block, 12-45VDC on power jack
9 Watts 12 Watts
Present
Present on terminal block
IP-30
52(W)x106(D)x144(H) mm 74.3(W)x109.2(D)x153.6(H) mm (2.93x4.3x6.05 inch.)
(2.05x4.17x5.67 inch.)
730 g 1070 g
o o
-40 to 85 C (-40 to 185 F)
-40 to 70 C (-40 to 158 F) o o
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
ORing Industrial Networking Corp.
Copyright© 2008 ORing
All rights reserved.
TEL: +886-2-2918-3036 Website: www.oring-networking.com
FAX: +886-2-2918-3084 E-mail: support@oring-networking.com
Quick Installation Guide
