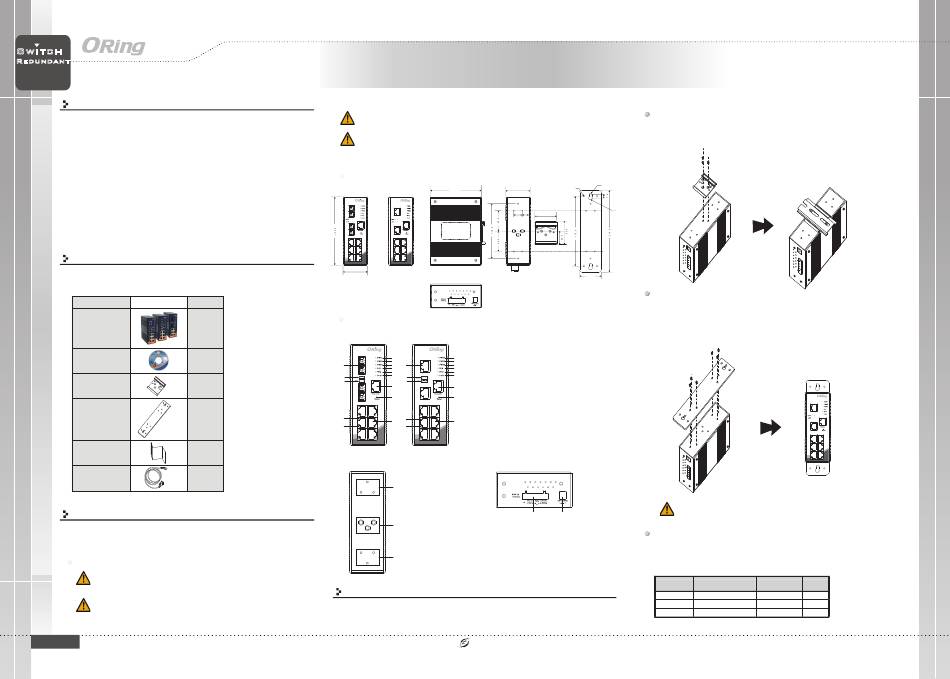

ORiNG IES-3080 Series Quick Installation Manual

Switch
Redundant
Q I
I N D U S T R I A L uick nstallation
Introduction
IES-3080 / IES-3062 series are managed Redundant Ring Ethernet switches with
6x10/100Base-T(X) and 2x10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX or
1000Base-LX ports. With completely support of Ethernet Redundancy protocol, O-Ring
(recovery time < 10/30ms over 250 units of connection), O-Chain, MRP*NOTE and
MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from
network interruptions or temporary malfunctions with its fast recovery technology. O-
Chain is the revolutionary network redundancy technology that provides the add-on
network redundancy topology for any backbone network, O-Chain allows multiple
redundant network rings of different redundancy protocols to join and function together as
a larger and more robust compound network topology. O-Chain providing ease-of-use
while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-
effectiveness in one set of network redundancy topology. IES-3080 / IES-3062 series
can be managed centralized and convenient by a powerful windows utility — Open-Vision.
In addition, the wide operating temperature range from -40 C to 75 C can satisfy most of
operating environment. Therefore, the switch is one of the most reliable choice for highly-
managed Fiber Ethernet application.
*NOTE: This function is available by request only
Package Contents
The series are shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures Number
IES-3080/
IES-3062GT
IES-3062FX-MM-SC/
IES-3062FX-SS-SC/
IES-3062GF-MM-SC/
IES-3062GF-SS-SC/
CD
DIN-rail Kit
Wall-mount Kit
QIG
Console Cable
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Q I G
IES-3080/3062 Series
IES-3080/3062 Series
G
uide
Mechanical Loading: Make sure the mounting of the equipment is not in a hazardous
condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to the
supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings should
be used when addressing this concern.
Dimension
G2
(P8)
o o
G1
(P7)
P5 P6
P3 P4
P1 P2
IES-3062
52.0

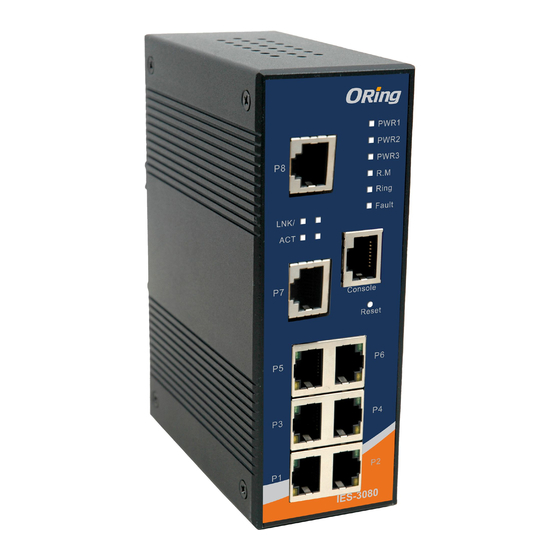

Panel Layouts
X 1
Front View
X 1
8
G2
(P8)
9
10
X 1
G1
(P7)
P5 P6
X 1 11
P3 P4
12
P1 P2
IES-3062
X 1
Rear View
X 1
Installation
Use the mounting kits attached with the package and follow the steps below to install the switch
to a rail or to the wall.
1907-200-E3062XXXX2-FX011
Unit =mm (Tolerance ±0.5mm)
52.0 Ø4.0
107.1
G2
(P8)
45.0
18.0 14.1
G1
(P7)
P5 P6
P3 P4
P1 P2
IES-3080
1. PWR1 LED
1 1
2. PWR2 LED
2
2
3 13 3
G2
3. PWR3 LED
4 (P8)
4
5 5
4. R.M status LED
6
6
9
5. Ring status LED
10
14
14 6. Fault indicator
G1
7. Reset button
(P7)
7 7
8. Fiber ports
9. LNK/ACT LED for G1(or P7)
P5 P6
10. LNK/ACT LED for G2(or P8)
11
11. LNK/ACT for P1 to P6
13 13
P3 P4
12 12. Duplex/Collision LED for P1 to P6
13. LAN ports
P1 P2
14. Console port
IES-3080
Bottom View
1. Din-rail screw holes
2
2. Wall-mount screw holes
1 2
1
1. Terminal blocks: PWR1, PWR2
, Relay, Ground
2. DC jack power input
2
PRINTED ON RECYCLED PAPER
Industrial Managed Ethernet Switch
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in the
middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch clicks
into the rail firmly.
Ø5.0
Ø8.0
51.0
Wall-mounting
Step 1: Screw the wall-mount kit (in the package) onto the back of the switch. A total of
six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the wall-mounting screws.
Step 3: Insert a screw head through the large part of the keyhole-shaped aperture on the
plate, and then slide the switch downwards. Tighten the screw for added stability.
Instead of screwing the screws in all the way, it is advised to leave a space of
about 2mm to allow room for sliding the switch between the wall and the
screws.
Network Connection
The series have standard Ethernet ports. Depending on the link type, the switch uses CAT
3, 4, 5, 5e UTP cables to connect to network devices (PCs, servers, switches, routers, or
hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable Type Max. Length
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
Version 2.1
G2
(P8)
G1
(P7)
P5 P6
P3 P4
P1 P2
IES-3080
Connector
RJ-45
RJ-45
RJ-45
Quick Installation Guide
