INSTALLATION & USER INSTRUCTIONS
MULTIFLUE/CONVECTOR INSET GAS FIRE
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk
Questions or problems with your appliance?
Don't take it back to the store
01202 588601
just give us a call on
lines open between 9am and 5pm, Monday to Friday
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, including
copyright in the text, images and layout of this booklet is owned by
Focal Point Fires plc. You are not permitted to copy or adapt any of
the content without the prior written permission of Focal Point Fires
plc.
MODELS COVERED BY THESE INSTRUCTIONS
BLENHEIM MULTIFLUE
LULWORTH MULTIFLUE
EXCELSIOR MULTIFLUE
VOGUE
*
AURA MULTIFLUE
*
FINSBURY MULTIFLUE
**
SOHO MULTIFLUE
†
BI-FLAME
*
HORIZON MULIFLUE
† †
LANGHAM MULTIFLUE
* AVAILABLE WITH MANUAL CONTROL ONLY
† AVAILABLE WITH MANUAL OR SLIDE CONTROL
† † AVAILABLE WITH MANUAL OR REMOTE CONTROL
** AVAILABLE WITH MANUAL, SLIDE CONTROL OR REMOTE CONTROL

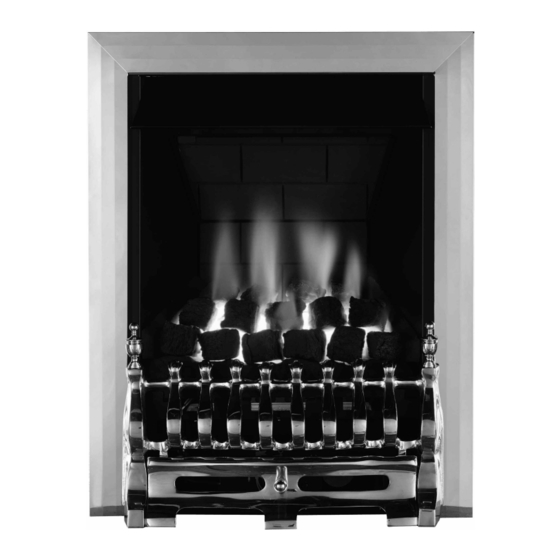

MODEL SHOWN: BLENHEIM MULTIFLUE
we're here to help
1
**
† †
*
† †
All instructions must be handed to the user for
safekeeping.
Revision D - 03/13
GB IE
BS 7977-1 : 2009
BS EN 509 : 2000
KM579168
© 2013 Focal Point Fires plc.
