Peak 602VL User's Guide Peak 602VL User's Guide

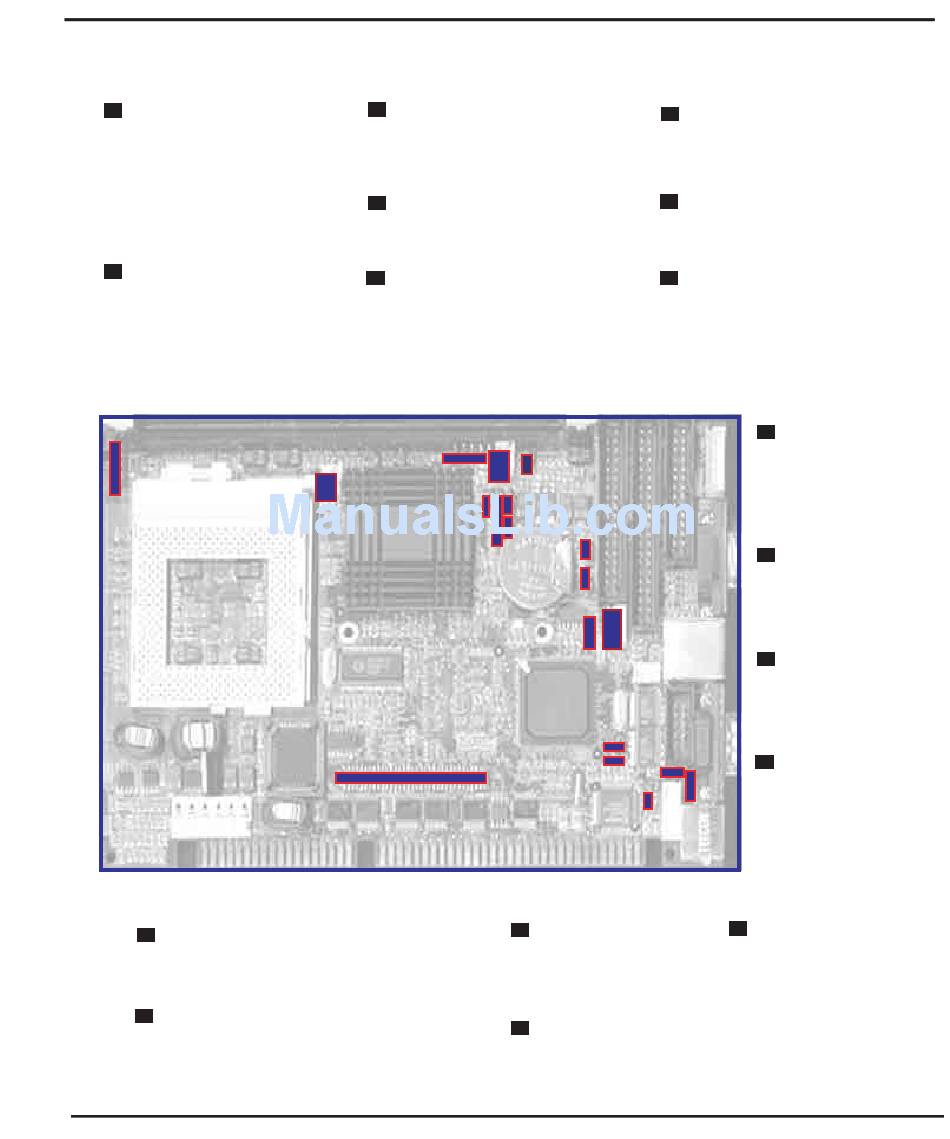

PEAK 602VL Jumper Setting Quick Reference
IR:
PIN 1 VCC
PIN 2 CIRR
PIN 3 IRRX
PIN 4 GND
PIN 5 IRTX
JP10: SPEAKER CONNECTOR
PIN 1 VCC
PIN 2 GND
PIN 3 GND
PIN 4 SPEAKER
JP10
1
JP17: LAN SPEED LED CONNECTOR
PIN 1 3.3V Power
PIN 2 LAN Speed Signal
JP18: LAN LINK/ACT LED CONNECTOR
PIN 1 LINK Signal
PIN 2 Active Signal
Jumpers Switch and Connectors
JP12: TEMPERATURE
CONNECTOR
PIN 1 RESISTOR INPUT
PIN 2 RESISTOR INPUT
JP8: EXTEND SMI CONNECTOR
PIN 1 GND
PIN 2 EXTEND SMI INPUT
JP5: KEYBOARD LOCK
PIN 1 VCC
PIN 2 NC
PIN 3 GND
PIN 4 KEYBOARD LOCK
PIN 5 GND
IR
1
CPU FAN
1
JP8
JP2
JP12
1
1 S2
1 1 1
JP7
1
JP6
1 JP11
JP5
1
JP9
AT /
1 1
ATX
JP3
JP17
1
JP1
1
JP18
1
JP15
JP1: RTC RESET
1-2 Short NORMAL
2-3 Short RTC RESET
JP15: LAN ISOLATOR
ON LAN ISOLATOR
OFF NORMAL
Rev. B0 Rev. B0 Dec. 2000 Dec. 2000
S2: CASEOPEN
PIN 1 GND
PIN 2 CASEOPEN
JP7: POWER ON/OFF SWITCH
PIN 1 POWER ON/OFF
PIN 2 GND
JP6: HDD LED
PIN 1 VCC
PIN 2 IDE ACT
JP11:
SUSPEND LED
CONNECTOR
PIN 1 GND
PIN 2 SUSLED
JP9:
RESET CONNECTOR
PIN 1 GND
PIN 2 HW RESET
AT/ATX
Power Select Jumper:
1-2 AT POWER
2-3 ATX POWER
JP3:
1
ATX Power Connector:
1
( 3 Pin signals
SM
connect to Backplane )
Bus
PIN 1 5VSB
PIN 2 GND
PIN 3 Wake Up Signal
SM-BUS CONNECTOR
PIN 1 SM BUS CLOCK
PIN 2 NC
PIN 3 GND
PIN 4 SM BUS DATA
PIN 5 VCC
