Page 1: Instruction Manual
ST121UTPHDMI ST121UTPHDGB ST121UTPHDEU Instruction Manual HDMI Video Extender HDMI Audio/Video Extender over Cat5 with RS232 and IR Control Manual Revision:11/26/2010 For the most up-to-date information, please visit www.startech.com... - Page 2 Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
-
Page 3: Table Of Contents
Table of Contents Introduction .............. 1 Packaging Contents............. 1 System Requirements ............1 Front View- Transmitter/Receiver Unit ......... 2 Rear View- Transmitter/Receiver Unit ........2 Installation ..............3 Hardware Installation ............3 Specifications ............5 Technical Support ............ 6 Warranty Information ..........6... -
Page 4: Introduction
Introduction The ST121UTPHDMI HDMI Audio Video Extender over Cat5 with RS232 and IR extends an HDMI source signal up to 80 meters (260 feet) using a standard Cat5 or better UTP/STP cable, giving you the freedom to optimize the placement of your display without sacrificing image quality. Compliance with High Speed HDMI (1.3) as well as HDCP ensures that even the latest... -
Page 5: Front View- Transmitter/Receiver Unit

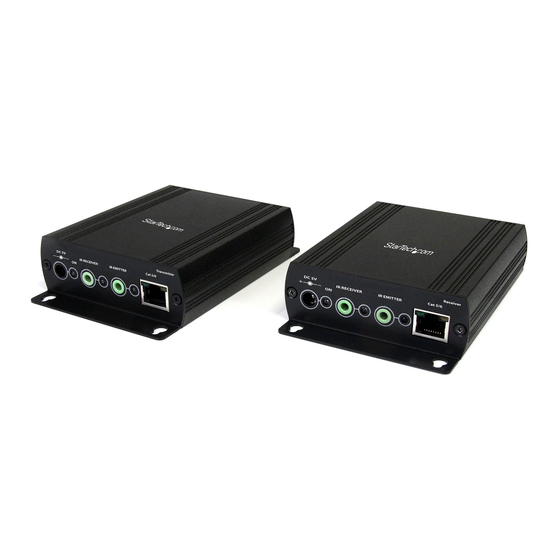

Front View- Transmitter/Receiver Unit Rear View- Transmitter/Receiver Unit... -
Page 6: Installation
Installation Make sure all devices are turned off before beginning installation. Hardware Installation 1. Connect an HDMI cable from the video source device (i.e. computer, game console, PVR/DVR) to the “In” HDMI connector on the Transmitter unit. 2. OPTIONAL: If also transmitting IR control over Cat5, connect the IR emitter and receiver probes to the corresponding connectors on the Transmitter unit. -
Page 7: Driver Installation
7. If Step 2 previously performed, connect and position the IR emitter/ receiver probes appropriately from the Receiver unit. 8. If Step 3 previously performed, connect a male DB9 serial cable from the Receiver unit to the RS232 serial device. The male pinout on the DB9 connector is identical to that of the pinout on the male cable plugged into the Transmitter unit. -
Page 8: Specifications
Specifications ST121UTPHDMI ST121UTPHDGB ST121UTPHDEU Video Signal High Speed HDMI (1.3) 1 x HDMI type A female 1 x RJ45 female Connectors 1 x DB9 female (Transmitter) 2 x IR probe connector 1 x DC Power 1 x HDMI type A female... - Page 9 ST121UTPHDMI ST121UTPHDGB ST121UTPHDEU Supported Protocols RS232 Maximum Serial Baud Rate 115, 200 Kbps IR Interface Bi-directional 38Khz / ±10° / 5m Power Adapter 5VDC, 2000mA, center positive Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)
-
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech. com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products,...
