MadgeTech RFRTDTemp2000A Product User Manual

Precision rtd based temperature data logger
Hide thumbs Also See for RFRTDTemp2000A:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

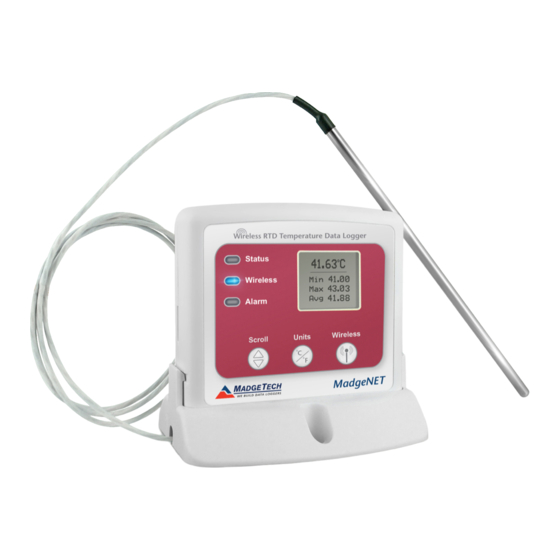

RFRTDTemp2000A
Precision RTD Based Temperature
Data Logger
PRODUCT
USER GUIDE
To view the full MadgeTech product line, visit our
website at madgetech.com.

TABLE OF CONTENTS

RTD Probe Sold Separately

Advertisement

Table of Contents
loading

Related Manuals for MadgeTech RFRTDTemp2000A

Summary of Contents for MadgeTech RFRTDTemp2000A

  • Page 1: Table Of Contents

    PRODUCT TABLE OF CONTENTS USER GUIDE 2 Quick Start Steps 3 Product Overview To view the full MadgeTech product line, visit our website at madgetech.com. 4 Software Installation 5 Activating & Deploying the Data Logger 5 Channel Programming 6 Product Maintenance...

  • Page 2: Quick Start Steps

    QUICK START STEPS Product Operation Product Operation (Wireless) (Plugged In) Install the MadgeTech 4 Software and USB Drivers Install the MadgeTech 4 Software and USB Drivers onto a Windows PC. onto a Windows PC. Connect the RFC1000 wireless transceiver (sold Confirm the data logger is not in wireless mode.

  • Page 3: Product Overview

    RFRTDTemp2000A PRODUCT OVERVIEW The RFRTDTemp2000A is a wireless precision RTD based temperature data logger, featuring a convenient LCD screen to display current readings, minimum, maximum and average statistics, battery level and more. User programmable alarms can be configured to activate an audible buzzer and LED alarm indicator, notifying the user when the temperature levels are above or below the user set threshold.

  • Page 4: Software Installation

    2. Locate and unzip the downloaded file (typically you can do this by right clicking on the file and selecting Extract). 3. Open the MTInstaller.exe file. 4. You will be prompted to select a language, then follow the instructions provided in the MadgeTech 4 Setup Wizard to finish the MadgeTech 4 Software installation.

  • Page 5: Activating & Deploying The Data Logger

    Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. Any MadgeTech data logger or RFC1000 wireless transceiver that is on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another.

  • Page 6: Product Maintenance

    RFRTDTemp2000A PRODUCT MAINTENANCE Battery Ordering Information Replacement • 901431-00 — RFRTDTEMP2000A • 901383-00 — RFC1000 Materials: U9VL-J Battery or any 9 V Battery • 901388-00 — RFC1000-CE 1. On the bottom of the data logger, open the battery • 901389-00 — RFC1000-IP69K compartment by pulling in on the cover tab.

  • Page 7: Troubleshooting

    If possible, try switching the battery with a new 9V lithium. • Ensure that the MadgeTech 4 Software is being used, and that no other MadgeTech Software (such as MadgeTech 2, or MadgeNET) is open and running in the background. MadgeTech 2 and MadgeNET are not the compatible with the RFRTDTemp2000A.

  • Page 8: Compliance Information

    RFRTDTemp2000A COMPLIANCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Need Help

    • Refer to the Troubleshooting section of this document. • Visit our Knowledge Base online at madgetech.com/resources. • Contact our friendly Customer Support Team at (603) 456-2011 or support@madgetech.com. MadgeTech 4 Software Support: • Refer to the built-in help section of the MadgeTech 4 Software.
