Page 1: Table Of Contents
PRODUCT TABLE OF CONTENTS USER GUIDE 2 Quick Start Steps 3 Product Overview To view the full MadgeTech product line, visit our website at madgetech.com. 4 Software Installation 5 Activating & Deploying the Data Logger 5 Channel Programming 6 Product Maintenance... -
Page 2: Quick Start Steps
QUICK START STEPS Product Operation Product Operation (Wireless) (Plugged In) Install the MadgeTech 4 Software and USB Drivers Install the MadgeTech 4 Software and USB Drivers onto a Windows PC. onto a Windows PC. Connect the RFC1000 wireless transceiver (sold Confirm the data logger is not in wireless mode. -

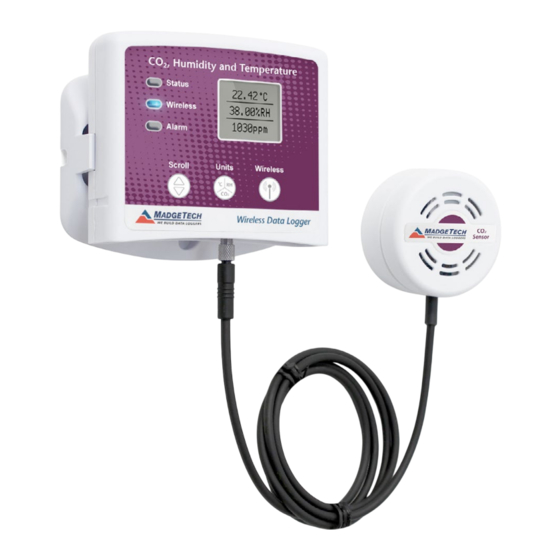

Page 3: Product Overview
Push and hold this button for 5 seconds to activate or deactivate wireless communication. Users have the ability to manually reset the statistics within the device to zero without needing to use the MadgeTech 4 Software. Any data recorded up to that point is recorded and saved. To apply the manual reset, press and hold the scroll key down for three seconds. -
Page 4: Software Installation
2. Locate and unzip the downloaded file (typically you can do this by right clicking on the file and selecting Extract). 3. Open the MTInstaller.exe file. 4. You will be prompted to select a language, then follow the instructions provided in the MadgeTech 4 Setup Wizard to finish the MadgeTech 4 Software installation. -
Page 5: Activating & Deploying The Data Logger
Different wireless channels may be used to create multiple networks in one area, or to avoid wireless interference from other devices. Any MadgeTech data logger or RFC1000 wireless transceiver that is on the same network is required to use the same channel. If all of the devices are not on the same channel, the devices will not communicate with one another. -
Page 6: Product Maintenance
Depending upon device exposure to extreme parameters and frequency of use, MadgeTech suggests performing the CO2 zero reset as frequent as needed for application accuracy. CO2 channel calibrated accuracy: 70ppm ± 5% of range, add 8ppm per day of continuous monitoring from zero reset. -
Page 7: Troubleshooting
If possible, try switching the battery with a new 9V lithium. • Ensure that the MadgeTech 4 Software is being used, and that no other MadgeTech Software (such as MadgeTech 2, or MadgeNET) is open and running in the background. MadgeTech 2 and MadgeNET are not the compatible with the RFCO2RHTemp2000A. -
Page 8: Compliance Information
RFCO RHTemp2000A COMPLIANCE INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Need Help
• Refer to the Troubleshooting section of this document. • Visit our Knowledge Base online at madgetech.com/resources. • Contact our friendly Customer Support Team at (603) 456-2011 or support@madgetech.com. MadgeTech 4 Software Support: • Refer to the built-in help section of the MadgeTech 4 Software.
